Aluminum Profile Connection Methods: A Complete Guide
Discover the most effective ways to connect aluminum profiles, from basic brackets to advanced internal systems.
Key Connection Methods:
1.Angle Brackets - Basic & Reliable
• Simple T-slot installation
• Cost-effective solution
• Perfect for 90° frames
2.T-slot Bolts - Maximum Flexibility
• Adjustable positioning
• Modular design
• Easy modifications
3.Internal Connectors - Hidden Strength
• Clean, screw-free appearance
• Maintains structural integrity
• Ideal for premium applications
Quick Guide:
• Budget projects → Angle brackets
• Flexible designs → T-slot systems
• Premium looks → Internal connectors
We provide expert connection solutions tailored to your specific needs.
Contact our engineers for technical support!

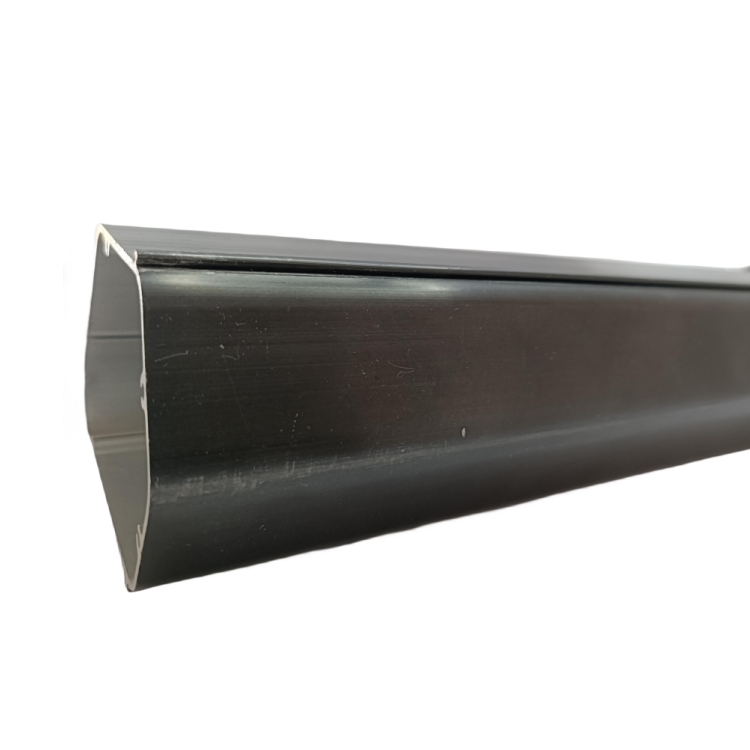

Black anodized aluminum tubes offer the perfect combination of lightweight structural strength, superior corrosion resistance, and a premium matte or glossy aesthetic. The anodizing process chemically transforms the aluminum surface into a durable, scratch-resistant oxide layer. This ensures the brackets can support heavy components without rusting, peeling, or degrading over time.
We primarily utilize high-grade architectural and structural aluminum alloys:
6063-T5/T6 Aluminum: The best choice for brackets requiring complex shapes, smooth surface finishes, and excellent anodizing color consistency.
6061-T6 Aluminum: Recommended for heavy-duty structural brackets, mounting systems, and industrial frames that demand maximum tensile strength and load-bearing capacity.
For standard indoor mounting brackets, a coating thickness of 8–12 μm (microns) is sufficient. For harsh outdoor environments, automotive chassis, or marine mounting brackets, we offer heavy-duty anodizing up to 15–25 μm to ensure maximum UV protection and wear resistance.
Thanks to their durability and sleek look, these tubes are widely used across multiple sectors:
Electronics & AV Equipment: LED display mounting brackets, projector mounts, and camera rigs.
Automotive & Aerospace: Custom vehicle roof rack brackets, sensor mounts, and interior frameworks.
Industrial Automation: Sensor support stands, control panel brackets, and conveyor rail mounts.
Solar & Outdoor Gear: Solar panel mounting brackets, outdoor equipment frames, and marine hardware.
Standard black dyes can fade over time when exposed to intense sunlight. However, for outdoor bracket applications, we use UV-stabilized organic dyes or inorganic metal salts (two-step electrolytic coloring). This specialized process ensures that your black anodized brackets maintain their deep, rich black finish even after years of direct exposure to sunlight and harsh weather.
Yes. We offer full precision CNC machining services before the anodizing process. We highly recommend drilling, slotting, and cutting-to-length prior to anodizing so that all exposed edges and internal hole walls are completely coated and protected against corrosion.
Cutting Tolerance: Down to $\pm0.2\text{mm}$
Machining Capabilities: Laser cutting, hole drilling, tapping, countersinking, and milling.
Welding anodized aluminum directly is not recommended because the aluminum oxide layer has a much higher melting point than the underlying aluminum, which can ruin the weld quality. Additionally, welding will burn off the black finish around the joint. If welding is required for your bracket assembly, you should weld the raw aluminum first and then send the entire fabricated bracket for black anodizing.
We supply a wide range of profiles to fit any bracket design:

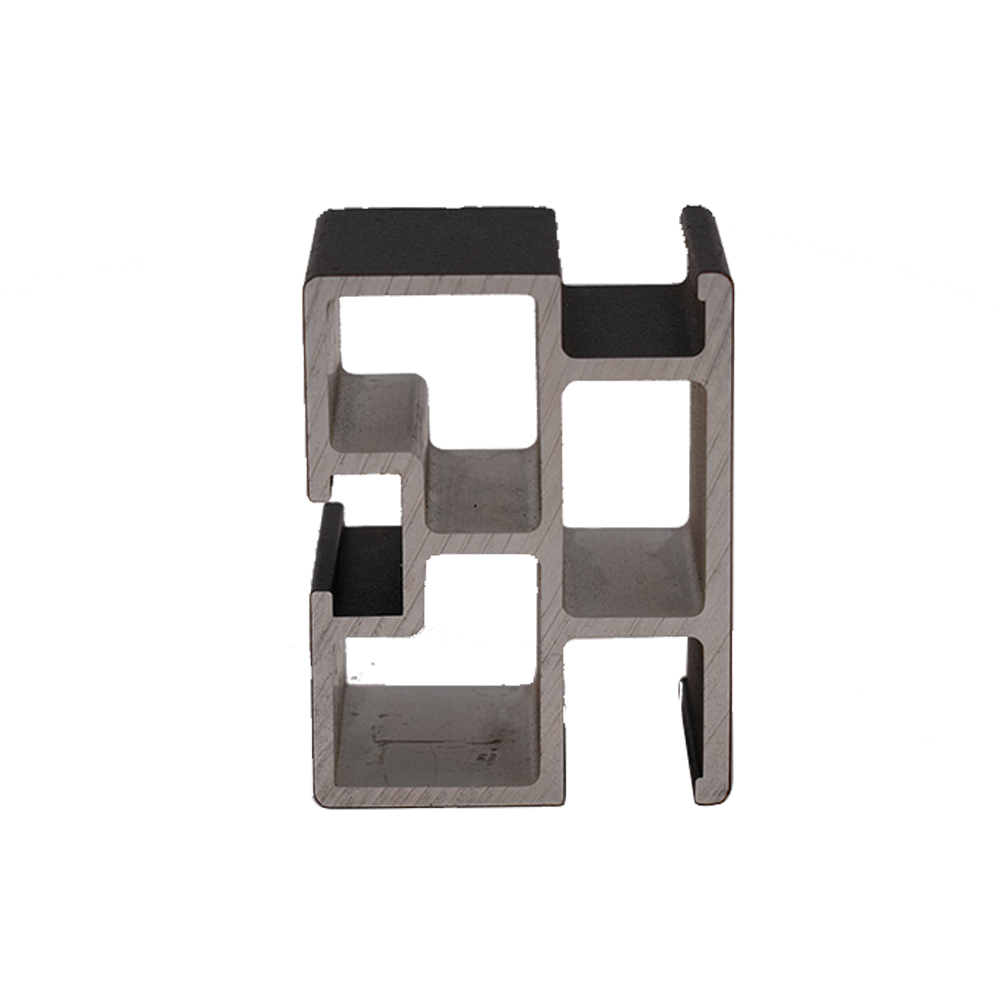

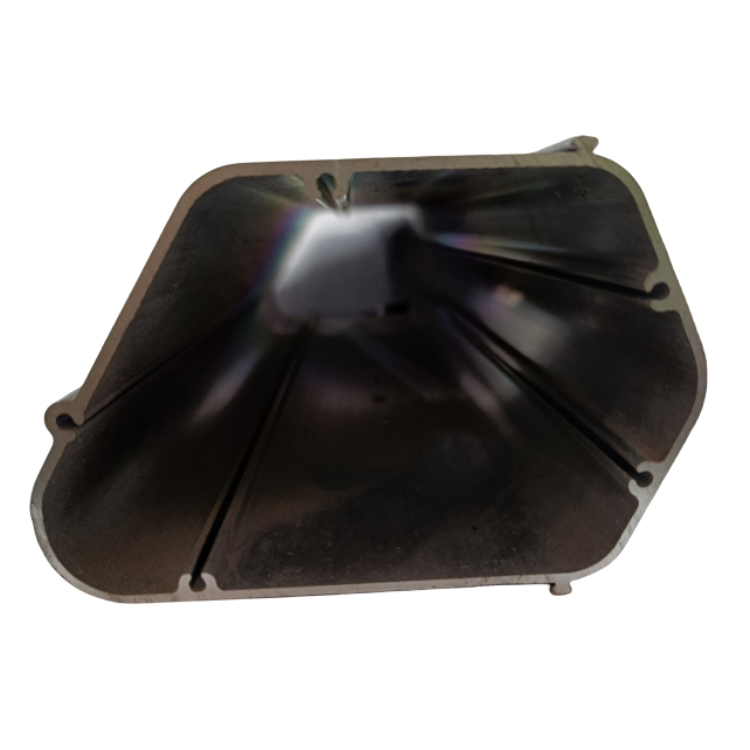

Shapes: Round, square, rectangular, and custom oval/streamlined extrusion profiles.
Dimensions: Outer diameters (OD) from 6mm to 150mm with wall thicknesses ranging from 1mm to 8mm.
