RC-A
Red Cherry
RC-A-141
Boost thermal efficiency in your industrial systems with our stainless steel, high-frequency welded finned tube. As a core component of any finned tube heat exchanger, it is engineered to maximize heat transfer in demanding applications like industrial boilers, economizers, and process heaters. The durable stainless steel construction offers superior resistance to corrosion and high temperatures, ensuring long-lasting performance.
The key to optimal performance lies in selecting the appropriate fin type for your specific operating conditions. Our range includes:

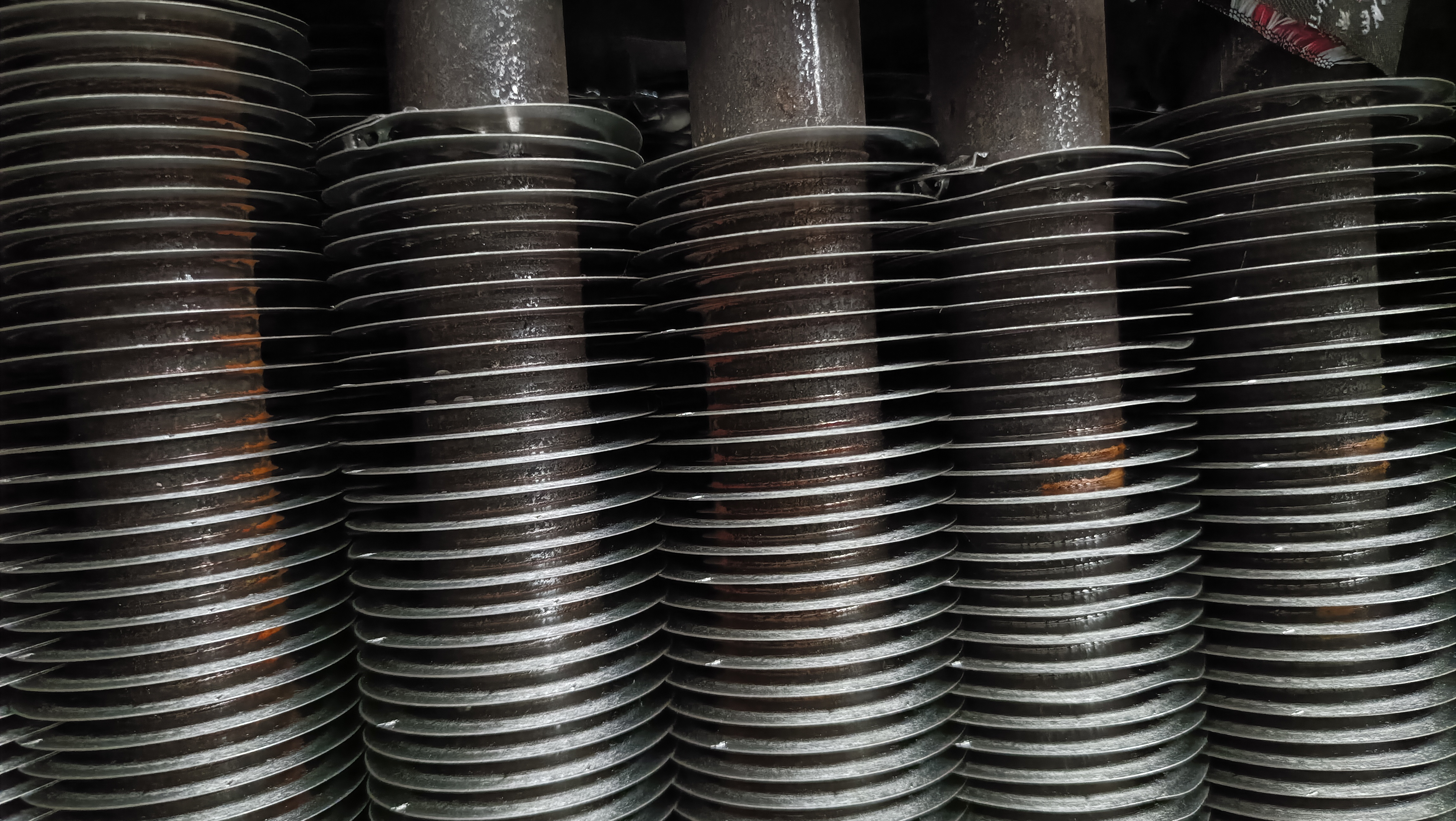

G-Type (Wrapped Fin): The fin is mechanically wrapped under tension onto the base tube. It's a cost-effective general-purpose option, but with a lower contact strength, making it suitable for less corrosive environments.

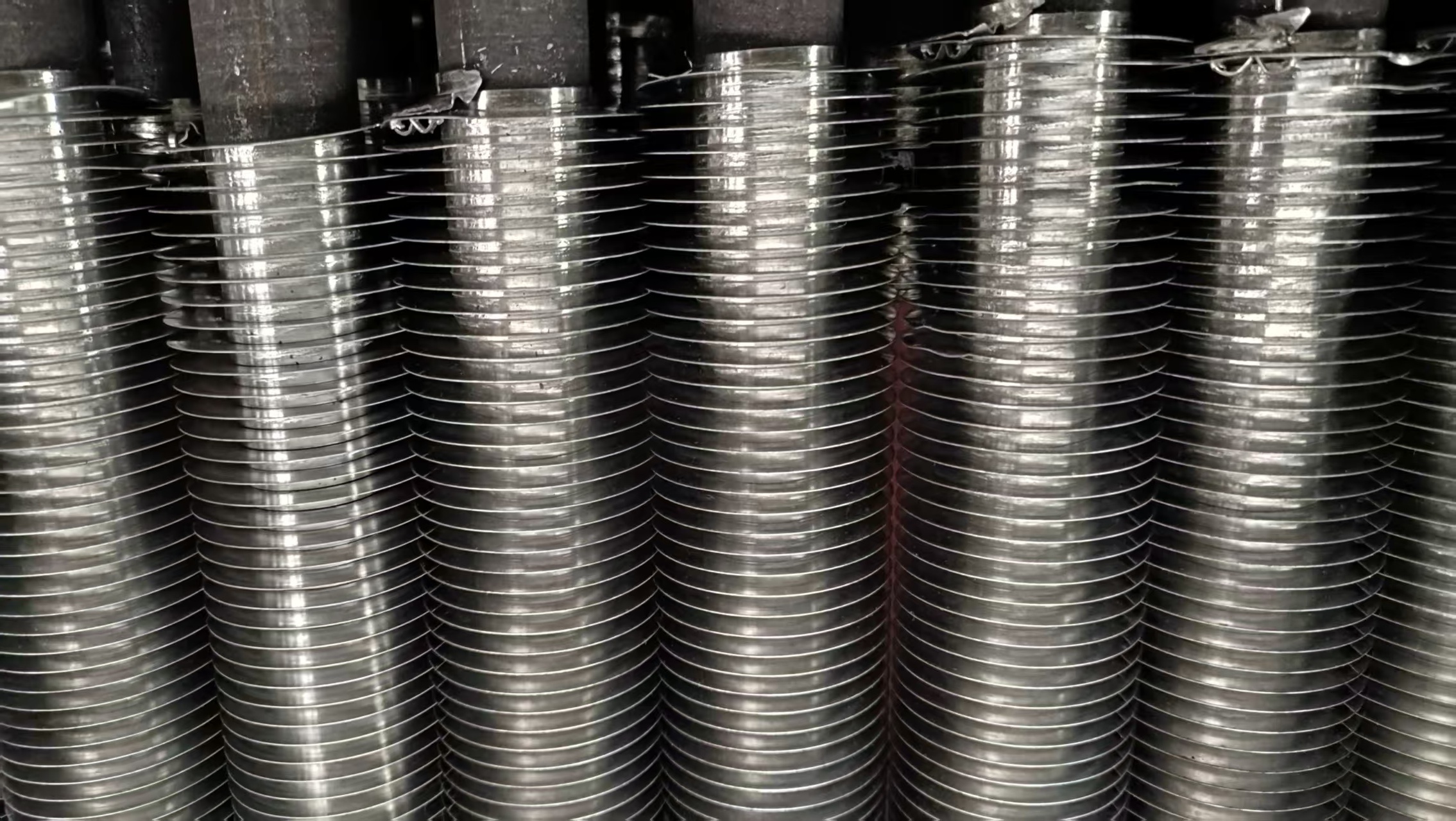

L-Type (Embedded Fin): The fin base is embedded into a groove machined on the tube. This offers a robust mechanical bond and excellent heat transfer, ideal for applications with thermal cycling and moderate temperatures.

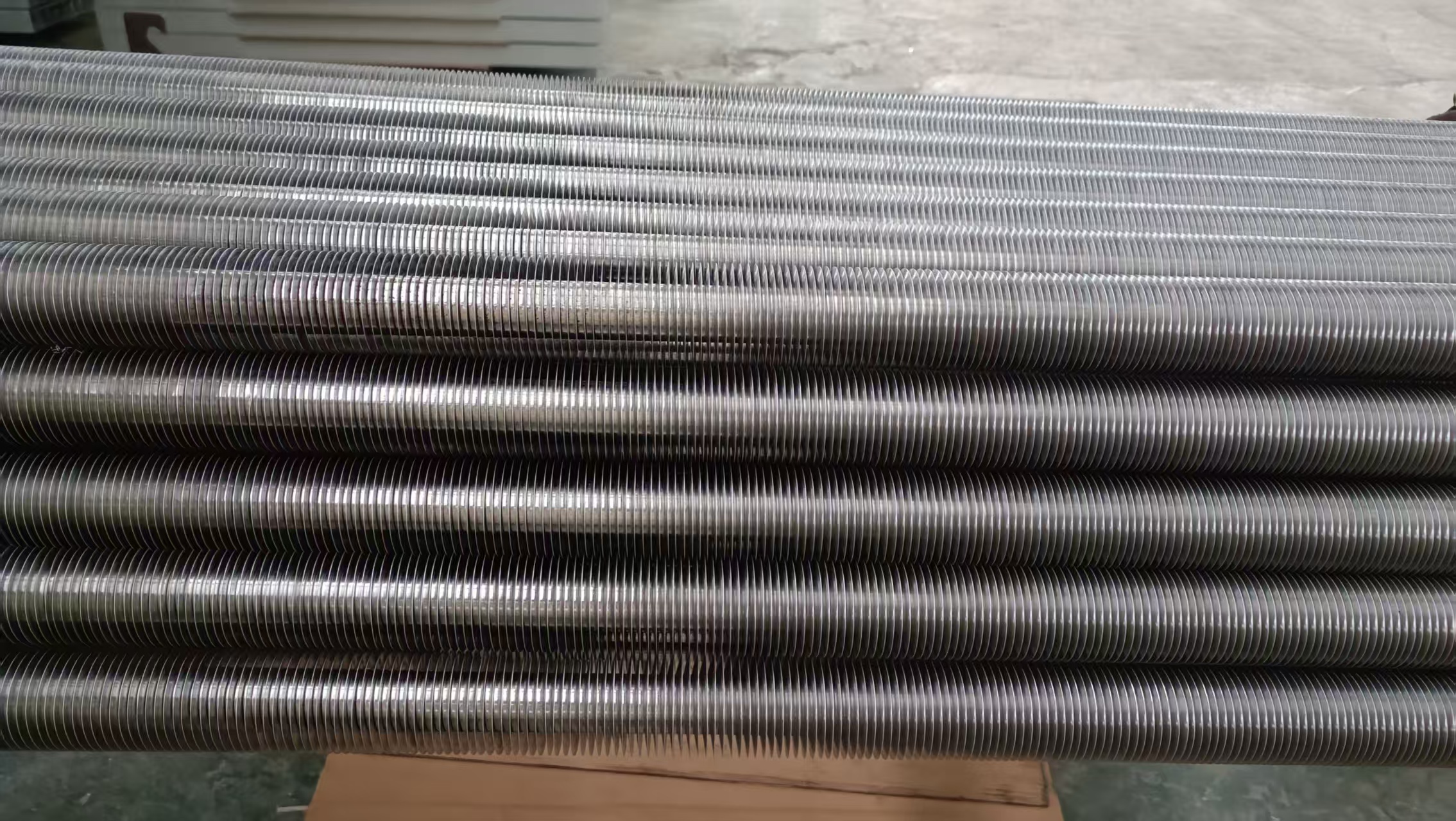

KL-Type (Knurled & Embedded L-Fin): An advanced version of the L-type. The fin base is knurled before being embedded, creating an even tighter fit that minimizes air gaps and significantly enhances heat conduction and durability under stress.

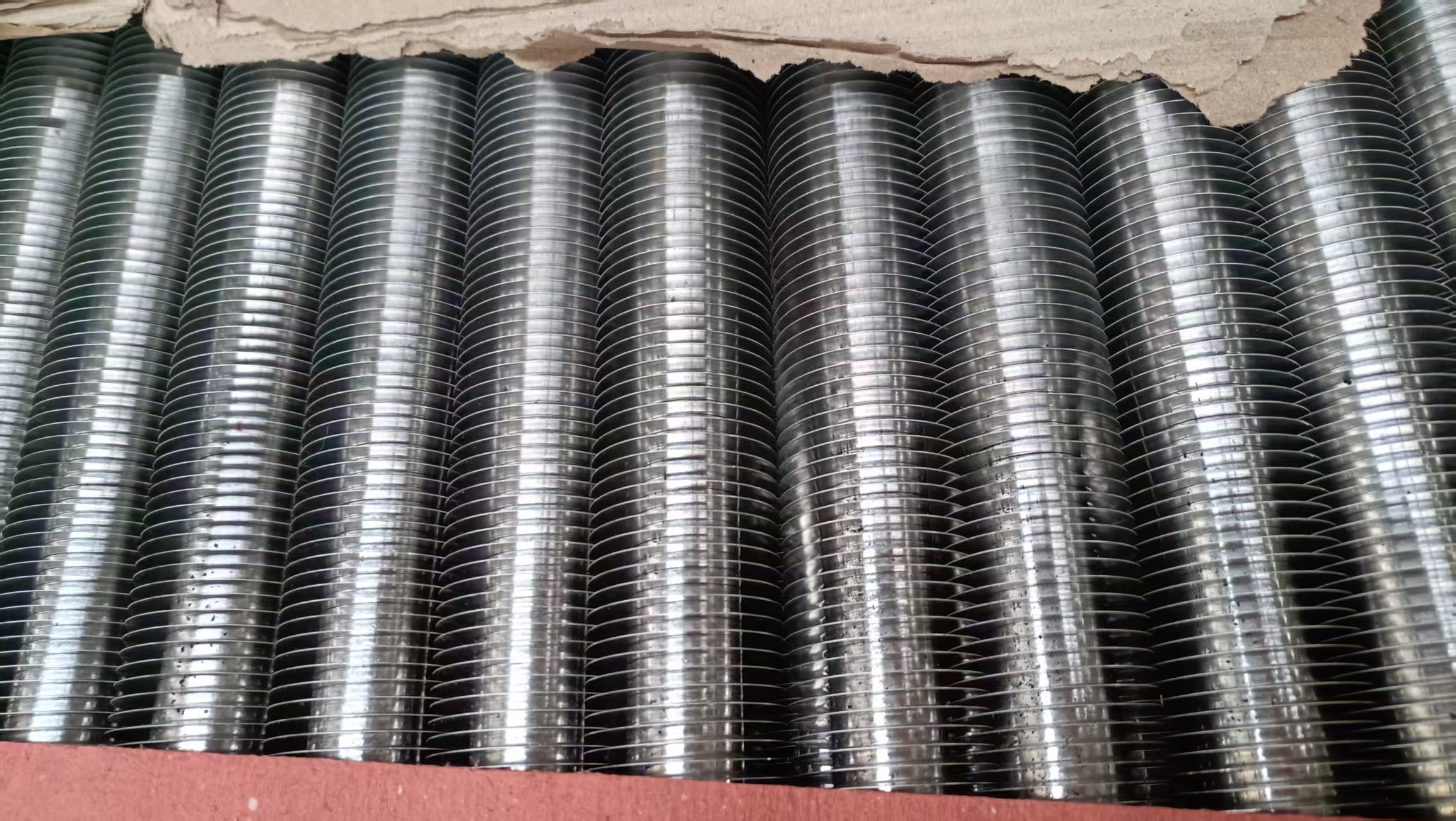

DR-Type (Extruded Fin):The fin is formed by extruding a sleeve of aluminum or copper over a steel core tube, creating a seamless, metallurgical bond. This type provides the highest level of corrosion protection and is the premier choice for highly aggressive atmospheres.
Why Our High-Frequency Welded Tubes Excel
Our manufacturing process uses high-frequency welding (HFW) to create a continuous, metallurgical bond between the fin and tube. This results in a finned tube heat exchanger component with minimal thermal resistance, superior structural integrity, and the ability to withstand intense thermal cycling in industrial boiler systems, guaranteeing efficiency and reliability.
Advantages of our finned tubes.
These are specialized bimetallic composite finned tubes with a new design, protected by three patents: structural patent, design patent, and utility model patent.
1. Parameters such as fin pitch, fin height, material, and base tube thickness are fully customizable.
2. High heat transfer performance and efficiency (5%-20% higher heat transfer performance).
3. 5% lower price than the market.
4. Widely marketed both domestically and internationally.

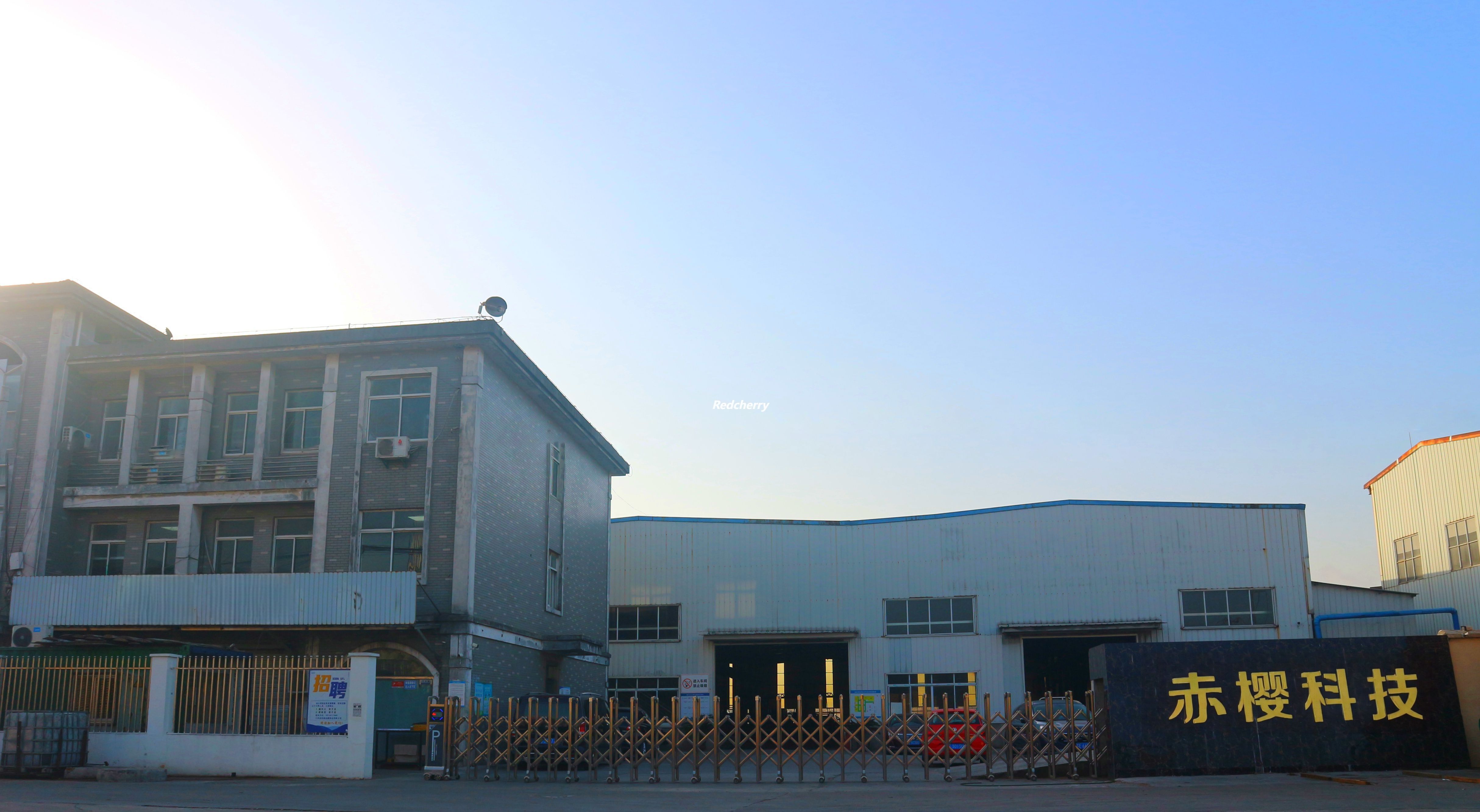

Suzhou Chiying Technology Co., Ltd. is a set of design, research and development, production, processing, sale as one of the high-tech enterprises focusing on the field of metal, the current factory and office area is more than10,000 square meters, > 60 employees.

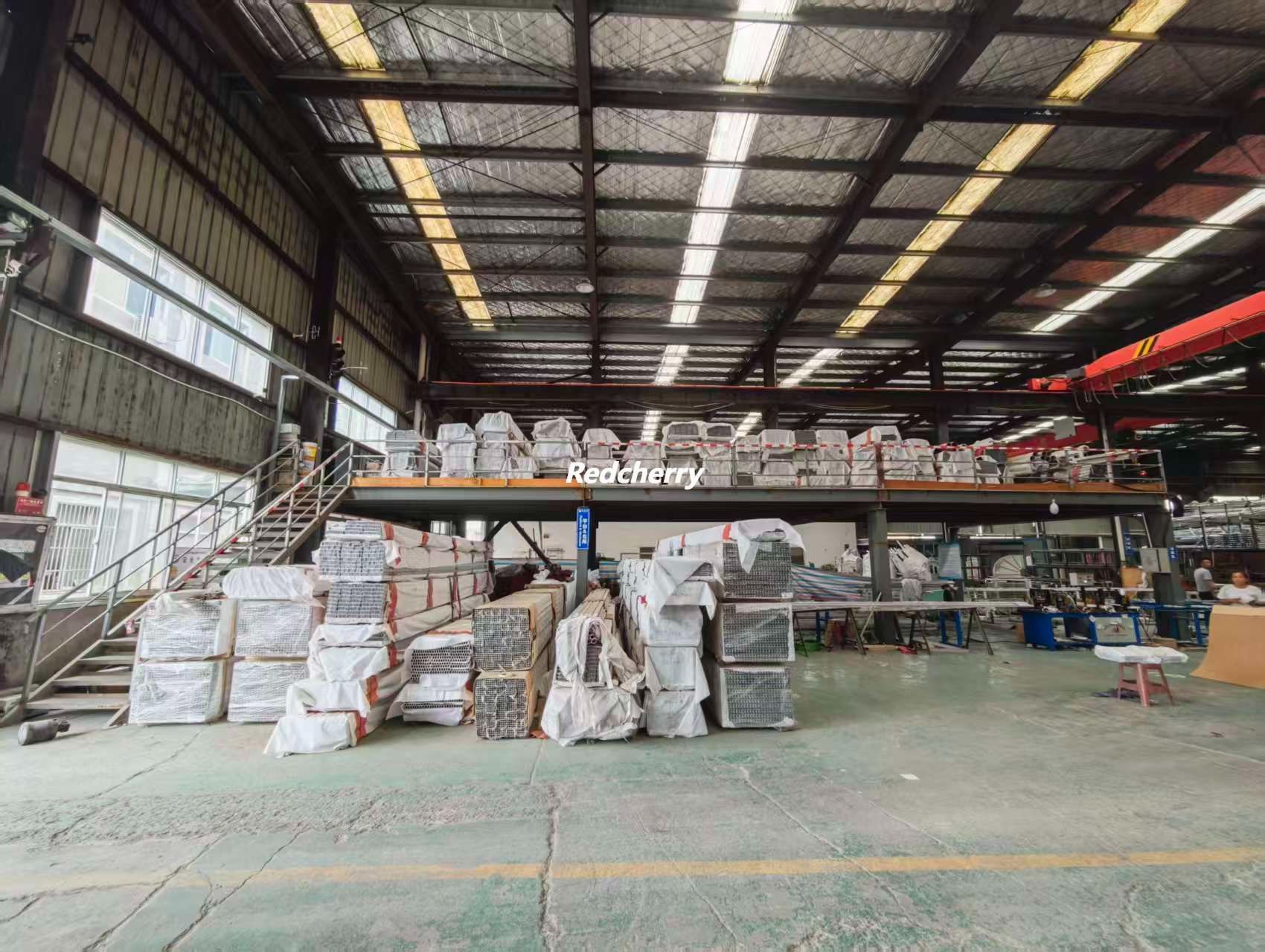

There are 600 tons,1000 tons,2000 tons of 4 advanced aluminum alloy extrusion(aluminum extrusion)production lines, 2 drawing lines, 5 advanced finned tube production lines, 2 sets of CNC equipment. Production and processing of aluminum profiles, production equipment, aluminum furniture and other metal products. And providing large, small oxidation, post-processing and other services, can maximize the satisfaction of customers.
Certificate Display
 |  |
 |  |
Q: How many machines are there?
A: 5 production lines.
Q: What is the maximum tube diameter you can produce?
A: G tube is 50.8mm + fin tube 32mm = 82.8mm
Q: What is the maximum tube length you can produce?
A: 24 meters
Q: How do you test your fins?
A: In addition to the regular appearance and size tests, there are resistance and drag tests.
Q: What is the output?
A: One machine produces 400 meters in 12 hours.
Q: What types of fin tubes do you produce?
A: G type, L type, K type, KL type
Q: What is your fin tube packaging procedure?
A: Usually, we layer the products with film and install wooden boxes in iron frames. We can also package according to the requirements specified by customers.
