Aluminum extrusions serve as the structural backbone for countless industries, ranging from aerospace engineering and automotive manufacturing to modular furniture and architectural framing. As designers and engineers look to optimize their projects, understanding the relationship between the geometry of an aluminum profile and its physical performance becomes essential. Whether you are building a high-precision aluminum frame or designing a heavy-duty industrial assembly, the interplay between section radius and wall thickness is the primary determinant of success.
The section radius and wall thickness of an aluminum profile are critical design parameters that directly dictate the structural integrity, weight, and manufacturing feasibility of the part. Proper selection of these dimensions ensures that your aluminum extrusions offer the necessary strength-to-weight ratio for your specific application while remaining within the tolerance capabilities of the extrusion process.
Achieving the perfect balance between material efficiency and structural performance requires a deep dive into how these geometric properties influence load-bearing capacity and material flow. By refining your understanding of these factors, you can reduce material waste, simplify assembly processes, and improve the longevity of your aluminum frame designs. In this comprehensive guide, we will explore the technical nuances of profile design, helping you make informed decisions for your next project.
Aluminum profile weight per meter
Aluminum profile load-bearing
Aluminum profile application

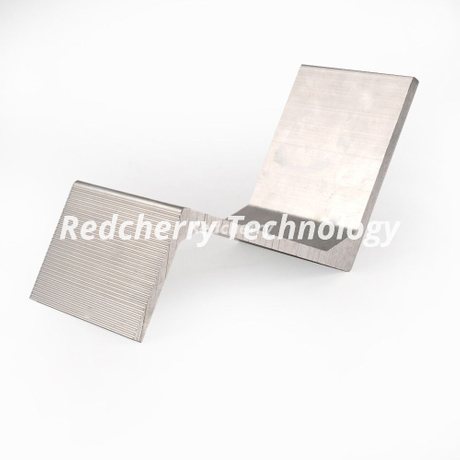

Aluminum profile: Section Radius and Wall Thickness
The weight per meter of an aluminum profile is calculated by multiplying the cross-sectional area of the profile by the density of the aluminum alloy used, typically resulting in a figure that accounts for both the solid material and the hollow voids within the design.
To accurately determine the weight of your aluminum extrusions, you must first understand the geometric cross-section. Because aluminum is a lightweight material with a standard density (usually around 2.7 grams per cubic centimeter), the weight per unit length is essentially a function of how much material occupies the cross-section. Designers often use Computer-Aided Design (CAD) software to calculate the exact area of the section, which allows for precise weight estimation before the manufacturing phase begins.
When you are designing an aluminum frame, minimizing weight while maintaining strength is a common objective. By adjusting the wall thickness of an aluminum profile, engineers can significantly influence the weight per meter. A profile with thinner walls will naturally be lighter, but it must be carefully engineered to ensure that it does not compromise the structural stability of the overall assembly. It is a balancing act of material science and geometric optimization.
Below is a conceptual representation of how wall thickness influences weight in standard profiles:
| Profile Type | Wall Thickness (mm) | Approximate Weight (kg/m) |
| Lightweight Series | 1.2 - 1.5 | 0.4 - 0.6 |
| Standard Industrial | 1.8 - 2.5 | 0.8 - 1.2 |
| Heavy-Duty Structural | 3.0+ | 1.5 - 2.5+ |
Understanding these weight parameters is crucial for logistical planning and structural calculations. If your aluminum profile is intended for a moving part, such as a robotic arm or a sliding track, the weight per meter becomes even more critical to reduce inertia and power consumption.
The load-bearing capacity of an aluminum profile is primarily defined by its moment of inertia and section modulus, which are heavily dependent on the profile’s shape, wall thickness, and the physical properties of the chosen aluminum alloy.
When an aluminum profile is subjected to loads, it experiences internal stresses that can lead to deflection, bending, or structural failure. Load-bearing is not just about the thickness of the material; it is about how that material is distributed relative to the neutral axis of the profile. A well-designed aluminum extrusions product maximizes the distance of the material from the center of the cross-section to increase stiffness and resistance to bending forces.
Engineers typically categorize load-bearing requirements into three main types: static, dynamic, and impact loads. When selecting an aluminum frame component for a heavy-duty task, you must ensure the profile’s design can handle the maximum expected load without exceeding the yield strength of the alloy. Failure to do so will result in permanent deformation, which compromises the safety of the entire structure.
To maximize load-bearing capacity without excessively increasing the profile weight, consider the following strategies:
Incorporating internal ribs or stiffeners within the aluminum profile to prevent local buckling.
Utilizing T-slot or V-slot geometries that provide inherent structural reinforcement.
Choosing high-strength alloys such as 6061 or 6063 T6 to provide superior yield strength.
The application of an aluminum profile is dictated by its specific cross-sectional geometry, which determines its suitability for architectural, industrial, or decorative use cases.
Because aluminum extrusions are incredibly versatile, they are found in almost every sector of modern industry. From small-scale furniture components to massive industrial factory assembly lines, the aluminum profile is chosen based on its ability to satisfy specific functional requirements. For instance, in an aluminum frame used for modular housing, the priority is high structural load capacity and thermal efficiency, whereas for a consumer electronics housing, the focus is on aesthetics and heat dissipation.
When selecting a profile for your specific application, consider the environmental conditions. Aluminum is naturally corrosion-resistant, making it ideal for outdoor applications like solar panel mounting or greenhouse frames. However, if your aluminum extrusions will be exposed to harsh chemicals or marine environments, additional surface treatments such as anodizing or powder coating are highly recommended to extend the lifespan of the profile.
Common industries utilizing these materials include:
Automotive: Chassis reinforcement and cabin structures.
Construction: Curtain walls, window frames, and door systems.
Automation: Conveyor systems, robotics frameworks, and sensor mounts.
Electronics: Heat sinks and protective enclosures for internal circuitry.
The section radius and wall thickness are the two most important technical variables in aluminum profile design; the radius dictates how material flows during the extrusion process, while the wall thickness determines the structural rigidity and thermal properties of the final part.
The section radius (or fillet radius) is essential for the longevity of the extrusion die and the uniformity of the metal flow. During the extrusion process, the aluminum is pushed through a die at high pressure. Sharp corners in a profile can cause localized stress concentrations, leading to uneven material distribution and potential die failure. By incorporating a radius into the inner and outer corners of an aluminum profile, engineers ensure a smoother flow, which results in a higher-quality surface finish and more consistent mechanical properties throughout the extruded length.
Wall thickness, on the other hand, is the primary lever for tuning the stiffness of an aluminum frame. However, there is a design limit known as the "minimum wall thickness," which depends on the complexity of the profile and the extrusion ratio. If a wall is designed to be too thin, the aluminum may not fill the die cavity completely, leading to defects. Conversely, if the walls are too thick, the cooling rate of the profile becomes uneven, which can lead to internal stresses and warping after the extrusion has left the press.
To achieve the best results, designers should follow these guidelines:
Uniformity: Aim for consistent wall thickness throughout the aluminum profile to prevent bowing and distortion during cooling.
Fillet Radii: Use the largest possible corner radii to simplify the manufacturing process and reduce cost.
Transition Zones: When transitioning from a thick wall to a thin wall, use gradual tapers rather than abrupt changes to maintain structural integrity.
By carefully managing these two geometric variables, you can ensure that your aluminum extrusions meet the highest standards of performance and reliability, providing a stable foundation for your aluminum frame requirements.
