What To Be Aware of with Extrusion Aluminum?

What factors affect extrusion performance?

Extrusion performance is primarily dictated by the synergy between the billet temperature, the speed of the extrusion press, and the complexity of the die geometry used to shape the aluminum extrusion.

The Role of Thermal Management

The temperature of the aluminum billet before it enters the press is the most significant variable in the aluminum extrusion process. If the metal is too cold, the pressure required to force it through the die increases exponentially, potentially leading to equipment wear or breakage. Conversely, excessive heat can cause the aluminum profile to lose its structural definition or develop "hot shortness," where the metal begins to tear at the edges. Maintaining a precise isothermal extrusion environment ensures that the aluminum profile maintains uniform mechanical properties from the front end to the back end of the cycle.

Pressure and Speed Correlation

The speed at which the aluminum extrusion is forced through the die directly impacts the surface finish and internal grain structure. High-speed production is often desired for efficiency, but it introduces friction-induced heat. This friction can alter the Temper of the aluminum profile, leading to inconsistencies in hardness. Engineers must calculate the optimal "exit speed" for each specific aluminum profile shape to ensure that the material flow remains laminar and does not create internal stress pockets that could lead to warping during the cooling phase.

Die Design and Maintenance

The design of the extrusion die determines how the aluminum extrusion handles complex hollows or thin walls. A poorly designed die creates uneven metal flow, where some parts of the aluminum profile move faster than others. This imbalance results in twisting or "waviness." Regular maintenance of these tools is required to prevent the buildup of aluminum oxide, which can scratch the surface of the aluminum profile. High-performance dies are often treated with specialized coatings to reduce friction and extend the lifespan of the tool while maintaining the tight tolerances required by B2B clients.

Technical Performance Metrics

Why surface defects require inspection?

Surface defects must be rigorously inspected because they serve as early indicators of underlying structural weaknesses and can significantly compromise the adhesion of secondary finishes on the aluminum profile.

Identifying Common Flaws

In the world of aluminum extrusion, surface integrity is not merely an aesthetic concern. Common defects such as die lines, pick-up, and pits can act as stress concentrators. Die lines are longitudinal scratches caused by imperfections in the die land, while "pick-up" refers to small particles of aluminum that weld themselves back onto the aluminum profile surface. If these are not identified during the initial aluminum extrusion phase, they can lead to premature fatigue failure when the aluminum profile is subjected to mechanical loads in its final application.

Impact on Anodizing and Powder Coating

For many B2B applications, the aluminum profile undergoes subsequent surface treatments like anodizing or powder coating. Surface defects are often magnified by these processes rather than hidden. For instance, a small pit on an aluminum extrusion can trap air or chemicals during the coating process, leading to "outgassing" or bubbles in the finish. This results in a high rejection rate and increased costs. Thorough inspection ensures that only pristine aluminum profile sections proceed to the finishing stage, protecting the brand's reputation for quality.

Structural Reliability and Safety

Beyond appearance, surface cracks in an aluminum extrusion can be symptomatic of improper cooling or alloy contamination. In structural aluminum profile applications, such as solar racking or architectural framing, these flaws can propagate under environmental stress. Regular visual and automated inspections using laser scanning or eddy current testing allow manufacturers to detect these issues before the aluminum profile leaves the factory. This proactive approach is essential for maintaining safety standards in industrial construction and transport sectors.

Primary Inspection Checklist

1. Visual checking for longitudinal die lines or scoring.

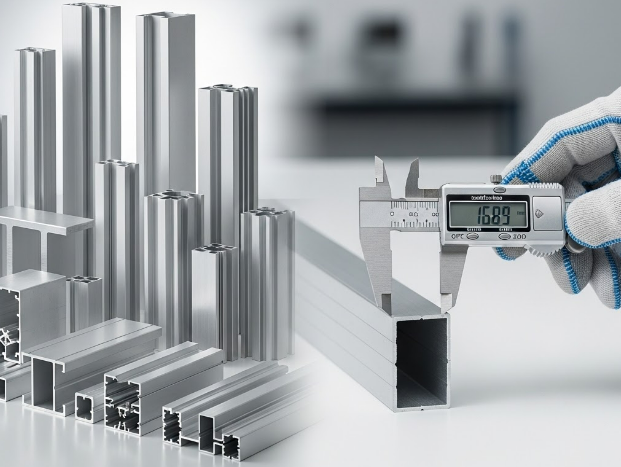

2. Verification of dimensional tolerances using calibrated calipers.

3. Checking for "twist and bow" across the length of the aluminum profile.

4. Monitoring for oxidation or water staining from improper storage.

5. Surface roughness testing to ensure compatibility with powder coatings.

How to choose the right extrusion alloy?

Choosing the right alloy involves evaluating the specific requirements for strength, corrosion resistance, and machinability to ensure the aluminum extrusion performs reliably in its intended environment.

The 6000 Series Dominance

The 6000 series (aluminum-magnesium-silicon) is the most common choice for general aluminum extrusion. Alloys like 6063 are favored for their excellent surface finish and high corrosion resistance, making them ideal for architectural aluminum profile applications. On the other hand, 6061 is preferred when structural strength is the priority. This alloy provides a higher yield strength, which is necessary for heavy-duty aluminum profile components used in truck frames, bridges, and machinery. The choice between these two often comes down to the balance between visual appeal and mechanical load-bearing capacity.

High-Strength and Specialty Alloys

When the application involves extreme environments, such as aerospace or high-stress automotive parts, manufacturers may turn to the 7000 or 2000 series. While these are more difficult to process via aluminum extrusion, they offer a strength-to-weight ratio that surpasses most other metals. However, these high-strength alloys are more susceptible to corrosion and typically require more complex heat treatment cycles. Selecting these for an aluminum profile requires a deep understanding of the end-use stressors to avoid over-engineering or premature material failure.

Matching Alloy to Fabrication

The intended post-extrusion fabrication also dictates the alloy choice. If the aluminum profile needs to be extensively welded, 6000 series alloys are excellent because they retain a significant portion of their strength post-weld. If the aluminum extrusion requires intricate machining, alloys with added elements to improve chip formation might be considered. Designers must consult with the aluminum profile manufacturer early in the process to ensure the selected alloy is compatible with both the aluminum extrusion press capabilities and the subsequent assembly steps.

Comparative Alloy Analysis

Can handling errors damage profiles?

Handling errors can cause immediate and often irreparable damage to an aluminum profile, leading to surface abrasions, permanent bending, or chemical corrosion during transit and storage.

Risks During the Stretch and Cut Phase

Immediately after the aluminum extrusion exits the press, it is in a relatively soft state. During the "stretching" phase, which is designed to straighten the aluminum profile and increase its yield strength, improper tension can cause the metal to snap or deform. Furthermore, if the cooling table is not properly padded, the hot aluminum extrusion can suffer from "mechanical marking." These marks are difficult to remove and often result in the entire aluminum profile batch being scrapped, significantly impacting the production efficiency of the aluminum extrusion line.

Logistics and Packaging Vulnerabilities

Once the aluminum profile has been cut to length and aged to its final hardness, it must be packaged for shipment. Because aluminum is a relatively soft metal compared to steel, aluminum extrusion bundles are prone to "chatter marks" if they are allowed to rub against each other during transport. Using specialized spacers and protective films is mandatory to maintain the surface quality of the aluminum profile. Moisture is another silent enemy; if water is trapped between stacked aluminum extrusion sections, it can cause white rust or heavy oxidation, ruining the finish.

Warehouse Management Practices

In the warehouse, the method of stacking and the environment play a crucial role in preserving the integrity of the aluminum profile. Long aluminum extrusion sections should always be supported at multiple points to prevent "bowing" under their own weight. Vertical storage is often avoided for heavy aluminum profile units unless specialized racking is used. Maintaining a dry, temperature-controlled environment prevents the condensation that leads to surface degradation. Proper training for forklift operators is also essential to prevent impact damage to the ends of the aluminum extrusion bundles.

Best Practices for Handling Aluminum Profiles

1. Use non-marking gloves during manual inspection and packing.

2. Apply protective polyethylene film to sensitive aluminum profile surfaces.

3. Ensure all transport pallets are free of protruding nails or splinters.

4. Store aluminum extrusion batches in a low-humidity, covered environment.

5. Utilize soft slings rather than metal chains when lifting large aluminum profile crates.
