Petrochemical complexes and power plants operate under some of the harshest thermal and mechanical conditions found in modern industry. High operating temperatures, continuous thermal cycling, corrosive environments, and strict efficiency targets all place exceptional demands on heat transfer equipment. In this context, the Finned tube has become a critical component in air cooled heat exchangers, boilers, economisers, and waste heat recovery systems.
Among the many finned tube designs available today, engineers consistently favor solutions that can deliver stable heat transfer performance over long operating cycles while minimizing maintenance risks. This is particularly important in large scale facilities where downtime can result in significant financial losses and safety concerns. As a result, selection criteria for finned tubes in petrochemical and power plant applications are far more stringent than in conventional HVAC or light industrial systems.
G type finned tube designs outperform other finned tube structures in petrochemical and power plant applications because they provide superior fin to tube bonding, exceptional thermal stability, and long term mechanical reliability under high temperature and high vibration conditions.
Not all finned tubes perform equally when exposed to extreme service conditions. While L type finned tube, K type finned tube, and KL type finned tube designs are suitable for many applications, petrochemical and power generation environments demand higher structural integrity and thermal consistency. G type finned tube solutions address these demands through embedded fin technology that ensures permanent mechanical bonding and optimal heat transfer efficiency.
The following sections examine what makes G type finned tube designs unique, why they excel in petrochemical and power plant environments, and how they compare technically with other Finned tube options available in the market.
What Makes G Type Finned Tubes Unique?
Why G Type Finned Tubes Excel in Petrochemical Applications
Applications in Power Plants: From Boilers to Economisers
G Type vs. Other Fin Tube Designs: A Technical Comparison
Custom Manufacturing Options for G Type Finned Tubes
Final Thoughts

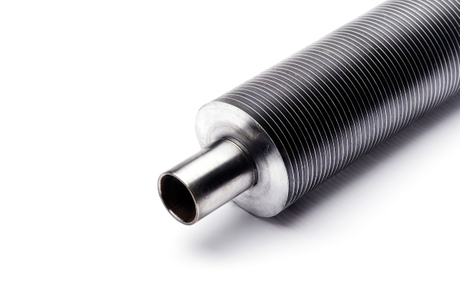

G type finned tube designs are unique because their fins are mechanically embedded into a machined groove in the base tube, creating an exceptionally strong and thermally efficient bond.
Unlike wrapped or knurled fin designs, the G type finned tube uses a precision machining process to cut a continuous helical groove into the tube wall. The fin strip is then inserted into this groove and mechanically locked in place. This method ensures intimate contact between the fin and the tube, minimizing thermal resistance.
The embedded structure prevents fin loosening even under extreme temperature fluctuations. In petrochemical and power plant systems, where startup and shutdown cycles are frequent, thermal expansion and contraction can compromise weaker fin attachments. The Finned tube in G type configuration maintains consistent performance under these conditions.
Another defining characteristic of G type finned tube solutions is their ability to operate at higher temperatures than L type finned tube or KL type finned tube designs. Because the fin is mechanically embedded rather than tension wrapped, the risk of fin lift off or degradation at elevated temperatures is significantly reduced.
From a long term perspective, G type finned tube products offer predictable performance over extended service life. This reliability is essential in heavy industrial environments where maintenance access may be limited and replacement costs are high.
G type finned tube designs excel in petrochemical applications due to their resistance to thermal stress, mechanical vibration, and corrosive operating environments.
Petrochemical processing involves continuous exposure to high temperatures, pressure variations, and aggressive process media. Heat exchangers in these systems often operate around the clock, leaving little margin for mechanical failure. The Finned tube must therefore deliver stable heat transfer while withstanding severe operational demands.
One of the primary advantages of G type finned tube solutions is their ability to maintain fin integrity under vibration. Compressors, pumps, and high velocity process flows generate constant mechanical stress. Embedded fins remain securely locked in place, unlike some L type finned tube designs that may experience gradual loosening over time.
Thermal cycling resistance is another critical factor. Petrochemical units frequently experience load changes that cause rapid temperature variations. G type finned tube structures accommodate these changes without compromising fin attachment, ensuring consistent heat transfer efficiency throughout operating cycles.
Corrosion resistance can also be enhanced through appropriate material selection. Aluminum fins combined with compatible base tube materials offer a balance of thermal conductivity and corrosion performance. In this way, the G type Finned tube supports long service life even in chemically aggressive environments.
In power plants, G type finned tubes are widely used in boilers, economisers, air preheaters, and waste heat recovery systems due to their high temperature capability and mechanical durability.
Power generation systems demand maximum efficiency from every component. Heat recovery equipment plays a key role in improving plant thermal efficiency and reducing fuel consumption. The Finned tube is central to these systems because it enables effective heat exchange between flue gases and working fluids.
In boiler applications, G type finned tube designs withstand high flue gas temperatures and erosive conditions. The embedded fin structure resists mechanical wear caused by particulate laden gas flows, maintaining stable performance over long operating periods.
Economisers benefit significantly from G type finned tube solutions. By recovering waste heat from exhaust gases, economisers improve overall plant efficiency. The superior heat transfer efficiency of G type finned tube products allows for compact designs and higher recovery rates without sacrificing durability.
Air preheaters and heat recovery units also rely on the mechanical stability of G type finned tube designs. Compared to L type finned tube and K type finned tube alternatives, embedded fin structures provide greater resistance to fin damage during soot blowing and maintenance operations.
Overall, the Finned tube in G type configuration supports the power industry’s goals of efficiency, reliability, and reduced operational risk.
Compared to other finned tube designs, G type finned tubes offer superior mechanical bonding and thermal stability, particularly in high temperature industrial environments.
To better understand why G type finned tube solutions outperform alternatives, it is helpful to compare them directly with other common designs.
G type finned tube uses embedded fin technology for permanent mechanical locking.
L type finned tube relies on tension wrapping, which may weaken at high temperatures.
K type finned tube improves grip through knurling but still depends on surface contact.
KL type finned tube combines wrapping and knurling but does not match embedded bonding strength.
G type finned tube supports the highest operating temperatures among common Finned tube designs.
K type finned tube and KL type finned tube perform well at medium to high temperatures.
L type finned tube is best suited for low to medium temperature applications.
While G type finned tube products have higher initial manufacturing costs, their long service life and reduced maintenance requirements often result in lower total cost of ownership. In contrast, less robust finned tube designs may require more frequent inspection or replacement in demanding environments.
This technical comparison highlights why G type finned tube solutions are preferred in petrochemical and power plant applications where performance margins are narrow and reliability is critical.
Multiple industry platforms emphasize the importance of G type finned tube designs for energy intensive applications and long term operational stability.
The Datang fin pipe platform highlights the role of finned tube technology in energy saving equipment for petrochemical plants and power stations. It emphasizes that G type finned tube structures provide reliable heat transfer performance under high temperature and continuous operation conditions, making them suitable for large scale industrial systems.
The Tulsa fin tube platform discusses the versatility of finned tubes across industries and notes that embedded fin designs are particularly effective where vibration and thermal cycling are present. According to this platform, G type finned tube solutions are often selected for critical applications that demand long term stability.
The Anand seamless platform focuses on why G type finned tube products outperform other fin designs in petrochemical and power plant environments. It points to superior fin bonding, reduced maintenance risk, and consistent heat transfer efficiency as key reasons for their widespread adoption in heavy industry.
Custom manufacturing allows G type finned tubes to be precisely tailored to specific operating conditions, maximizing performance and reliability.
Customization begins with material selection. Aluminum fin materials are commonly used for their excellent thermal conductivity, while base tubes may be selected based on pressure, temperature, and corrosion requirements. This flexibility ensures that each Finned tube configuration aligns with application specific demands.
Fin geometry can also be adjusted. Parameters such as fin height, thickness, and spacing influence heat transfer performance and pressure drop. Custom optimization allows engineers to achieve the desired balance between efficiency and airflow resistance.
Tube dimensions and lengths are another important customization factor. Power plants and petrochemical facilities often require non standard tube sizes to integrate seamlessly into existing equipment. G type finned tube manufacturing processes support precise dimensional control for these applications.
Finally, quality control plays a crucial role in custom manufacturing. Precision machining of the fin groove and controlled fin insertion ensure consistent bonding strength and thermal performance across production batches, supporting long term operational reliability.
G type finned tube designs stand out as the preferred finned tube solution for petrochemical and power plant applications due to their unmatched structural integrity and thermal performance.
In environments where high temperatures, vibration, and continuous operation are the norm, the Finned tube must deliver more than basic heat transfer capability. G type finned tube solutions meet these demands through embedded fin technology that ensures permanent bonding and consistent efficiency.
While L type finned tube, K type finned tube, and KL type finned tube designs remain valuable for less demanding applications, heavy industry requires the robustness and reliability that only G type finned tube structures can provide. Their proven performance in boilers, economisers, and process heat exchangers makes them a strategic choice for long term industrial investment.
As petrochemical and power generation industries continue to pursue higher efficiency and lower emissions, G type finned tube solutions will remain a cornerstone of advanced heat transfer system design.
