Aluminum Extrusion Load Capacity Calculation?

How is the load capacity of extrusions calculated?

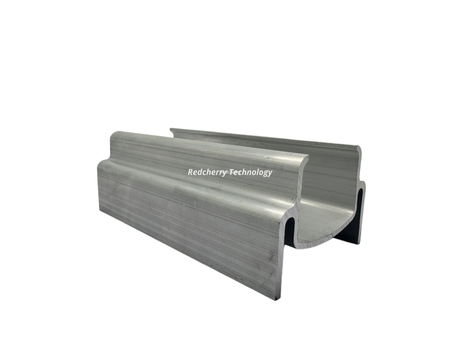

Calculating the load capacity of an aluminum extrusion involves a multi step engineering process that evaluates both the deflection limit and the bending stress limit based on the beam support conditions and the distribution of the applied weight.

To perform a professional assessment of an aluminum profile, engineers typically focus on two primary constraints: the maximum allowable deflection and the yield strength of the material. Deflection is often the more critical constraint in T slot systems, as the beam might be safe from breaking but too flexible for the application precision requirements. The standard formula for deflection considers the load in Newtons, the length of the span, the Modulus of Elasticity (typically 70000 MPa for aluminum), and the Area Moment of Inertia. By calculating these variables, the maximum load can be isolated to determine the capacity for a specific deflection limit, such as a ratio of the span length.

Furthermore, the bending stress must be calculated to ensure it does not reach the yield point of the aluminum extrusion. This involves analyzing the maximum bending moment and the Section Modulus. For an aluminum profile to be considered safe, this stress must be significantly lower than the yield strength of the alloy, such as 6063 T5 or 6061 T6. Usually, a safety factor of 2.0 or higher is applied to account for dynamic loads or environmental variables.

Common Load Scenarios for Aluminum Profiles

1. Point Load at Center: A single force applied at the midpoint of a span, creating the highest localized stress and deflection.

2. Uniformly Distributed Load: Weight spread evenly across the entire length of the aluminum extrusion, which is common in shelving or platform applications.

3. Cantilever Load: A beam supported at only one end, where the load capacity is drastically reduced due to the leverage effect on the fixed point.

Which profile parameters most affect load strength?

The load strength of an aluminum profile is primarily determined by its cross sectional geometry, specifically the Moment of Inertia, and the specific mechanical properties of the alloy and temper used during the extrusion process.

The most significant factor in the performance of an aluminum extrusion is the Moment of Inertia. This value measures a shape resistance to bending based on how its mass is distributed relative to its center axis. A larger profile with thicker walls or more complex internal webbing will have a higher value, allowing it to support significantly more weight over longer spans without excessive sagging. For example, a 40x80mm aluminum profile oriented vertically will have a much higher load capacity than the same profile oriented horizontally because the mass is concentrated further from the neutral axis in the vertical orientation.

Material composition is the second pillar of strength. Most structural extrusions utilize the 6000 series alloys. 6063 T5 is standard for architectural and light industrial use because it extrudes smoothly and has a clean finish. However, for heavy duty load bearing applications, 6061 T6 is preferred. The T6 tempering process involves heat treatment and artificial aging, which nearly doubles the yield strength compared to T5. When selecting an aluminum extrusion, the choice of alloy determines the ceiling of the stress the profile can handle before permanent deformation occurs.

Critical Parameters Table

Structural Design Considerations

1. Wall Thickness and Webbing: The internal ribs of an aluminum profile prevent the outer walls from collapsing inward under high pressure.

2. Symmetry: Symmetrical profiles handle loads more predictably, whereas asymmetrical shapes may experience twisting or torsion.

3. End Connections: The method of fastening, such as using brackets or bolt connectors, can create fixed ends that effectively increase the load capacity compared to pinned ends.

Can simulation software predict structural limits?

Simulation software, specifically Finite Element Analysis, can highly accurately predict the structural limits of an aluminum extrusion by breaking the geometry into thousands of mathematical elements to calculate stress distribution and potential failure points.

In the modern B2B manufacturing landscape, relying solely on manual calculations for complex aluminum profile assemblies is risky. Simulation software allows designers to input the exact CAD model of the aluminum extrusion and apply virtual loads that mimic real world conditions. This digital environment can account for multi axial loading, where a beam might be compressed, bent, and twisted simultaneously. The software generates a visual map of stress concentrations, showing exactly where the aluminum profile is most likely to fail or where material is being wasted.

Moreover, specialized configuration tools provided by manufacturers allow for rapid prototyping of aluminum extrusion frames. These tools often have the physical properties of the specific series, such as 20 series, 40 series, or 45 series, pre loaded. Designers can simulate different what if scenarios, such as changing the support spacing or increasing the profile size, to find the most cost effective solution that still meets the required safety margins. This prevents the common mistake of over engineering, where an excessively heavy and expensive aluminum profile is used when a lighter one would have sufficed.

Advantages of Digital Simulation

1. Stress Visualization: Identifying potential high stress areas in the aluminum extrusion assembly that manual formulas might miss.

2. Weight Optimization: Reducing the amount of aluminum used by selecting the optimal profile shape for the specific load.

3. Dynamic Analysis: Simulating how an aluminum profile responds to vibration or moving parts, which is essential for robotics and CNC frames.

Do test results validate calculated load data?

Physical test results are essential for validating calculated load data, as they account for real world variables such as extrusion tolerances, material impurities, and the efficiency of the connection hardware used with the aluminum profile.

While theoretical physics provides a robust foundation, the real world capacity of an aluminum extrusion can vary. Manufacturing tolerances mean that wall thicknesses might vary by a fraction of a millimeter, which can subtly change the structural performance. Furthermore, the strength of a structure is often limited by its weakest point, which is typically the joints and fasteners rather than the aluminum profile itself. Physical testing, such as using a hydraulic press to apply measured force until a beam reaches its deflection limit, provides the empirical proof needed for high stakes industrial certifications.

Leading suppliers of aluminum extrusion often provide load tables that are derived from a combination of math and physical destruction tests. These tables are invaluable for B2B buyers because they provide a guaranteed performance metric. For example, a test might show that while a formula predicts a certain load, the presence of T slots in the aluminum profile causes a slight reduction in localized stiffness that was not fully captured in a basic beam equation. Validation ensures that when a technician builds a safety guard or a heavy machine base, they are working with data that has been proven in a laboratory setting.

Validation Methods for Aluminum Systems

1. Static Load Testing: Applying a constant weight to the aluminum profile for an extended period to check for creep or permanent set.

2. Destructive Testing: Increasing the load until the aluminum extrusion actually buckles or snaps to find the ultimate breaking point.

3. Cycle Testing: Repeatedly loading and unloading the structure to ensure the aluminum profile does not suffer from fatigue failure over time.

Conclusion

Determining the load capacity of an aluminum extrusion is a sophisticated engineering task that balances material science with geometric analysis. To ensure the safety and efficiency of any industrial application, designers must prioritize the calculation of both deflection and stress, while remaining mindful of the specific alloy properties and cross sectional data. The transition from 6063 T5 to 6061 T6, the careful selection of a profile Moment of Inertia, and the use of digital simulation tools all play vital roles in successful structural design.

By integrating theoretical principles with the precision of simulation software and the reliability of physical testing, businesses can fully leverage the benefits of the aluminum profile. These versatile components offer the strength of steel at a fraction of the weight, provided they are applied within their scientifically verified limits. Whether you are constructing a simple workbench or a complex automated production line, a rigorous approach to load capacity will guarantee a structural solution that is safe, durable, and cost effective for the long term.
