Aluminum Extrusion Standard Wall Thickness Options?

What wall thicknesses are considered standard in extrusion?

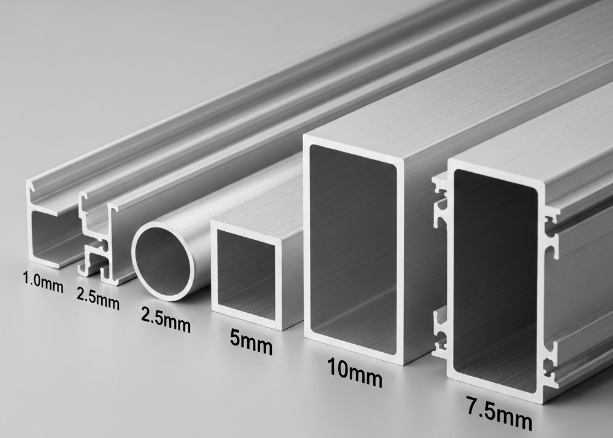

Standard wall thicknesses in the aluminum extrusion industry generally fall between 1.2mm and 4.8mm for common commercial profiles, although 1.0mm is often achievable for smaller, non-structural shapes.

The definition of "standard" in the world of aluminum extrusion is largely dictated by the circle size of the extrusion press and the complexity of the aluminum profile design. Most manufacturers categorize thickness based on the intended use. For instance, lightweight decorative trims often utilize a wall thickness of 1.0mm to 1.5mm, whereas structural framing used in assembly lines typically defaults to 2.0mm or 3.0mm. These standards exist because they represent the "sweet spot" where the metal flows consistently through the die without causing excessive wear or requiring extreme pressure.

When designing an aluminum profile, staying within these standard ranges ensures faster production lead times and lower rejection rates. If a wall is too thin, the aluminum may not fill the die properly, leading to surface defects or warping. Conversely, walls that are excessively thick for a small profile can lead to uneven cooling, which creates internal stresses and dimensional inaccuracies. Standardizing these dimensions helps the industry maintain high-quality outputs across millions of feet of extruded material.

The following table outlines the typical thickness categories encountered in the B2B supply chain for aluminum extrusion:

How do different applications influence wall size choice?

The selection of wall thickness for an aluminum profile is directly influenced by the mechanical load, environmental exposure, and the specific functional requirements of the target application, ranging from delicate electronics to heavy industrial machinery.

In the construction sector, the wall thickness of an aluminum extrusion must account for wind loads and the weight of glass or other cladding materials. For example, window frames often require a thicker outer wall to resist atmospheric pressure and thinner internal webs to save material cost. In contrast, the automotive industry prioritizes weight reduction to improve fuel efficiency, leading to the use of complex, multi-hollow aluminum profile designs with varying wall thicknesses that provide strength only where it is mathematically necessary.

The electronics industry often utilizes aluminum extrusion for heat sinks. In this application, the "fin" thickness is a critical variable. While the base plate might be thick to absorb heat, the fins are kept relatively thin to maximize surface area for cooling. Each industry has a set of unofficial standards that have been proven over time to offer the best performance. Failure to match the thickness to the application can result in structural failure if too thin, or unnecessary shipping and material costs if too thick.

Key application-driven factors include:

1. Structural Load Bearing: Heavy machinery frames require thicker walls (typically 5mm+) to prevent deflection under weight.

2. Heat Dissipation: Heat sinks use a combination of thick bases and thin fins to optimize thermal management.

3. Aesthetic Finishing: Thin-walled profiles are easier to anodize or powder coat for decorative applications like interior trim.

4. Portability: For handheld tools or portable equipment, wall thickness is minimized to reduce the physical strain on the end-user.

Are there thickness ranges for specific alloy types?

Different aluminum alloys possess unique flow characteristics and tensile strengths, meaning that a 6063 alloy can often achieve much thinner wall sections than a high-strength 7075 alloy within the same aluminum extrusion press.

The 6000 series is the most common alloy group for aluminum extrusion. Specifically, 6063 is known as the "architectural alloy" because it extrudes easily and allows for very thin, intricate walls and excellent surface finishes. On the other hand, 6061 is more "structural" and harder to extrude into very thin sections. If a designer requires an aluminum profile with a wall thickness below 1.2mm, they are almost always steered toward 6063. Attempting to extrude 7000 series or 2000 series alloys at those same thinness levels would likely result in fractured metal or broken dies due to the high pressure required.

Temperature and extrusion speed are also tethered to the alloy and wall thickness. Harder alloys generate more heat during the friction of the extrusion process. If the wall is too thin, the heat cannot dissipate quickly enough, leading to "speed cracks" on the surface of the aluminum profile. Therefore, when choosing a high-strength alloy for an aluminum extrusion project, designers must usually accept a slightly higher minimum wall thickness to ensure the integrity of the metallurgical structure.

Can tooling be shared across wall thicknesses?

Tooling generally cannot be shared across different wall thicknesses because the die is precision-cut to a specific gap that dictates the flow of the aluminum extrusion, meaning any change in thickness requires a completely new die.

A common misconception in the procurement of an aluminum profile is that a manufacturer can simply "adjust" the machine to make a wall thicker or thinner. In reality, the die is a solid steel disk with a cavity shaped exactly like the cross-section of the desired profile. To change the wall thickness by even 0.1mm, a new die must be CNC machined or EDM (Electrical Discharge Machining) processed. This is why the design phase of an aluminum extrusion is so critical; once the tooling is created, the dimensions are essentially locked in.

Furthermore, the design of the die must account for "shrinkage" as the metal cools. Thicker walls shrink differently than thinner ones. If you were to attempt to force more metal through a thin gap, the pressure would likely crack the steel die or cause the aluminum profile to emerge with significant dimensional deviations. For companies looking to reduce costs, it is often better to use a standard "stock" profile that already has an existing die rather than trying to modify a custom design to a different thickness.

Reasons for dedicated tooling include:

1. Pressure Balance: The die must balance the flow of metal; changing one wall thickness disrupts the flow across the entire profile.

2. Metal Shrinkage: Aluminum shrinks at a predictable rate based on its mass; different thicknesses require different compensation in the die design.

3. Bearing Lengths: The "bearing" is the part of the die that touches the metal. Thicker sections require longer bearings to control the speed of the aluminum.

4. Surface Quality: Precise die gaps are necessary to maintain the "as-extruded" surface finish required for anodizing.
