| Quantity: | |
|---|---|
RC-A
Red Cherry
RC-A-489
Item | Description |
|---|---|
Material | Aluminum Alloy 6063-T5 / 6061-T6 (Custom Available) |
Profile Type | Custom / Irregular Aluminum Extrusion |
Wall Thickness | Customized According to Drawing |
Weight | Customized (Based on Profile Design) |
Standard Length | 6M (Cut to Length Available) |
Surface Treatment | Anodized (Natural / Black / Color), Powder Coating, Electrophoresis, Wood Grain Transfer |
Tolerance | According to ISO / Customer Requirement |
Application | Automation Equipment, Machinery Frame, Industrial Structure, Construction, Special Equipment |
MOQ | Low MOQ / Negotiable |
Machining | Cutting / Drilling / Tapping / CNC Machining |
Mold | New Mold Required (Support Custom Mold Development) |
Sample Lead Time | 7–15 Days |
Delivery Time | 30–45 Days After Sample Confirmation |
Customization | Dimensions and machining can be adjusted according to CAD drawings |
For architectural, construction and industrial fabrication business clients seeking reliable structural transition and framing solutions, our Custom Aluminum Z Channel Profile delivers exceptional structural stability, dimensional precision and corrosion resistance for diverse indoor and outdoor applications. Manufactured via high-precision extrusion technology, this Z section profile is purpose-built to streamline installation, enhance structural integrity and meet the strict aesthetic and performance demands of architectural and industrial projects.

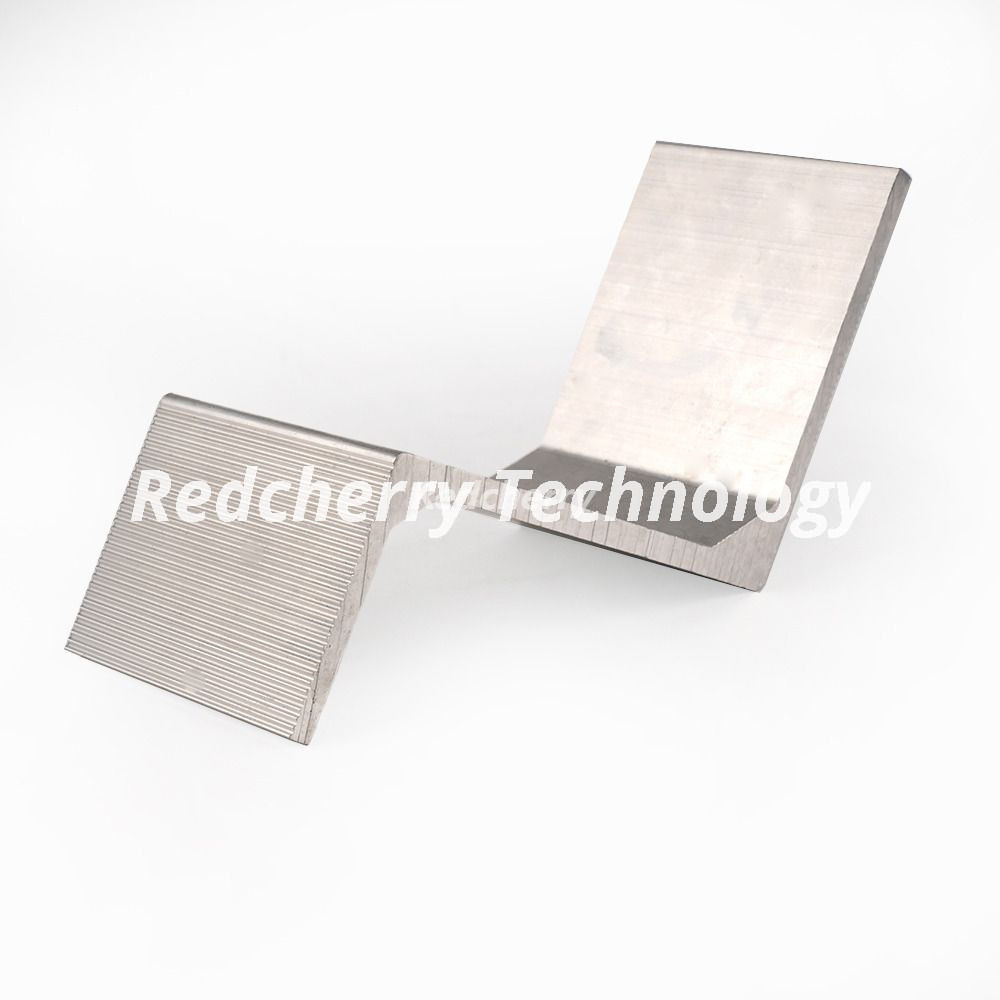

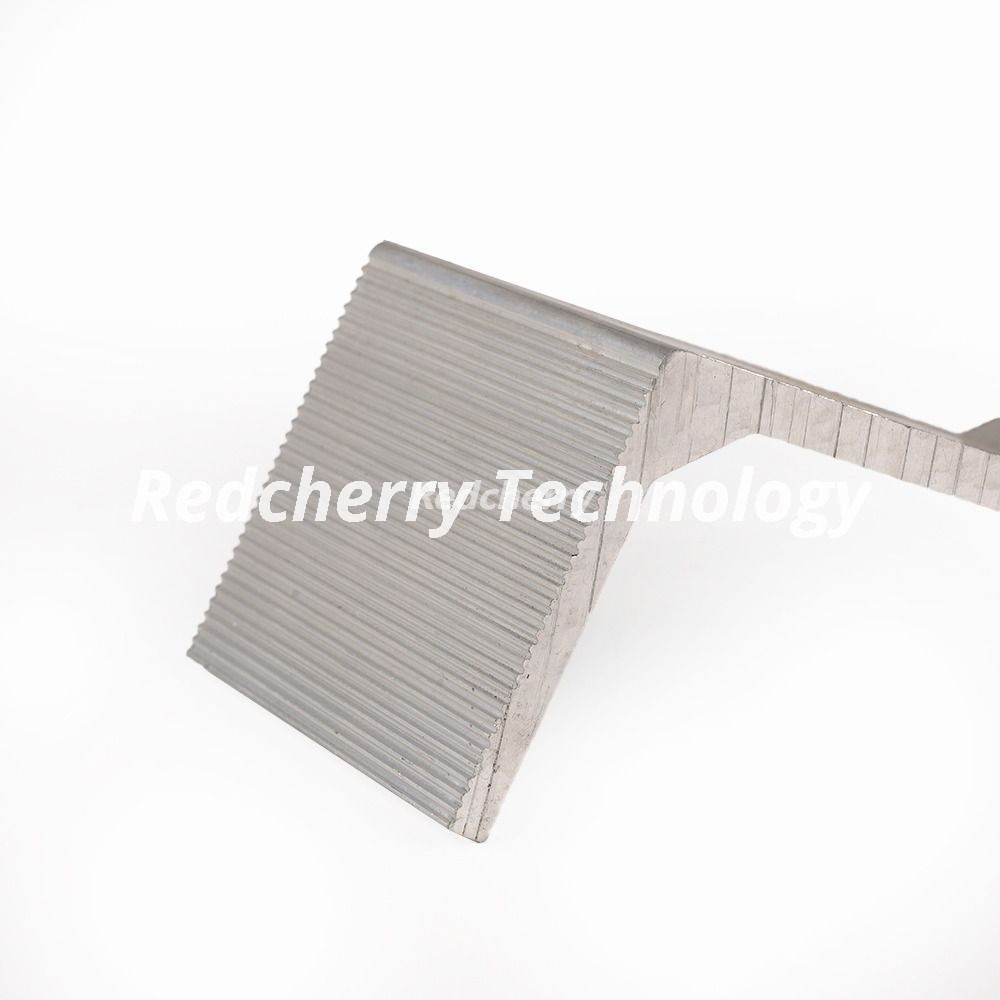

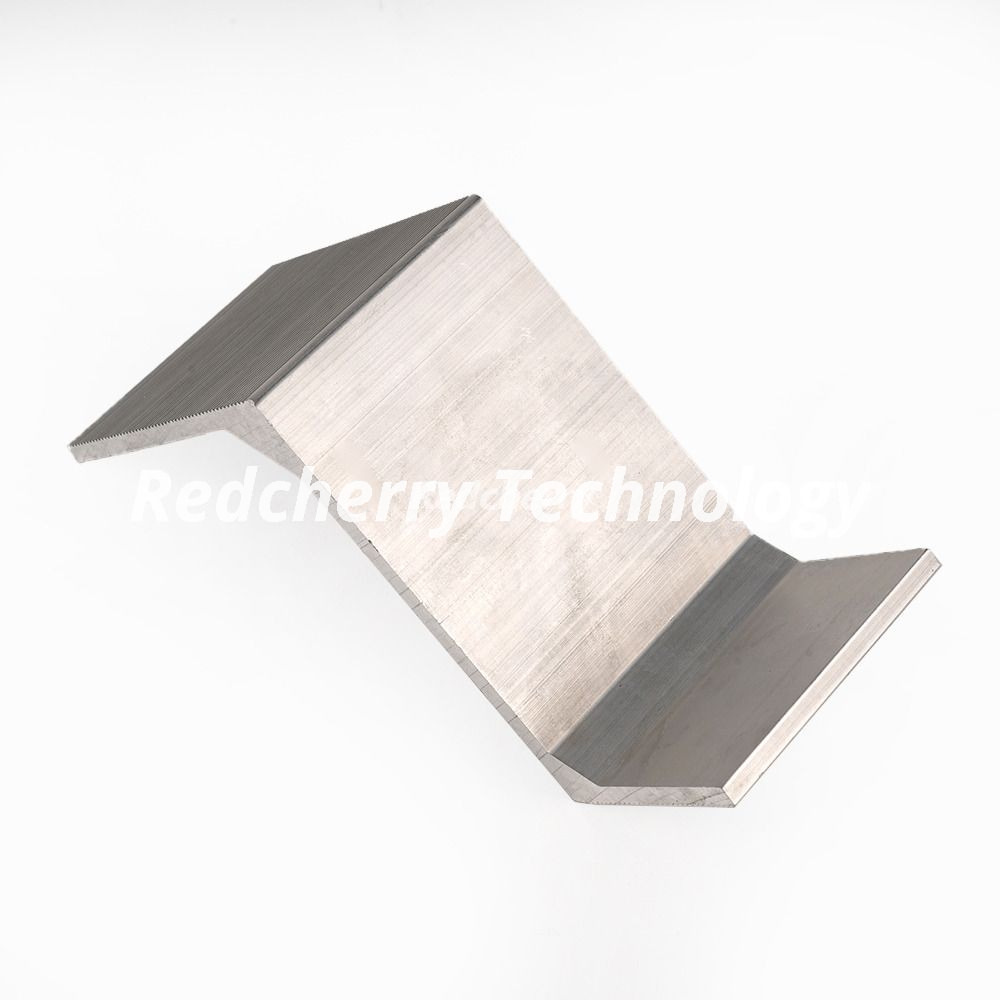

Our extruded Z section aluminum features a unique double-flange Z-shaped cross-section, engineered to provide superior shear strength and seamless transition between two parallel structural surfaces. The precision-formed profile eliminates installation gaps, reduces assembly labor, and delivers consistent structural support for both load-bearing and non-load-bearing framing applications. Produced with advanced extrusion processes, it maintains uniform wall thickness, ultra-tight dimensional tolerances and a smooth, defect-free surface, making it fully compatible with architectural finishing and complex on-site assembly requirements.
Superior Transition Connection Stability: The optimized Z-shaped design delivers exceptional flexural and shear resistance, creating a secure, gap-free connection between dissimilar structural components, ideal for roofing, cladding and curtain wall transition applications.
Ultra-Precise Z Section Tolerance Control: Custom-engineered extrusion dies and strict production controls maintain micron-level dimensional accuracy for the Z profile, ensuring perfect alignment during installation, eliminating on-site modification and reducing project lead times.
Excellent Formability for Secondary Fabrication: The uniform, smooth surface and consistent material structure enable seamless miter cutting, bending and custom fabrication, supporting complex architectural designs and industrial assembly requirements.
Long-Lasting Indoor & Outdoor Corrosion Resistance: Premium aluminum alloy base materials deliver inherent oxidation and rust resistance, with optional weatherproof finishes to ensure long-term performance in harsh outdoor environments.
Highly Versatile Profile Design: Fully customizable flange width, web height, wall thickness and section angle to match the unique requirements of your architectural or industrial project.
We offer a comprehensive range of material and finish options tailored to architectural and industrial performance needs:
Core Materials:
6063-T5 aluminum Z channel profile: The premium choice for architectural applications, offering excellent formability, superior surface finish quality and moderate structural strength, ideal for curtain wall, roofing and decorative framing projects.
6061-T6 aluminum profile: A high-strength option for heavy-duty industrial brackets and structural reinforcement, delivering exceptional tensile strength and load-bearing capacity.
Surface Finishes: Mill finish for standard industrial use, clear/color anodizing for enhanced corrosion resistance, custom RAL color powder coating for architectural aesthetic needs, and brushed finish for premium decorative applications.
As a specialized custom aluminum extrusion manufacturer, we support complete end-to-end customization of our aluminum Z channel profile based on your CAD drawings or project specifications. Our in-house tooling and engineering team designs custom extrusion dies to match your exact profile dimensions, with complimentary design optimization to ensure optimal performance and cost efficiency. Available secondary processing services include precision CNC machining, miter cutting, drilling & hole punching, custom welding & assembly, and full-scale surface treatment, with support for both prototype development and large-scale project rollouts.
Our custom Z section aluminum profile is widely used across diverse sectors, including: curtain wall support and framing systems, roofing and cladding transition structures, equipment enclosures and mounting brackets, window and door framing reinforcement, industrial structural transition connections, and interior and exterior architectural trim systems.
With over a decade of specialized experience in custom architectural and industrial aluminum extrusion manufacturing, Red Cherry is the trusted partner for construction, fabrication and engineering business clients worldwide. Our in-house production facility features state-of-the-art extrusion lines, precision tooling shops and full quality testing labs, ensuring every Z channel profile meets strict international architectural and industrial quality standards. We offer a 1-3 working day lead time for pre-production samples, with mass production completed in 30-60 days, accommodating both small-batch prototype orders and large-volume project deliveries, with full OEM and ODM support. Our dedicated engineering team provides end-to-end support from initial die design to final product delivery, ensuring a seamless, cost-effective production process for your project.
Yes, we offer complete customization for all dimensions of our custom aluminum Z channel profile, including flange width, web height, wall thickness and section angle, based on your CAD drawings or project specifications.
We provide a full range of architectural-grade surface finishes, including mill finish, clear/color anodizing, custom RAL color powder coating, and brushed finish, to meet your aesthetic and performance requirements.
Absolutely. Our extruded Z section aluminum is manufactured from corrosion-resistant aluminum alloys, with optional weatherproof surface finishes, making it ideal for long-term outdoor curtain wall, roofing and cladding applications.
Standard pre-production sample lead time is 1-3 working days, with mass production completed in 30-60 days, adjusted based on your order size and customization complexity.
