RC-A
Red Cherry
RC-A-469
Item | Description |
|---|---|
Material | Aluminum Alloy 6063-T5 / 6061-T6 (Custom Available) |
Profile Type | Custom / Irregular Aluminum Extrusion |
Wall Thickness | Customized According to Drawing |
Weight | Customized (Based on Profile Design) |
Standard Length | 6M (Cut to Length Available) |
Surface Treatment | Anodized (Natural / Black / Color), Powder Coating, Electrophoresis, Wood Grain Transfer |
Tolerance | According to ISO / Customer Requirement |
Application | Automation Equipment, Machinery Frame, Industrial Structure, Construction, Special Equipment |
MOQ | Low MOQ / Negotiable |
Machining | Cutting / Drilling / Tapping / CNC Machining |
Mold | New Mold Required (Support Custom Mold Development) |
Sample Lead Time | 7–15 Days |
Delivery Time | 30–45 Days After Sample Confirmation |
Customization | Dimensions and machining can be adjusted according to CAD drawings |

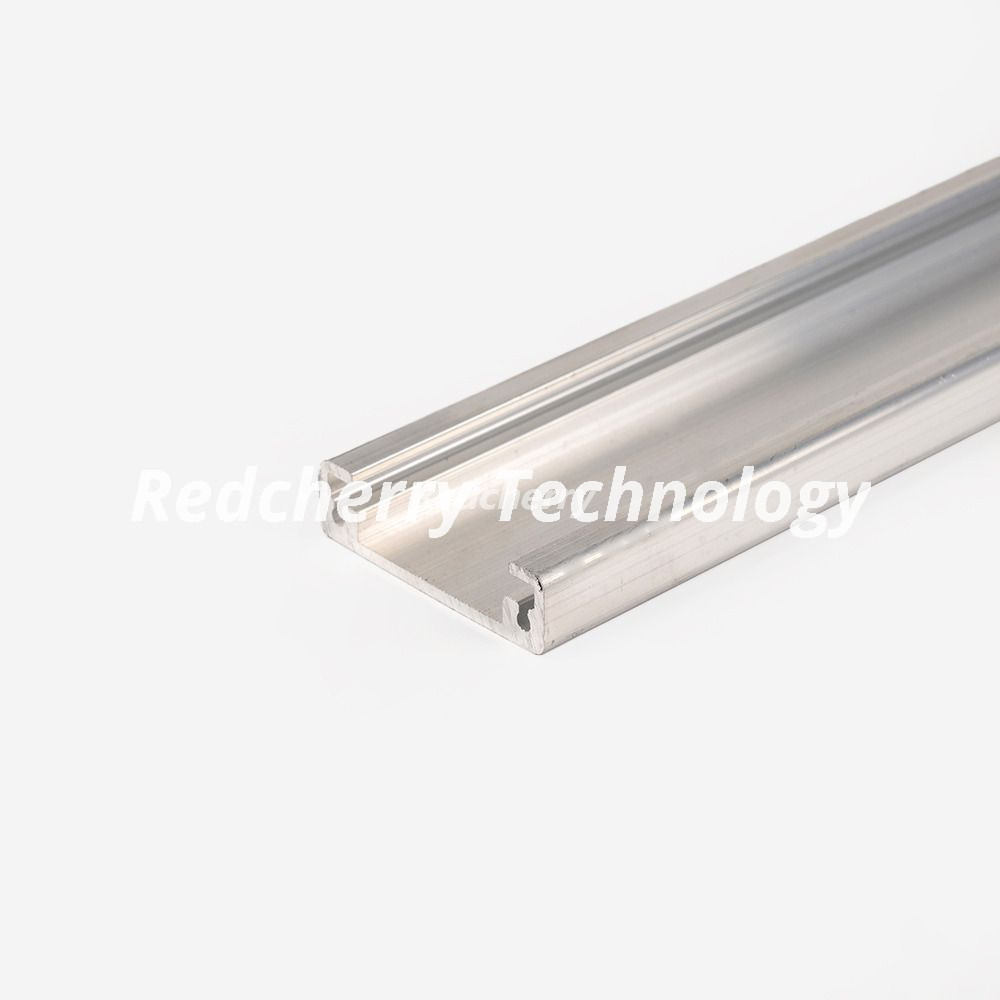

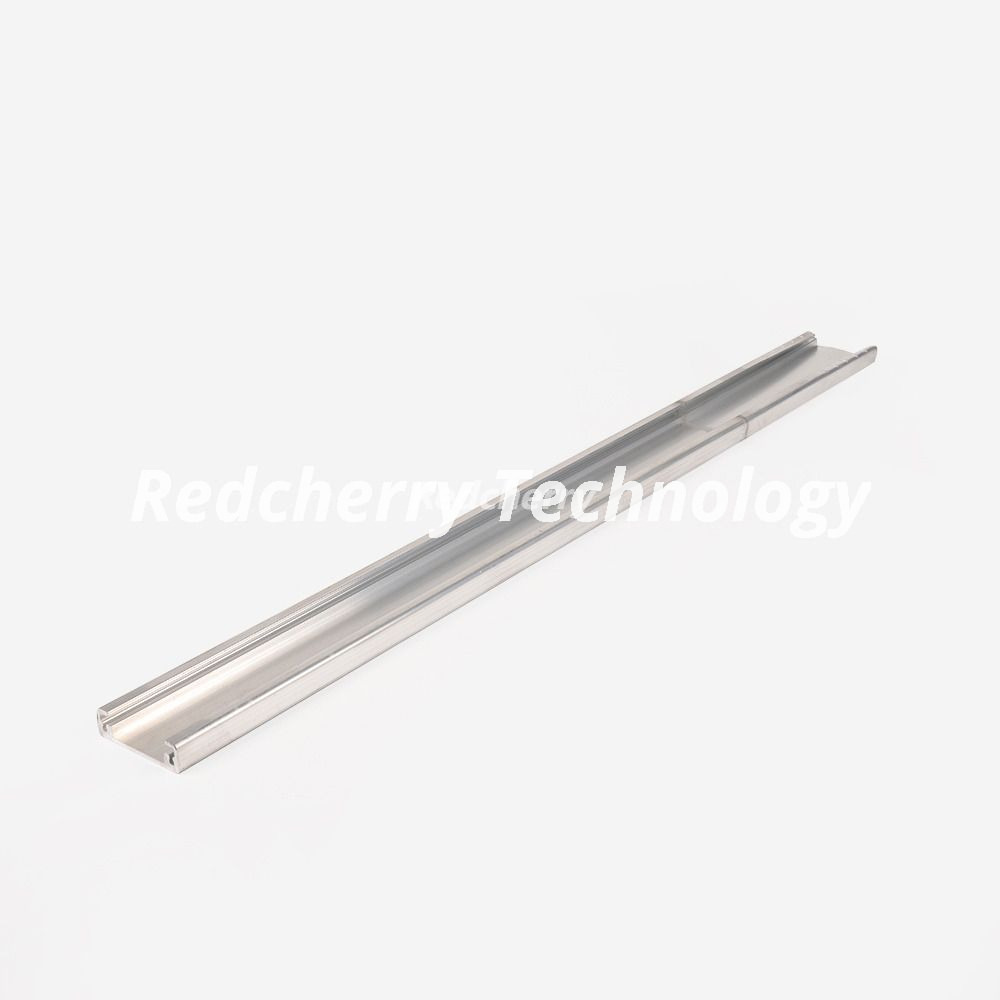

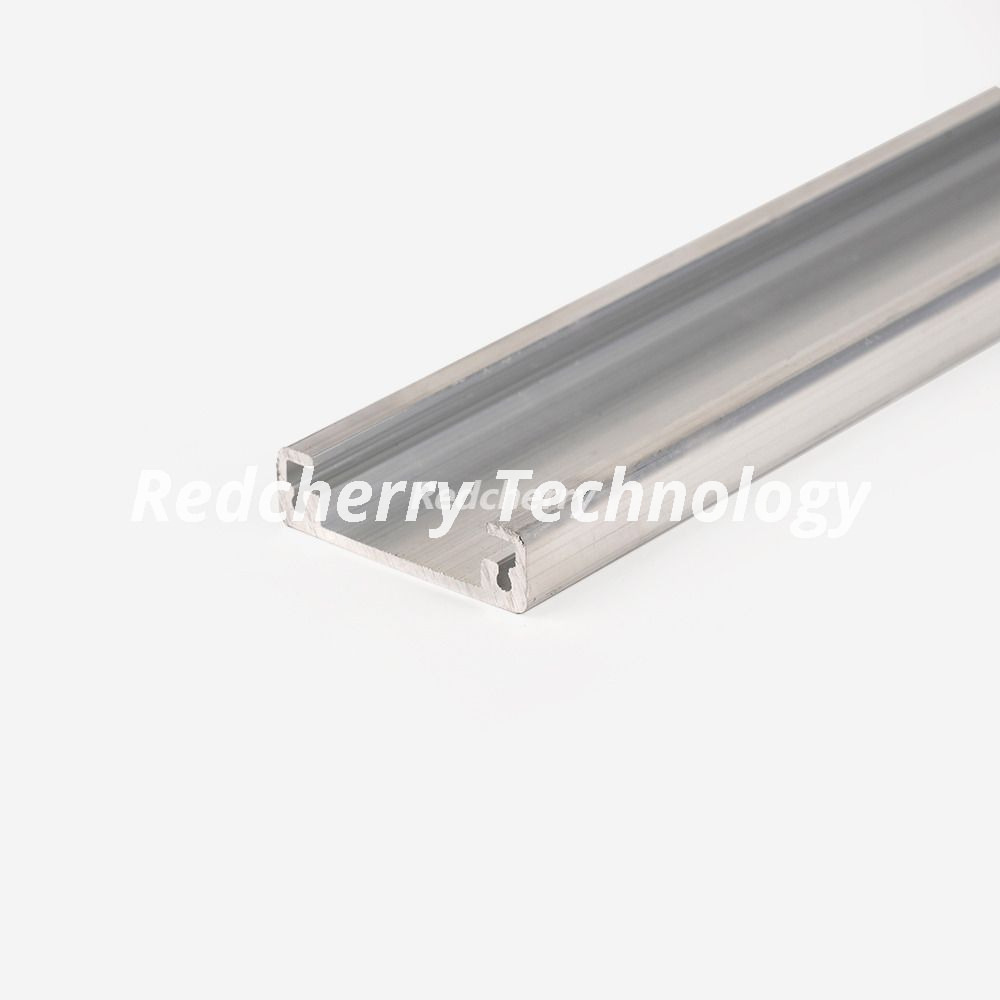

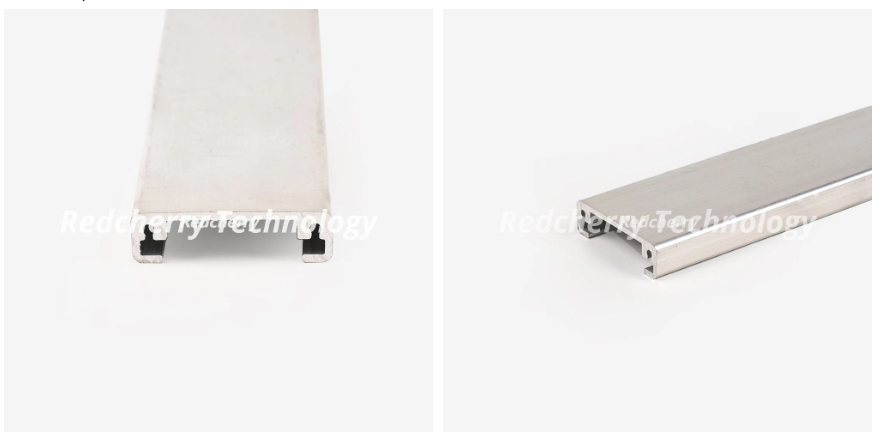

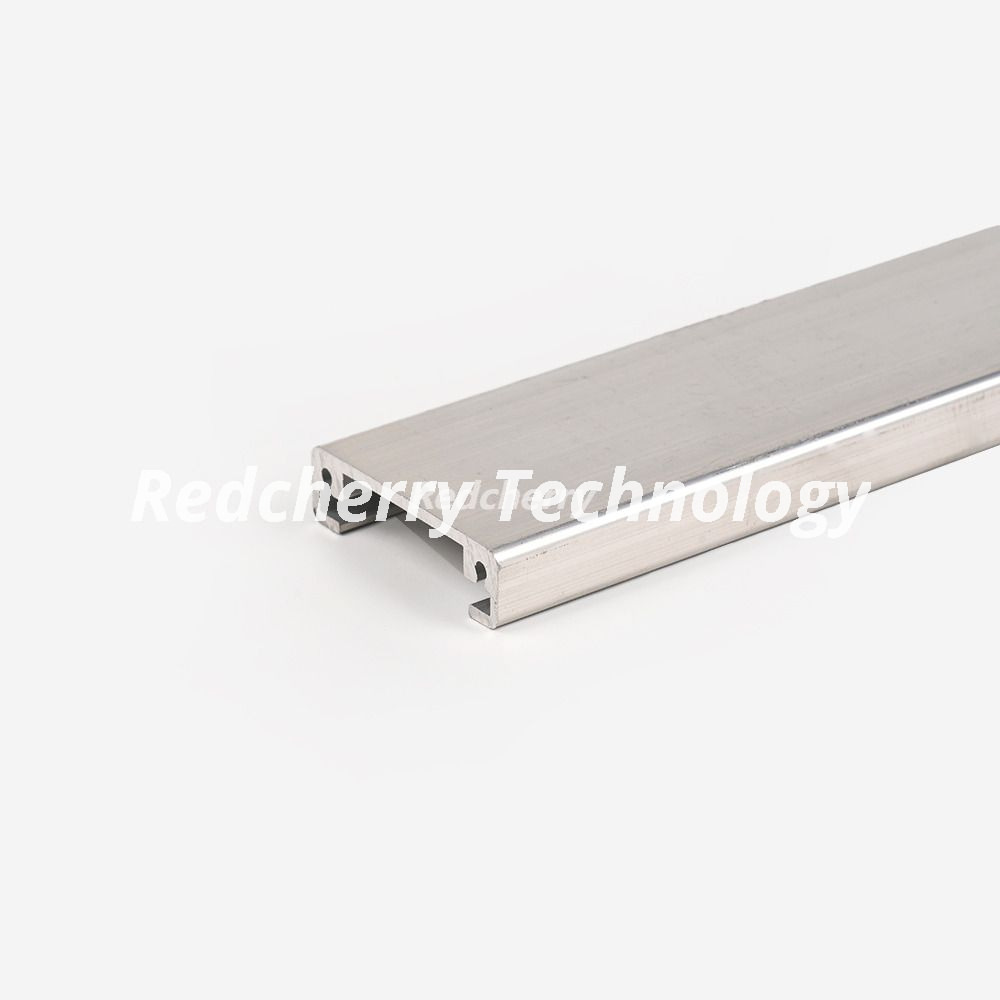

Our double slot U channel aluminum extrusion profile is a precision-engineered, high-performance aluminum track solution, designed exclusively for dynamic sliding systems, cabinet track structures, LED housing assemblies, and industrial frame integration. Available in standard model RC-A (custom code RC-A-469), this profile is manufactured from premium-grade 6063-T5 and 6061-T6 aluminum alloy, with a specialized dual inner slot structure that enables seamless installation of sliding blocks, fastening connectors, and embedded panels, delivering unmatched stability and versatility for system integrators, equipment manufacturers, and commercial fit-out contractors. Unlike standard single-slot channels, our dual-slot design supports multi-component integration in one compact profile, eliminating the need for multiple mounting tracks and reducing overall assembly complexity.

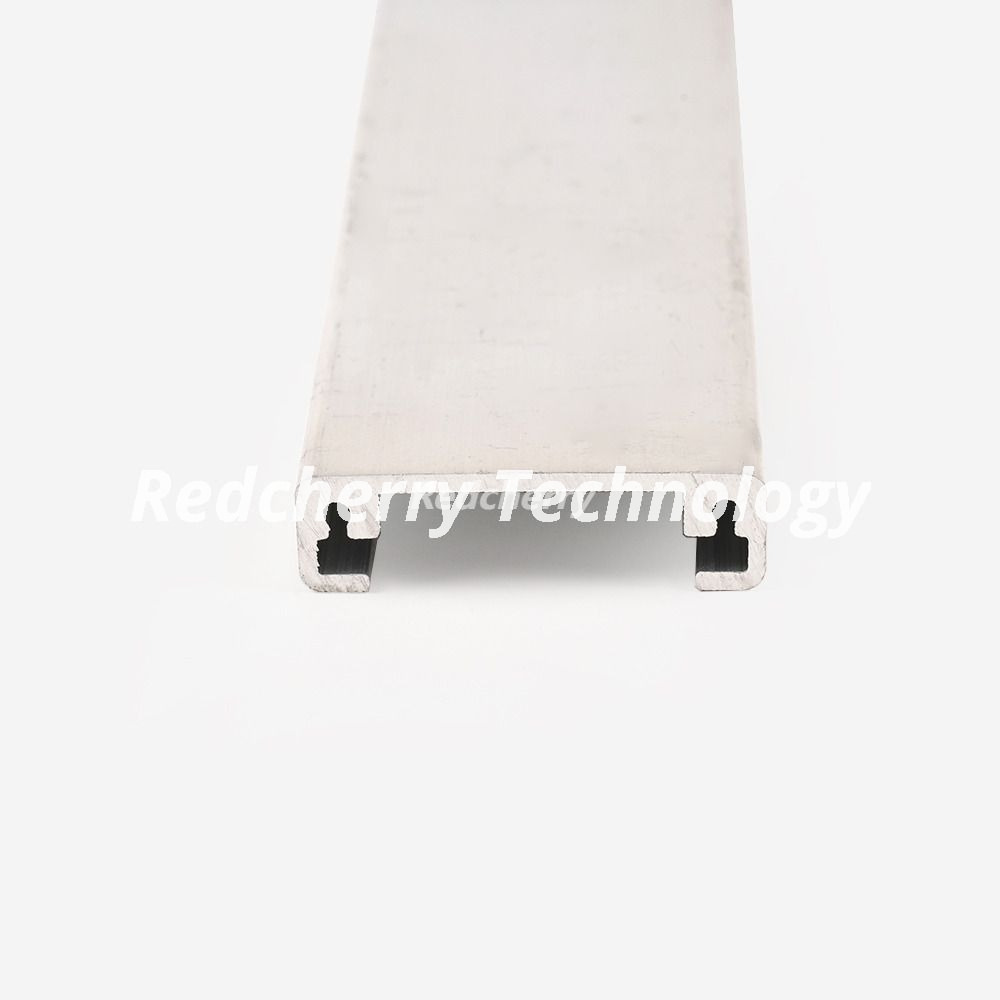

The symmetrical dual inner slot structure of our U channel aluminum extrusion for sliding systems enables simultaneous mounting of sliding components, fastening hardware, and embedded panels in a single profile. This design streamlines assembly, reduces material costs, and delivers superior alignment for dynamic sliding applications compared to standard single-slot alternatives.
Engineered with tight-tolerance extrusion technology, our dual slot aluminum track profile maintains consistent dimensions and wall thickness across every production run, ensuring smooth, jitter-free sliding performance even with continuous daily use. This dimensional stability eliminates premature wear and extends the service life of sliding door, window, and cabinet systems.
Our U channel extrusion balances lightweight handling with exceptional load-bearing capacity, making it suitable for both lightweight LED housing installations and heavy-duty industrial sliding gate systems. The premium aluminum alloy construction delivers superior tensile strength without adding unnecessary weight to your assemblies.
Inherently rust-proof and corrosion-resistant, our aluminum U channel extrusion is built to withstand both indoor commercial environments and outdoor moisture-exposed applications. The smooth extrusion finish supports a wide range of aesthetic treatments, making it ideal for both functional industrial use and visible architectural fit-outs.
We offer tailored material and finish solutions to match your project’s performance, durability, and aesthetic needs:
Core Materials: 6063-T5 aluminum alloy for high formability, excellent surface finish, and general-purpose sliding/lighting applications; 6061-T6 aluminum alloy for heavy-duty industrial framing and high-load sliding systems; optional titanium steel-aluminum composite for extreme wear-resistance requirements
Surface Finishes: Wear-resistant hard coat anodization for sliding track applications, matte and glossy color anodization for LED housing and architectural use, custom RAL color powder coating, sandblasting, mechanical polishing, and chemical conversion coating for enhanced corrosion protection.
As a specialist in custom U channel aluminum extrusion fabrication, we deliver full end-to-end customization to align with your exact system requirements. We accept detailed CAD and technical drawing submissions, with full control over every profile dimension, including internal/external width, height, wall thickness, slot spacing, slot depth, and custom notch or cutout designs for seamless component integration. Our in-house secondary processing services include precision CNC machining, slot milling, drilling, tapping, precision length cutting, chamfering, and full oxidation treatments for both small-batch prototype runs and large-scale bulk orders, with every profile finished to your exact specifications for immediate installation.
Our double slot U channel aluminum extrusion is purpose-built for a wide range of commercial and industrial use cases, including sliding door, window, and gate systems for commercial and residential properties, cabinet, wardrobe, and furniture track assemblies for commercial fit-outs, LED strip housing and linear light fixtures, industrial equipment guarding and conveyor system components, interior decorative trim and wall panel mounting systems, and modular cleanroom framing and laboratory equipment enclosures.
For system integrators, furniture manufacturers, commercial fit-out contractors, and industrial equipment producers, Red Cherry provides a streamlined, reliable custom aluminum extrusion solution built for your unique needs. We offer 1-3 day rapid prototype sample turnaround for design validation, 30-60 day flexible bulk production lead times, and dedicated technical engineering support from initial drawing review to final delivery. Our strict quality control processes ensure every profile meets your exact tolerance and performance requirements, with full flexibility to accommodate both custom one-off projects and high-volume continuous production runs.
We primarily use 6063-T5 aluminum alloy for general-purpose and aesthetic-focused applications, and 6061-T6 aluminum alloy for heavy-duty, high-load industrial use, with custom material options available based on your project specifications.
Yes. We fully customize slot width, depth, spacing, and internal geometry based on your CAD drawings, ensuring a perfect fit for your sliding blocks, fasteners, and embedded panels.
Absolutely. Our U channel profiles are engineered to accommodate standard LED strip dimensions, with custom slot designs for wire management and heat dissipation, plus a range of matte and glossy finishes to match your lighting aesthetic requirements.
