| Quantity: | |
|---|---|
RC-A
Red Cherry
RC-A- 486
Item | Description |
|---|---|
Material | Aluminum Alloy 6063-T5 / 6061-T6 (Custom Available) |
Profile Type | Custom / Irregular Aluminum Extrusion |
Wall Thickness | Customized According to Drawing |
Weight | Customized (Based on Profile Design) |
Standard Length | 6M (Cut to Length Available) |
Surface Treatment | Anodized (Natural / Black / Color), Powder Coating, Electrophoresis, Wood Grain Transfer |
Tolerance | According to ISO / Customer Requirement |
Application | Automation Equipment, Machinery Frame, Industrial Structure, Construction, Special Equipment |
MOQ | Low MOQ / Negotiable |
Machining | Cutting / Drilling / Tapping / CNC Machining |
Mold | New Mold Required (Support Custom Mold Development) |
Sample Lead Time | 7–15 Days |
Delivery Time | 30–45 Days After Sample Confirmation |
Customization | Dimensions and machining can be adjusted according to CAD drawings |

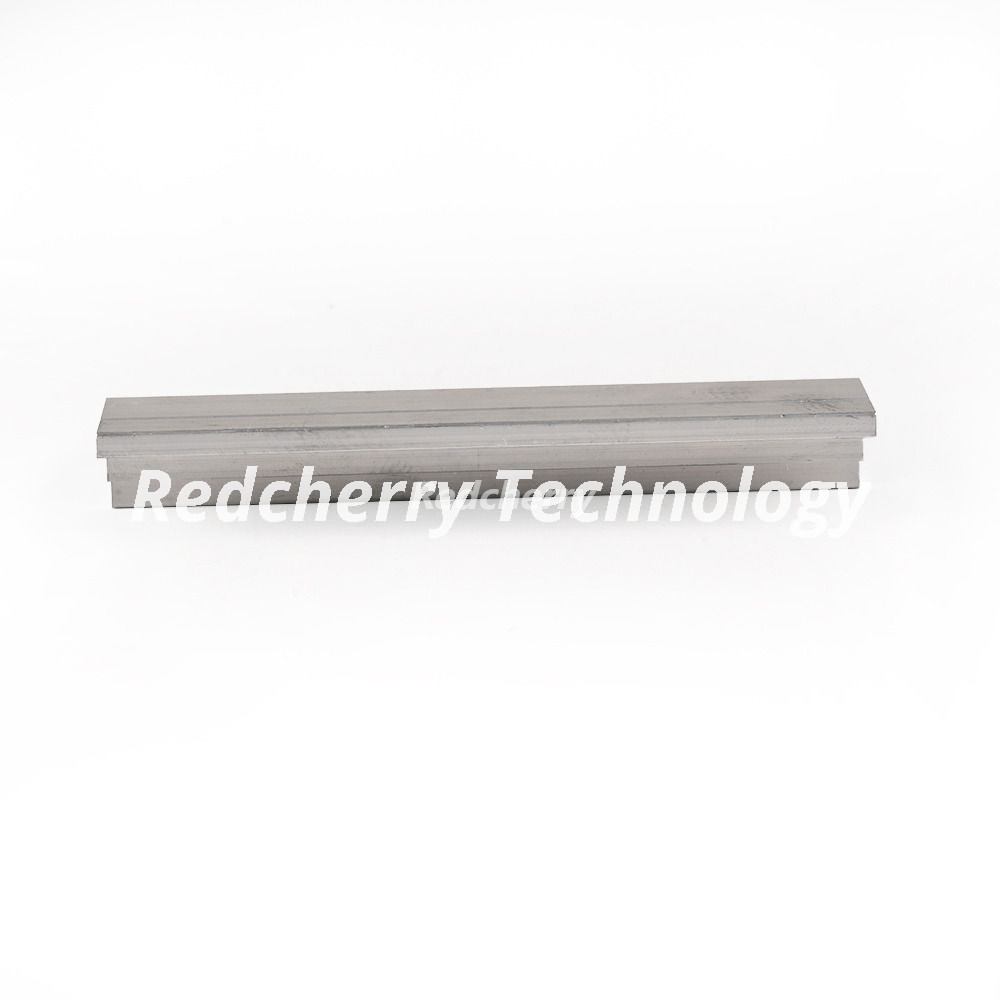

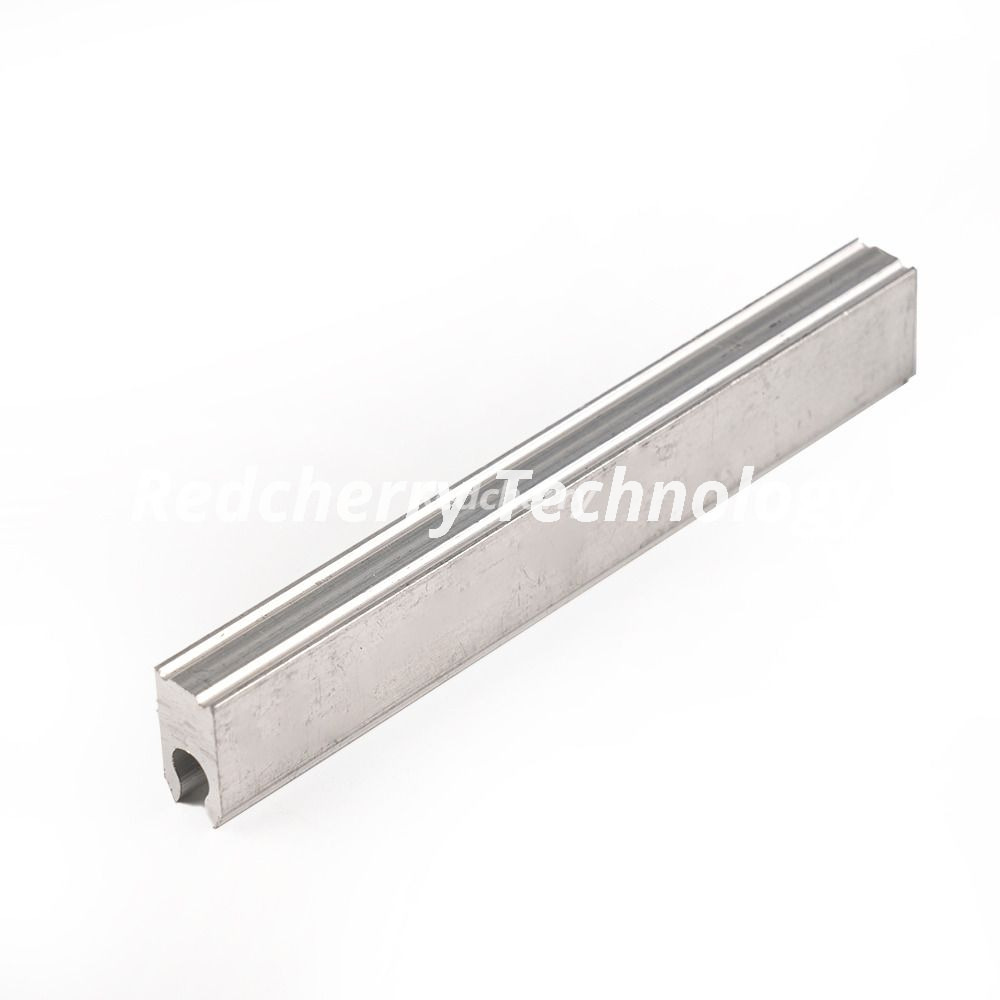

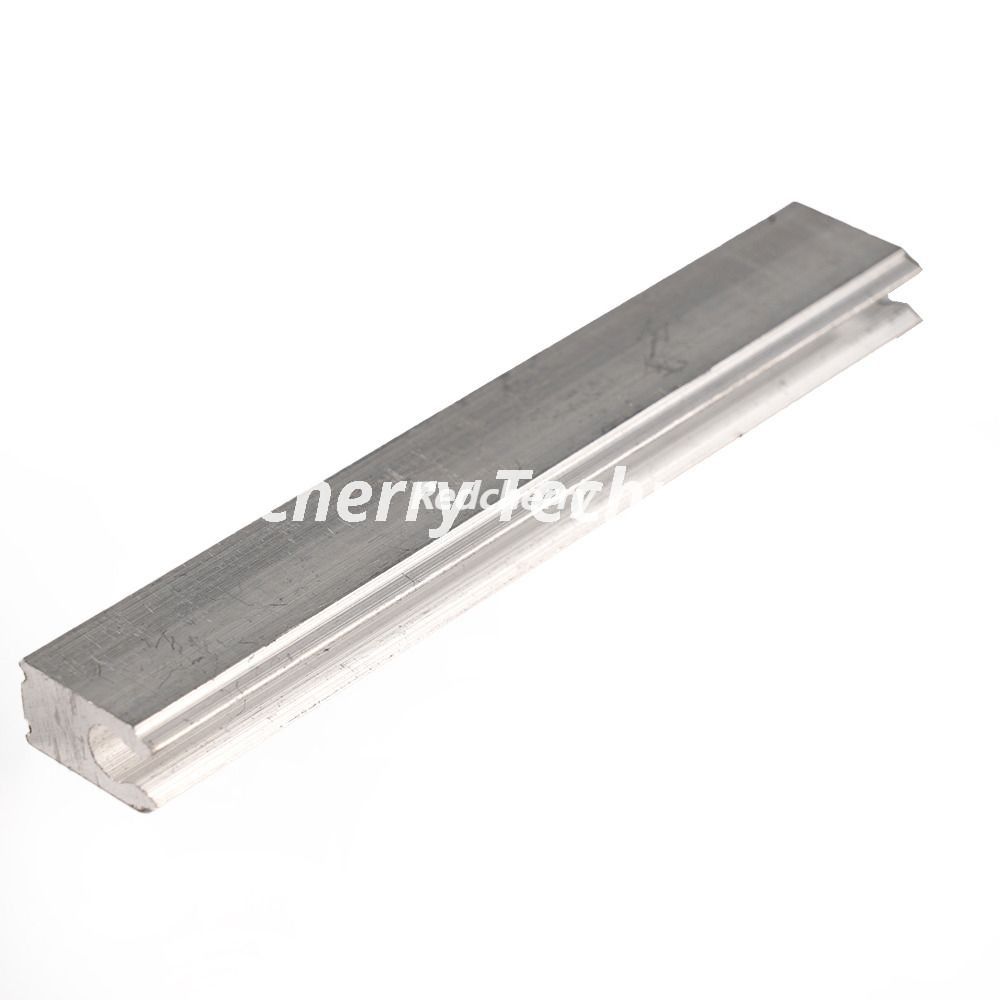

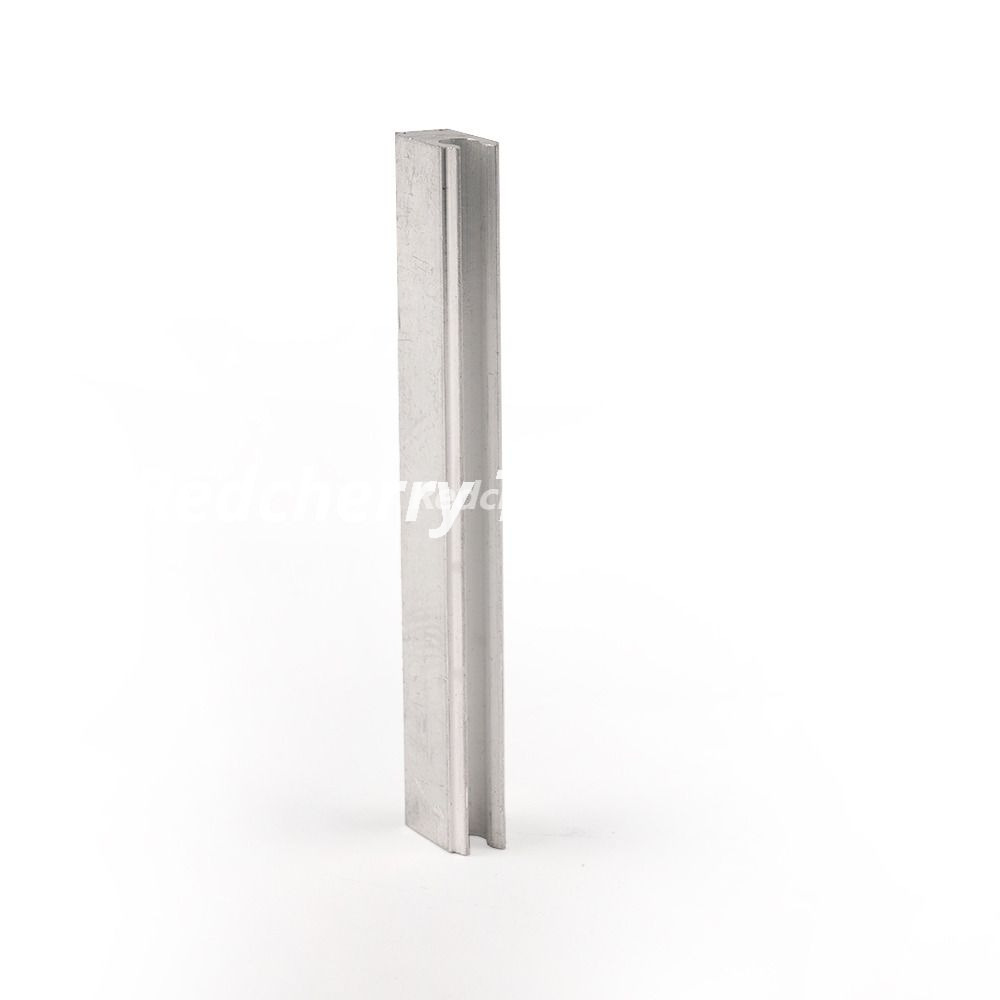

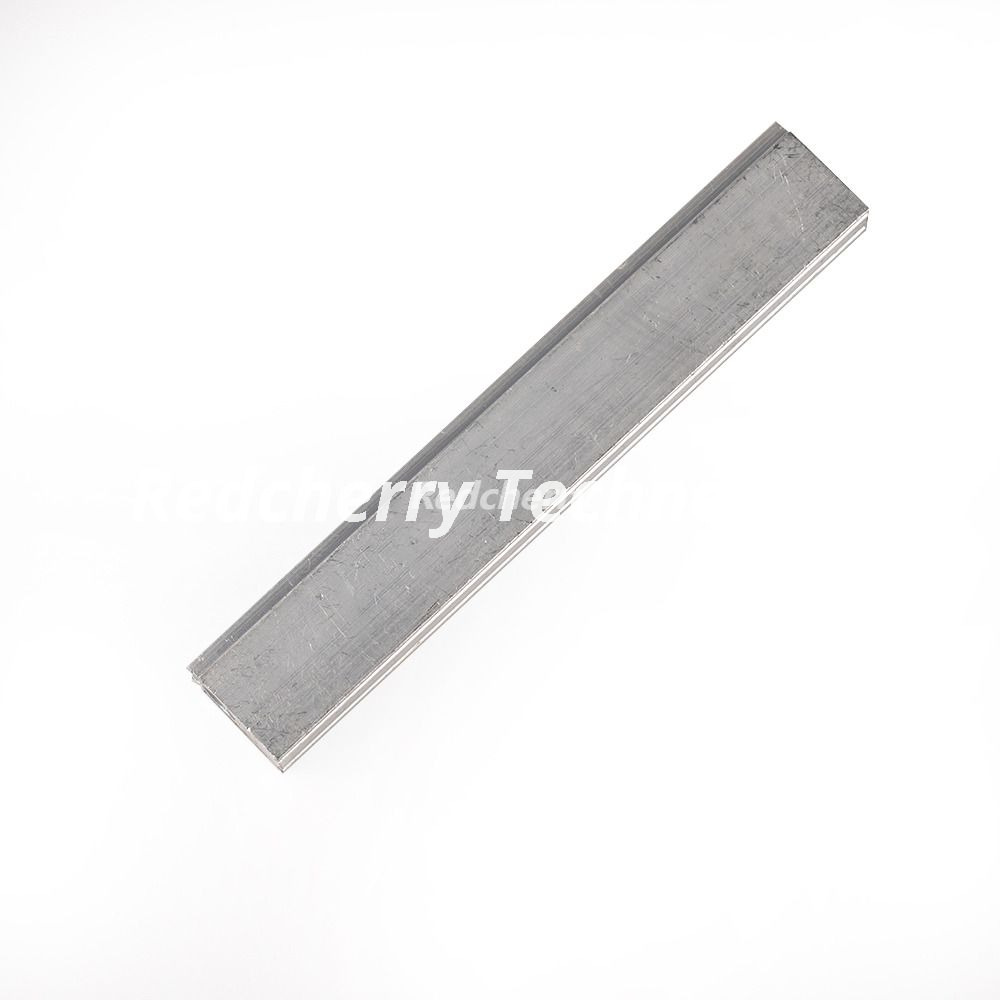

Our slotted rectangular aluminum extrusion rail is a precision-engineered profile purpose-built for industrial guide systems, linear motion solutions, and modular structural framing applications. Featuring a standardized top slot design, this profile enables seamless, tool-free integration with sliding components, T-nuts, fasteners, and mechanical assemblies, eliminating complex fabrication steps for your project workflows. Manufactured in our China-based facility with strict quality control protocols, our industrial slotted aluminum extrusion guide rail delivers consistent dimensional accuracy and reliable performance for high-demand industrial environments. We cater exclusively to industrial and commercial enterprises, automation integrators, and fabrication firms with tailored extrusion solutions that align with your project specifications.
The pre-engineered slot geometry of our precision slotted aluminum extrusion profile is compatible with industry-standard fasteners and sliding hardware, reducing procurement and assembly time for your production lines. The slot’s tight tolerance design ensures stable, backlash-free linear motion, making it ideal for dynamic automation applications.
Crafted from high-grade aluminum alloys, our slotted rectangular aluminum extrusion rail delivers exceptional tensile strength while maintaining a lightweight profile, reducing overall equipment weight without compromising structural integrity. This balance cuts transportation and installation costs for your large-scale framing projects.
Every extrusion run adheres to strict CNC-controlled tolerance standards, ensuring uniform slot dimensions, straightness, and cross-section consistency across full production batches. This eliminates on-site rework and ensures seamless interchangeability of components across your assembly systems.
We offer a comprehensive range of material and finish options to match your application’s performance requirements:
Core Materials: Premium 6061-T6 and 6063-T5 aluminum alloys as standard, with custom alloy options available for specialized applications. 6061-T6 offers superior shear strength for heavy-load framing, while 6063-T5 delivers excellent surface finish for high-visibility installations.
Surface Finishes: Clear anodizing (Type II/III), hard coat anodizing for enhanced wear resistance in high-friction sliding applications, powder coating in custom RAL colors, and chemical film conversion for corrosion protection in harsh industrial environments.
We support end-to-end customization for your slotted aluminum extrusion rail projects, starting from CAD drawing validation to full production. Our in-house capabilities include custom extrusion die development for unique slot configurations, precision CNC machining, drilling and milling for custom hole patterns, precision length cutting with tight tolerance control, and full post-processing services. We offer 1-3 day sample lead times for prototype validation, with standard production lead times of 30-60 days for bulk orders.
Our slotted rectangular aluminum extrusion rail is trusted across diverse industrial sectors, including automation equipment and robotic system framing, linear motion guide systems and conveyor lines, industrial workstations and modular machine frames, sliding door and guardrail systems for manufacturing facilities, equipment support structures and assembly line fixtures, and cleanroom and laboratory framing systems.
As a professional aluminum extrusion manufacturer serving industrial and commercial enterprises worldwide, we bring decades of expertise to every project. We offer end-to-end support from initial design consultation to final delivery, with strict quality control at every production stage. Our flexible production capacity accommodates both small-batch prototype runs and high-volume bulk orders, with dedicated account management to ensure your project stays on schedule and within budget. We also provide full OEM and ODM support to align with your brand and product requirements.
We offer industry-standard slot widths compatible with global fastening systems, with custom slot dimensions available via our custom die development service.
We offer flexible MOQs, with support for small prototype runs and high-volume bulk production to match your project needs.
Yes, we offer full CNC machining, cutting, and finishing services to deliver ready-to-install components that fit your exact specifications.
