Extruded Aluminum Double U Channel Profile | Custom Aluminum Extrusion Channel

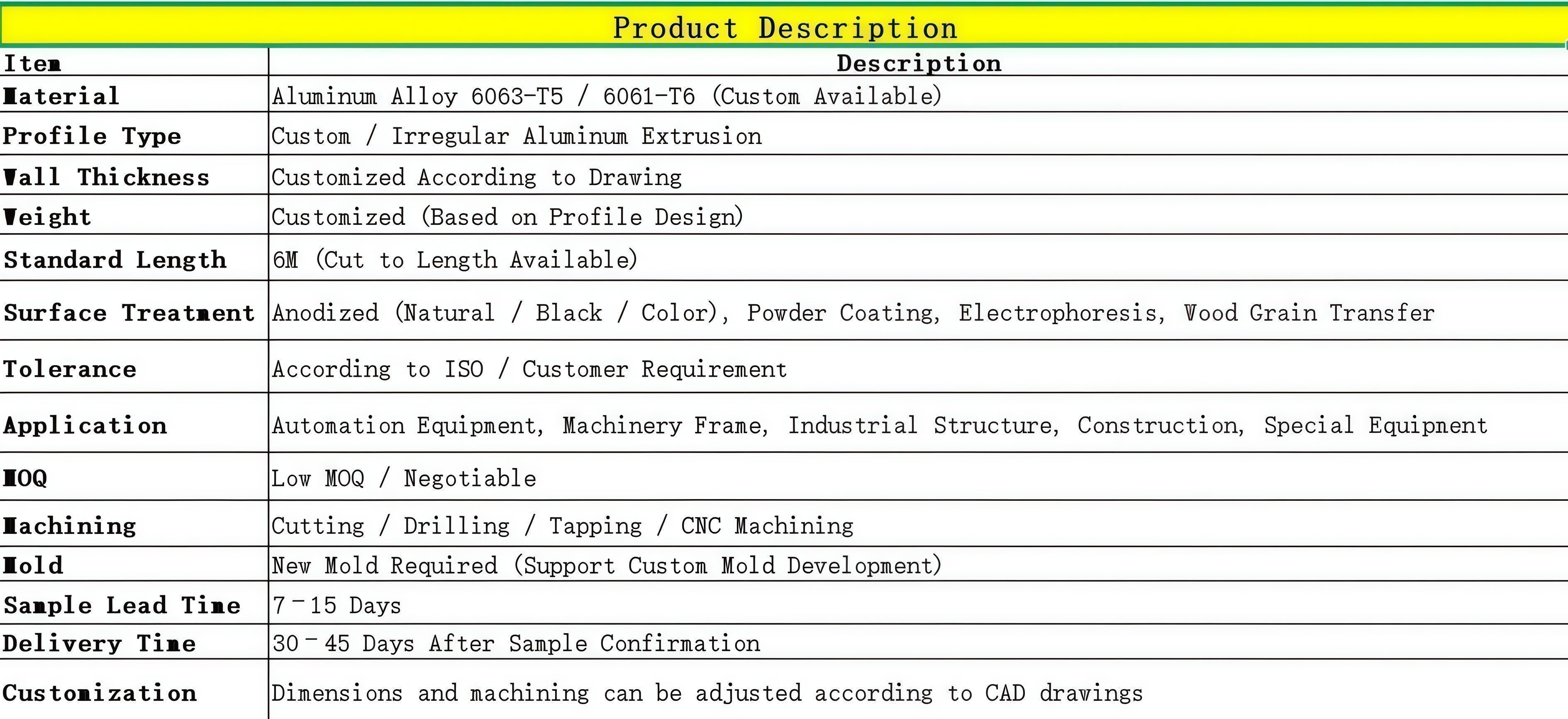

Product Parameter Table

Product Details

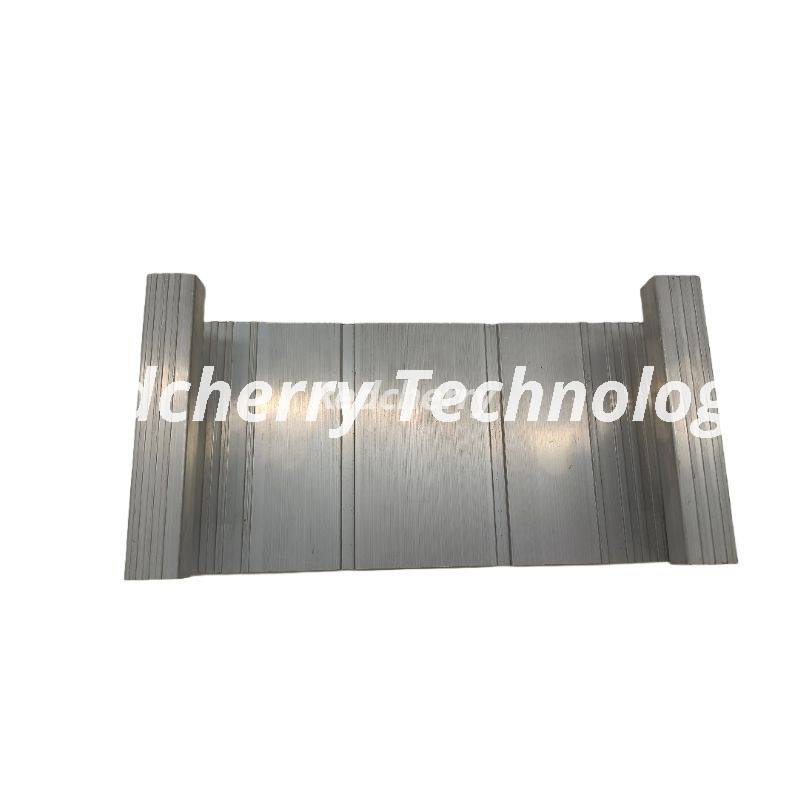

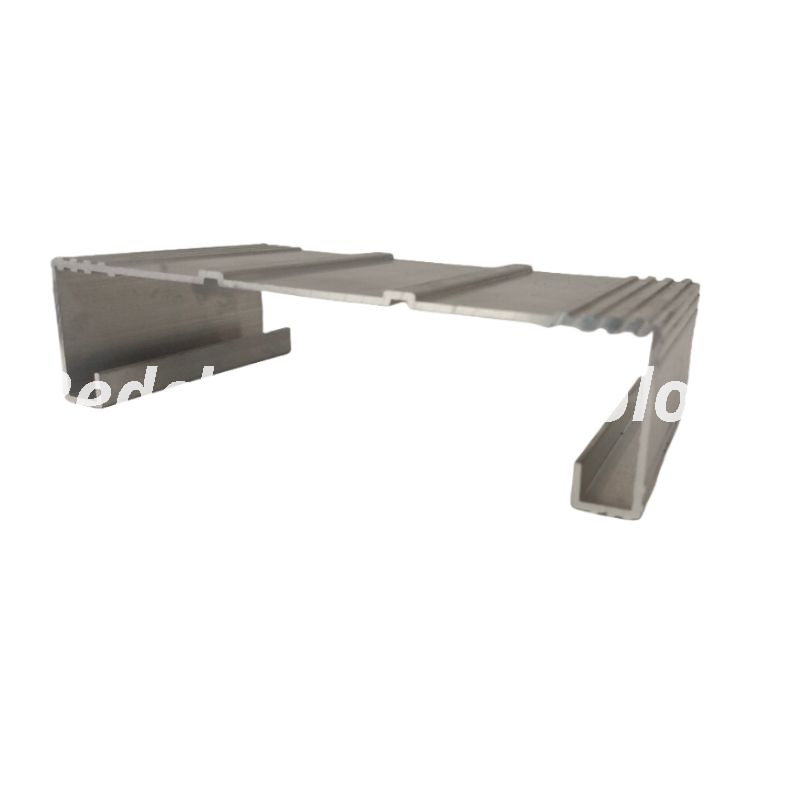

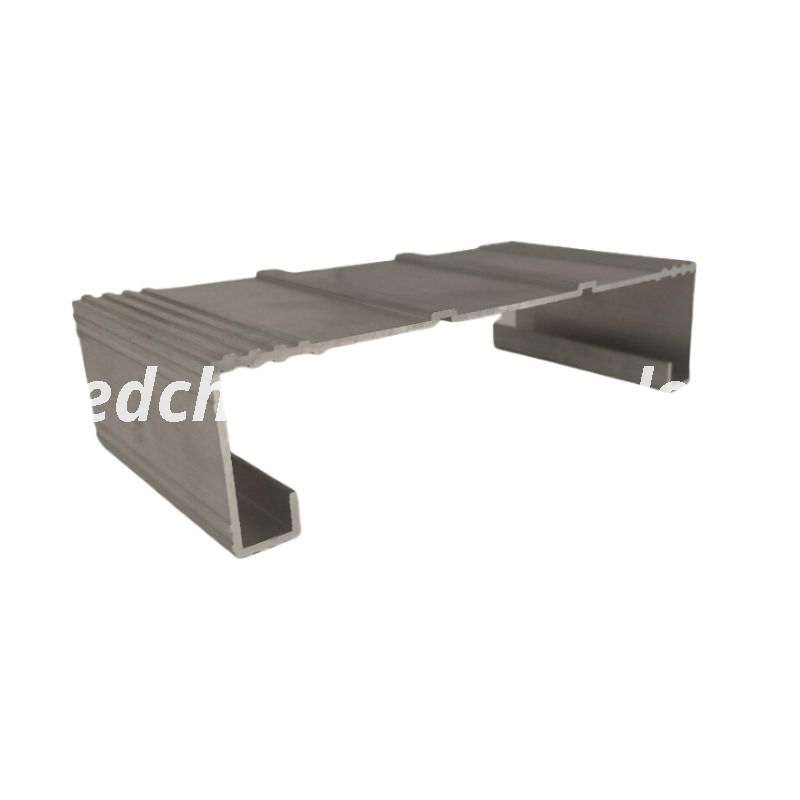

Extruded Aluminum Double U Channel is a specialized aluminum extrusion profile designed for structural support, sliding systems, and industrial frame assemblies. This aluminum double U channel features a symmetrical dual-channel structure that improves load distribution while allowing flexible installation of components, panels, or mechanical parts.

Manufactured through precision aluminum extrusion processes, the extruded aluminum channel offers excellent strength-to-weight ratio, corrosion resistance, and long service life. The unique profile geometry also allows easy integration with bolts, fasteners, and mounting accessories, making it suitable for a wide range of industrial aluminum channel applications.

Our company provides custom aluminum extrusion channel manufacturing, including die design, extrusion, CNC machining, drilling, cutting, and surface finishing such as anodizing or powder coating. Each aluminum extrusion profile can be produced according to customer drawings or technical specifications to ensure precise dimensions and structural reliability.

This custom aluminum double U channel is widely used in equipment frames, mechanical guides, rail structures, solar mounting systems, and architectural aluminum assemblies where lightweight and high structural stability are required.

Key Features

• High-strength extruded aluminum double U channel structure

• Lightweight yet durable aluminum extrusion profile

• Suitable for industrial frames and structural rails

• Supports custom aluminum extrusion channel design

• Compatible with machining processes such as CNC drilling, tapping, and cutting

• Available with anodized, mill finish, or powder coated surfaces

FAQ – Extruded Aluminum Double U Channel Profile | Custom Aluminum Extrusion Channel

1. What is an extruded aluminum double U channel profile?

An extruded aluminum double U channel profile is a structural aluminum extrusion with two parallel U-shaped channels. Manufacturers design it through an extrusion process to support sliding, guiding, framing, or protective functions in industrial and architectural applications.

Compared with a single U channel, the double U structure offers higher stability and more installation flexibility.

2. What is the main application of a double U aluminum channel profile?

Custom aluminum extrusion channel profiles are widely used in systems that require guidance, enclosure, or modular assembly. Common applications include:

• Sliding door and window systems

• Industrial machine frames

• Conveyor guide rails

• Protective edge structures

• Lighting fixture housings

• Automation equipment assemblies

Because of its dual-channel design, it supports multi-directional installation and component integration.

3. What are the advantages of a double U channel aluminum extrusion?

An extruded aluminum double U channel profile provides several advantages:

• Strong structural stability

• Flexible installation options

• Lightweight but high strength

• Excellent corrosion resistance

• Easy assembly and modular design

• Good compatibility with accessories and connectors

These advantages make it suitable for both industrial and architectural systems.

4. What materials are used for aluminum double U channel profiles?

Common alloys for custom aluminum extrusion channel profiles include:

• 6063 aluminum alloy – excellent surface finish and smooth extrusion

• 6061 aluminum alloy – higher strength for structural applications

• 6005 aluminum alloy – balanced strength and machinability

Manufacturers select the alloy based on load requirements and usage environment.

5. Can the aluminum double U channel profile be customized?

Yes, manufacturers can fully customize extruded aluminum channel profiles based on project requirements. Custom options include:

• Channel width and depth

• Wall thickness

• Profile length and shape

• Surface finish

• Tolerance requirements

• Additional machining features

Customization ensures compatibility with specific engineering and installation needs.

6. What surface treatments are available for aluminum channel profiles?

Common surface treatments for extruded aluminum double U channel profiles include:

• Anodizing (clear, black, or colored finishes)

• Powder coating (durable and decorative surface)

• Sandblasting (matte texture finish)

• Electrophoresis coating (smooth and uniform coating)

These treatments improve durability, corrosion resistance, and aesthetics.

7. Is the double U channel profile suitable for outdoor use?

Yes, aluminum extrusion channel profiles perform very well in outdoor environments. When combined with anodizing or powder coating, they offer:

• Strong weather resistance

• Anti-corrosion protection

• Long service life

• UV resistance

This makes them suitable for architectural and infrastructure applications.

8. Do you provide CNC machining for aluminum channel profiles?

Yes, most manufacturers offer CNC machining services for custom aluminum extrusion channels, including:

• Drilling and tapping

• Precision cutting

• Slot machining

• Edge finishing

This helps customers use the profile directly in assembly systems without extra processing.

9. What is the typical lead time for custom aluminum extrusion channel profiles?

The production time depends on complexity and order volume:

• Tooling (die development): 7–15 days

• Extrusion production: 15–25 days

• Surface treatment & machining: 5–10 days

More complex extruded aluminum profiles may require additional time for testing and adjustment.

10. Why choose aluminum instead of steel for channel profiles?

Compared with steel, aluminum extrusion channel profiles offer:

• Much lighter weight

• Better corrosion resistance

• Easier installation and machining

• More flexible design options

• Lower long-term maintenance cost

Therefore, aluminum is widely used in modern industrial and architectural systems.
