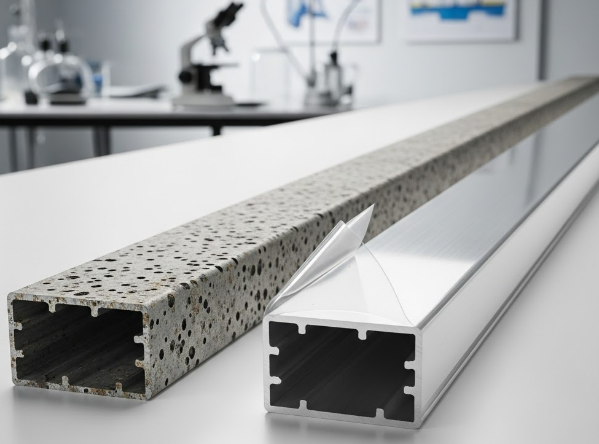

The structural integrity and aesthetic longevity of an aluminum profile depend heavily on the environmental conditions it faces and the preventative measures taken during the design phase. Pitting corrosion, a localized form of oxidative attack that creates holes or "pits" in the metal surface, is one of the most common challenges faced by engineers and architects using aluminum extrusion products. While aluminum naturally forms a protective oxide layer, exposure to high chloride environments or moisture stagnation can bypass this defense, leads to structural vulnerabilities.
Preventing pitting corrosion in aluminum profile designs requires a multifaceted approach focusing on high quality ally selection such as the 6000 series, implementing advanced surface treatments like anodizing or powder coating, and ensuring mechanical designs facilitate proper drainage to avoid moisture traps. By optimizing the aluminum extrusion geometry and selecting the correct temper, manufacturers can significantly enhance the durability of the aluminum profile in aggressive industrial or coastal environments.
Understanding the underlying mechanisms of localized corrosion is essential for any professional involved in the procurement or design of industrial components. This guide provides a technical deep dive into the specific methods used to safeguard aluminum extrusion products from degradation. From material science perspectives to practical construction tips, the following sections outline the industry standards for maintaining the performance of your aluminum profile.
To effectively avoid pitting corrosion in an aluminum profile, designers must prioritize the selection of magnesium and silicon based alloys while applying thick anodic coatings that reinforce the natural protective oxide film of the aluminum extrusion.
The first line of defense in any aluminum profile project is the chemistry of the metal itself. In the world of aluminum extrusion, the 600 series (Al-Mg-Si) is the industry standard for structural applications due to its excellent balance of strength and corrosion resistance. When designing an aluminum profile, avoiding alloys with high copper content (like the 2000 series) is vital, as copper can act as a cathode within the metal matrix, accelerating the pitting process. A high purity aluminum extrusion will naturally perform better in corrosive environments because there are fewer secondary phase particles to act as initiation sites for pits.
Surface treatment is perhaps the most critical step in protecting an aluminum profile from atmospheric attack. Anodizing is a popular electrochemical process that increases the thickness of the natural oxide layer on the aluminum extrusion. This creates a hard, porous-resistant surface that prevents chloride ions from reaching the base metal. Alternatively, high-quality powder coating provides a physical barrier. For an aluminum profile used in maritime or heavy industrial ones, a pre-treatment process involving chromate or non-chromate conversion coatings ensures that the top layer adheres perfectly to the aluminum extrusion, leaving no room for sub-surface moisture infiltration.
Even the most robust aluminum profile requires a design that considers the surrounding environment. Pitting is often caused by the accumulation of salt, dirt, and industrial pollutants that hold moisture against the surface of the aluminum extrusion. By incorporating regular cleaning cycles into the maintenance plan, the lifespan of the aluminum profile can be extended by decades. In your design specifications, ensure that the aluminum profile is accessible for inspection, as the removal of hygroscopic deposits is the simplest yet most effective way to prevent the chemical reactions that lead to pitting in an aluminum extrusion.
General recommendations for reducing corrosion in constructions involve implementing smart drainage systems in the aluminum profile geometry to prevent water stagnation and using insulating gaskets to stop galvanic reactions between the aluminum extrusion and dissimilar metals.
The physical shape of an aluminum extrusion plays a massive role in its susceptibility to decay. Professional aluminum profile designs avoid "U"-shaped channels or recesses where rainwater or condensation can collect. If a design requires a hollow aluminum extrusion, engineers must include weep holes or drainage paths when moisture is allowed to sit on an aluminum profile, it concentrates electrolytes, which eventually break down the protective surface and trigger pitting. Ensuring a slight slope in horizontal aluminum profile installations allows for natural runoff, keeping the aluminum extrusion dry.
In modern construction, an aluminum profile is rarely used in insulation; it's often joined to steel, copper or brass components. This creates a risk of galvanic corrosion, where the aluminum extrusion acts as an anode and wastes away to protect the other metal. To prevent this, designers should use non-conductive spacers, such as EPDM rubber gaskets or nylon washers, to separate the aluminum profile from noble metals. Furthermore, using stainless steel fasteners (300 series) with an aluminum profile is a standard recommendation, as the potential difference is lower, reducing the drive for corrosion in the aluminum extrusion assembly.
Corrosion often begins before the aluminum profile is even installed. During the shipping and storage phase, an aluminum extrusion is vulnerable to "white rust" or water staining if it is packed tightly without airflow. If condensation forms between stacked layers of an aluminum profile, the lack of oxygen prevents the natural oxide layer from reforming, leading to rapid surface oxidation. It's recommended to store every aluminum extrusion in a dry, temperature-controlled environment and to use intermittent spacers to allow air circulation around the aluminum profile until it is ready for final assembly.
To select the right protection or an aluminum profile, it is helpful to compare the various technical methods available for an aluminum extrusion. The table below outlines the performance of common treatments used in the aluminum profile industry.
The mechanical properties of an aluminum profile are defined by its temper, which also influences its chemical stability. For instance, a 6063-T6 aluminum extrusion is highly popular because the T6 heat treatment provides a stable microstructure. In certain high-stress environments, improper heat treatment can lead to intergranular corrosion, which can eventually manifest as surface pitting on the aluminum profile. Designers should specify the exact temperature required for their aluminum extrusion to ensure that the internal grain structure is optimized for both load-bearing and corrosion resistance.
The rate at which an aluminum profile corrodes is directly proportional to the concentration of sulfur dioxide and chlorides in the air. In urban settings, acid rain can etch the surface of an unprotected aluminum profile. In contrast, coastal aluminum extrusions face constant salt spray. When calculating the necessary thickness for an aluminum profile coating, refer to the ISO 9223 categories (CI to C5). AC5-M (Marine) environment requires a much thicker micron level for the anodize layer on the aluminum profile compared to ACL (Indoor) environment.
If you are interested in learning more about preventing corrosion, you should consult with a specialized manufacturer who understands the metallurgical properties of the 6000 series aluminum extrusion and can provide custom aluminum profile solutions tailored to your specific environmental challenges.
Selecting a supplier for your aluminum profile needs goes beyond just price. A professional manufacturer of aluminum extrusion products will offer in house testing, such as salt spray testing, to verify the durability of the aluminum profile finishes. By collaborating during the design phase, you can optimize the aluminum extrusion wall thickness and corner radii to minimize stress concentrations that often serve as the starting point for pitting corrosion. A high-quality aluminum profile is an investment in the long term viability of your project.
Different industries require different approaches to aluminum profile protection. For example, the medical industry may require a sterilized aluminum extrusion surface, while the solar energy sector needs an aluminum profile that can withstand 25 years of UV exposure and humidity. custom aluminum extrusion dies can be designed to include integrated drainage features directly into the aluminum profile, reducing the need for secondary machining. This integrated approach ensures that every aluminum profile produced meets the highest standards of functional excellence.
The field of aluminum extrusion is constantly evolving with alloys and coating technologies. Modern research into "smart coatings" for the aluminum profile involves inhibitors that are released when the surface is scratched, effectively healing the aluminum extrusion before pitting can begin. Staying informed about these advancements allows businesses to specify a more resilient aluminum profile for their future infrastructure needs. Whether you are building high-speed rail components or simple window frames, the quality of your aluminum extrusion remains the foundation of your success.
Maintaining a corrosion-free aluminum profile is a technical discipline that combines chemistry, geometry, and environmental awareness. To ensure your aluminum extrusion stays in peak condition, remember these key points:
1. Prioritize Alloy Integrity: Use 6000 series alloys for a balanced aluminum profile performance.
2. Optimize Geometry: Design the aluminum extrusion to shed water and avoid stagnant debris.
3. Apply Professional Finishes: Use anodizing or PVDF coatings for an aluminum profile in harsh zones.
4. Isolate Metals: Use gaskets to prevent the aluminum extrusion from reacting with steel or copper.
5. Regular Maintenance: Rinse the aluminum profile to remove corrosive salts and industrial pollutants.
By following these professional standards, your aluminum profile will maintain its structural strength and visual appeal for decades. The versatility of the aluminum extrusion makes it an ideal material for modern engineering, provided that the risks of pitting corrosion are managed through intelligent design and superior manufacturing processes. Focusing on the quality of the aluminum profile today prevents the costly failures of tomorrow.
