Product designers and procurement engineers frequently hit the limits of standard manufacturing processes when scaling down components. Traditional machining of micro-components is cost-prohibitive at scale, while standard extrusions cannot achieve the tight tolerances or ultra-thin walls required for advanced applications. The tooling breaks, the material warps, or the cycle times destroy project viability. In precision engineering, the demand for miniaturization requires components that deliver high strength-to-weight ratios and complex internal geometries without adding bulk.

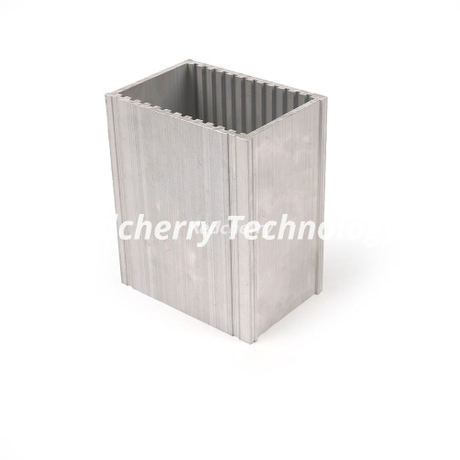

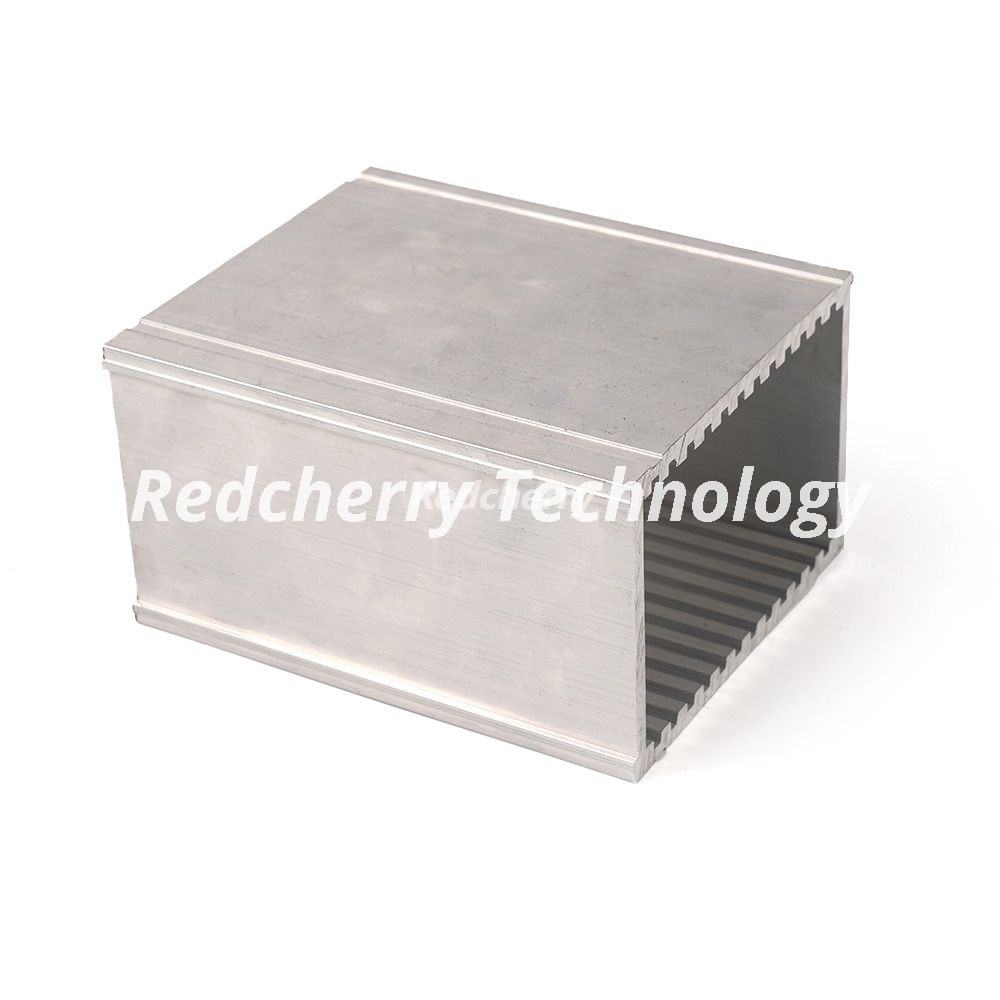

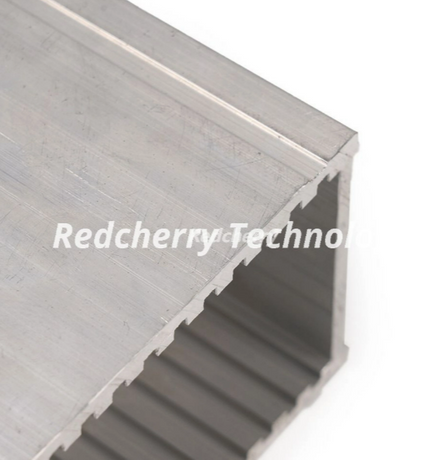

Specifying a micro Aluminum Extrusion Tube bridges the gap between high-precision requirements and scalable production. This guide evaluates the primary industrial applications, material trade-offs, and engineering criteria necessary to determine if micro extrusion is the correct manufacturing route for your next project. We evaluate the physical limits of the extrusion process, compare it against alternative manufacturing methods, and outline the risks associated with micro-scale production.
Application Specificity: Micro aluminum extrusion tubes are critical in medical devices, aerospace lightweighting, and high-density electronic thermal management due to their ability to feature complex multi-void hollows.
Tolerance Capabilities: Micro extrusions can achieve wall thicknesses as low as 0.010 inches (0.25 mm) and profile tolerances within ±0.001 inches, outperforming standard extrusion limits.
Cost-to-Volume Ratio: While initial custom die tooling requires upfront investment, the per-part cost drops significantly at high volumes compared to multi-axis CNC machining or metal 3D printing.
Risk Mitigation: Successful implementation requires early supplier involvement to navigate die design limitations, alloy selection (typically 6000-series), and post-extrusion secondary operations like direct part marking.
Differentiating between standard commercial extrusions and micro extrusions requires looking beyond basic shape profiles. Success in micro extrusion is defined by achieving miniature cross-sectional areas, ultra-thin walls, and precise concentricity in hollow profiles. Standard extrusions bear significant structural loads in construction or automotive framing. They utilize massive presses and prioritize volume over microscopic precision. Micro extrusions operate on an entirely different engineering baseline. They focus on housing delicate internal components, managing fluid dynamics at a micro-scale, or dissipating heat in highly restricted spatial footprints.
The exact engineering thresholds separate standard from micro. A true micro extrusion typically features a circumscribing circle size (CCS) under one inch. The CCS is the smallest circle that can completely enclose the cross-section of the extruded profile. Furthermore, the weight per foot of a micro profile often falls under 0.1 pounds. Wall thicknesses are pushed to the absolute limits of material science, frequently reaching down to 0.010 inches (0.25 mm). Achieving these dimensions requires tight control over the extrusion process, as any variance in temperature or pressure causes thin walls to collapse or tear as they exit the die.
The physics of micro extrusion demand specialized equipment. Standard extrusion presses operate with thousands of tons of force, pushing large heated billets through heavy steel dies. Applying this massive tonnage to a micro die causes catastrophic die deflection or complete failure. Instead, micro extrusions utilize specialized presses with lower tonnage and higher precision control. These presses manage the flow velocity of the heated aluminum billet with extreme accuracy. Proprietary die designs feature optimized bearing lengths and carefully calculated choke points. This allows the metal to flow evenly around the mandrels that form the hollow sections, creating a micro Aluminum Extrusion Tube without collapsing the delicate internal walls.
To fully grasp the technical divide, consider the specific operational parameters that define a micro extrusion run:
Billet Temperature Control: Micro extrusions require billet temperatures to be maintained within a highly narrow window, typically around 850°F to 900°F. A deviation of just 10 degrees alters the flow stress of the aluminum, leading to uneven wall thicknesses in the final tube.
Press Tonnage: While standard presses range from 2,000 to 5,000 tons, micro extrusion presses operate in the 300 to 1,000-ton range. This lower force prevents the delicate steel mandrels inside the die from snapping under pressure.
Die Bearing Polish: The bearing surfaces of a micro die must be polished to a mirror finish using wire EDM and hand-lapping techniques. Any microscopic burr on the die steel translates into a deep scratch on a 0.010-inch wall, effectively ruining the part.
Quench Rates: As the thin-walled tube exits the press, it must be cooled (quenched) immediately to lock in the metallurgical properties. However, aggressive water quenching distorts the micro profile. Engineers use precisely calibrated forced air or mist quenching to maintain dimensional stability.
The unique physical properties of micro-extruded profiles make them highly effective across several advanced industries. The ability to create complex, multi-void hollows in a lightweight, rigid material solves specific engineering challenges that plastics or machined metals cannot address.
In the medical field, miniaturization directly impacts patient outcomes. Micro extrusions are heavily utilized in catheter shafts, minimally invasive surgical tools, and precise fluid or gas delivery systems. The evaluation dimensions for medical applications focus strictly on biocompatibility, rigidity, and internal complexity. When manufactured from 6000-series alloys and properly anodized or coated, aluminum offers excellent biocompatibility.
Compared to polymer tubing, an aluminum profile provides superior pushability and torque transmission. Surgeons navigating delicate vascular pathways require instruments that respond exactly to their hand movements without twisting or lagging. Furthermore, the extrusion process allows for the creation of multi-lumen tubes. These distinct internal channels can simultaneously house micro-cables for cameras, deliver saline, and extract fluids within a single microscopic footprint. Machining a multi-lumen profile out of solid stainless steel at these dimensions is nearly impossible and highly inefficient.
Aerospace engineering is defined by the constant battle against weight. Micro extrusions are foundational in modern drone airframes, micro-actuator housings, and lightweight structural supports for satellites. The primary evaluation dimension here is maximizing the strength-to-weight ratio. Every gram saved on a UAV airframe directly translates to extended battery life, increased flight time, or expanded payload capacity.
A micro Aluminum Extrusion Tube provides the necessary structural rigidity to withstand flight vibrations and hard landings while maintaining a fraction of the weight of solid machined components or heavier steel alternatives. Engineers frequently use these tubes as the primary structural arms for quadcopters, routing the delicate motor wiring through the hollow center to protect it from environmental damage and rotor strikes.
As electronic components shrink and processing power increases, thermal management becomes a severe bottleneck. Micro extrusions are deployed as micro-channel heat exchangers, heat pipes, and LED thermal sinks. The evaluation dimension centers on utilizing the natural thermal conductivity of aluminum. In densely packed printed circuit board (PCB) environments, heat must be moved away from sensitive processors rapidly.
Micro-channel extrusions maximize the surface area available for heat dissipation within a highly confined space. Liquid or phase-change coolants can be pumped through the ultra-thin hollows of the extrusion, providing active cooling solutions that keep high-performance electronics within safe operating temperatures. The extrusion process allows for fin aspect ratios (the height of the cooling fin compared to its thickness) that are impossible to achieve through standard milling or casting.
The telecommunications infrastructure relies on the flawless transmission of light through fragile glass fibers. Micro extrusions serve as protective housings for sensitive fiber optic alignments and optical connectors. The evaluation dimensions for this sector are dimensional stability and resistance to environmental degradation.
Fiber optic alignments require tolerances measured in microns to prevent signal loss. Aluminum extrusions provide a rigid, dimensionally stable housing that does not warp under temperature fluctuations like plastics might. Additionally, aluminum's natural corrosion resistance ensures that these protective housings maintain their integrity even in harsh outdoor environments or subterranean installations. The coefficient of thermal expansion (CTE) of aluminum is predictable, allowing engineers to design mating components that expand and contract uniformly, preventing stress on the delicate glass fibers inside.
Selecting the correct manufacturing method requires comparing micro extrusion against alternative processes. Each approach carries distinct trade-offs regarding tolerance, material waste, scalability, and physical properties. You must evaluate the specific mechanical demands of your assembly before committing to a tooling path.
Multi-axis CNC machining is the traditional method for high-precision metal parts. Machining offers tighter absolute tolerances than extrusion, often holding dimensions to ten-thousandths of an inch. However, machining a micro hollow profile from solid bar stock wastes a tremendous amount of material and scales poorly in production. The cycle time to bore out a tiny, deep hole is extensive, and tool wear is high. Tool deflection becomes a massive issue when trying to machine a wall thickness of 0.010 inches; the end mill simply pushes the thin metal away rather than cutting it.
Extrusion offers a near-net shape with minimal waste. Once the die is cut and validated, extrusion allows for rapid, high-volume production of continuous lengths that can be quickly cut to size. You eliminate the hours of machine time required to hollow out a part.
Injection molding is highly scalable, and plastics offer lower weight and unit costs. However, plastics fail in applications requiring structural rigidity under thermal stress. Plastics exhibit creep, meaning they slowly deform under continuous mechanical load. Aluminum provides superior structural integrity and will not degrade or become brittle under UV exposure or extreme cold.
Additionally, an aluminum profile inherently provides Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI) shielding, which is mandatory for housing sensitive electronics. Plastics require secondary conductive coatings, such as copper or nickel plating, to achieve similar shielding. This adds time, cost, and complexity to the manufacturing process, and the coatings can flake off over time.
Additive manufacturing, specifically Direct Metal Laser Sintering (DMLS), excels at rapid functional prototypes and creating complex geometries without upfront tooling costs. However, it cannot match the high-volume cost efficiency of extrusion. The cycle times for printing metal parts are measured in hours or days, whereas extrusion produces feet of material per minute.
Furthermore, 3D printed metals exhibit different physical properties than wrought or extruded metals. They cannot match the exact thermal conductivity or the continuous structural grain flow of a true extruded tube. Extrusion aligns the grain structure of the aluminum along the axis of the profile, providing superior longitudinal strength and bending resistance. Printed parts often have microscopic porosity that compromises their structural integrity under high-pressure fluid applications.
Manufacturing Method |
Volume Scalability |
Material Waste |
Structural Grain Flow |
Thermal Conductivity |
|---|---|---|---|---|
Micro Extrusion |
Excellent (High Volume) |
Low |
Continuous, Aligned |
High |
CNC Machining |
Poor (Costly at Scale) |
High |
Interrupted by Cutting |
High |
Injection Molding |
Excellent (High Volume) |
Low |
N/A (Plastics) |
Very Low |
Metal 3D Printing |
Poor (Slow Cycle Times) |
Low |
Layered, Isotropic |
Variable/Lower |
Alloy selection dictates the success or failure of a micro extrusion run. You cannot force any aluminum grade through a micro die and expect a usable part.
6063 Aluminum: This is the undisputed industry standard for micro tubes. It offers excellent extrudability, meaning it flows smoothly through intricate die features without tearing. It provides an excellent surface finish and responds exceptionally well to secondary anodizing processes. Its lower flow stress at extrusion temperatures makes it ideal for complex multi-void hollows.
6061 Aluminum: Used when slightly higher mechanical strength is required. It is slightly more difficult to extrude than 6063 but still highly viable for micro profiles. It is the go-to choice for structural aerospace and medical components.
7000-Series Limitations: High-strength aerospace alloys (like 7075) are notoriously difficult to extrude at micro scales. The high concentrations of zinc and magnesium that give these alloys their strength also create immense flow resistance. Pushing a 7000-series billet through a micro die results in die breakage, severe surface tearing, or incomplete profile formation due to the rigid grain structure resisting the extreme deformation required by micro-tooling.
Transitioning a micro profile from a CAD model to a physical part involves navigating specific manufacturing realities on the shop floor. Failure to account for extrusion physics during the design phase results in production delays, broken tooling, and compromised parts.
The extrusion ratio is the cross-sectional area of the aluminum billet divided by the cross-sectional area of the extruded profile. Designing a profile with an extrusion ratio that is too high poses a severe risk. High ratios require immense pressure to force the metal through the die, leading to die breakage or severe surface defects on the part.
Mitigation requires adhering to strict tongue-ratio guidelines for hollow dies. The tongue is the piece of steel in the die that forms the hollow void. If the void is too deep and narrow, the pressure of the flowing aluminum snaps the tongue off entirely. A general rule in micro extrusion is to keep the tongue ratio (the length of the tongue divided by its base width) under 3:1. Consulting with the extrusion partner during the CAD phase is mandatory to adjust wall thicknesses and void geometries to ensure die survivability.
Micro extrusions exhibit die lines. These are microscopic longitudinal ridges caused by the metal sliding against the die bearing. While normal on standard extrusions, deep die lines on a micro tube create stress risers that lead to premature failure under vibration. Mitigation involves specifying acceptable surface roughness (Ra) values upfront so the die maker can polish the bearings accordingly.
Additionally, secondary operations like cutting, deburring, or CNC finishing carry the risk of distorting the delicate tube. Clamping a tube with a 0.010-inch wall thickness in a standard vise crushes it instantly. Post-processing requires specialized micro-cutting equipment, such as precision saws with specific tooth geometries, or wire EDM to cut the profiles without applying mechanical stress. Custom soft jaws must be machined to hold the parts during any secondary milling operations.
In highly regulated fields such as medical device manufacturing and aerospace, strict traceability is required down to the individual component level. Direct printing or laser etching on the Aluminum Extrusion Tube is critical. Use direct marking rather than paper or plastic pressure-sensitive labels.
Labels interfere with the micro-tolerances required for tight-fit assemblies. They add unnecessary bulk to miniature components and degrade rapidly in harsh environments, such as aerospace fluid bays or medical autoclaves. Laser etching provides a permanent, zero-profile mark that survives anodizing, chemical cleaning, and harsh operating conditions without altering the dimensional integrity of the tube.
Verifying the dimensions of a micro extrusion requires advanced metrology. Standard calipers and micrometers easily crush thin walls or fail to reach internal hollow geometries. Navigating certifications like ISO 9001, AS9100 for aerospace, or ISO 13485 for medical devices requires ensuring the vendor has appropriate in-house metrology.
This includes Coordinate Measuring Machines (CMM) equipped with low-force touch probes or, preferably, non-contact optical comparators and vision systems. These systems use high-resolution cameras and lasers to verify micro-tolerances, concentricity, and wall thicknesses without physically distorting the part during the measurement process.
Not all extrusion houses are equipped to handle micro profiles. Assessing extrusion partner capabilities requires looking at their specific equipment, engineering support, and operational focus. Sending a micro profile design to a standard commercial extruder usually results in a no-quote or a failed production run.
Evaluate vendors based on press size. Large presses cannot handle micro dies effectively. A vendor must have dedicated low-tonnage presses specifically calibrated for micro extrusion. Furthermore, in-house die manufacturing is a significant advantage. When a vendor designs and cuts their own dies using in-house wire EDM, they iterate rapidly during the prototyping phase and maintain tighter control over die bearing polish and maintenance. Integrated secondary operations, such as precision cutting, deburring, and anodizing under one roof, reduce handling risks and streamline the supply chain.
Moving from prototyping to high-volume scalability requires a structured approach. Structure a pilot run to validate the die design and produce functional prototypes. This pilot run allows engineering teams to test the profile's performance in the actual assembly, verify thermal or structural characteristics, and confirm that secondary operations do not distort the part. Conduct a full First Article Inspection (FAI) on this pilot run. Only after the pilot run meets all Critical-to-Function (CTF) criteria should you commit to full-scale production runs.
Finalize 2D and 3D CAD models, ensuring all hollow voids respect standard tongue-ratio guidelines to prevent die failure during the extrusion process.
Identify and document all Critical-to-Function (CTF) dimensions and acceptable surface roughness (Ra) values directly on your engineering drawings.
Request a formal Design for Manufacturability (DFM) review from a specialized micro-extrusion manufacturer to validate alloy selection and wall thickness limits.
Structure a pilot run to validate the custom die, perform a First Article Inspection (FAI), and verify the performance of the extruded profile in your final assembly.
A: The minimum wall thickness is typically around 0.010 to 0.020 inches (0.25 to 0.50 mm). This limit depends heavily on the specific alloy chosen, the complexity of the internal hollow profile, and the capabilities of the extrusion press.
A: Micro extrusions utilize specialized low-tonnage presses and custom proprietary dies. This equipment allows them to achieve significantly smaller profiles, ultra-thin walls, and tighter tolerances than standard commercial tubing, which is extruded on massive, high-tonnage presses.
A: Alloys 6063 and 6061 are the preferred choices. They offer high extrudability, allowing the heated metal to flow smoothly into delicate die features without tearing, while still providing excellent structural rigidity and surface finish.
A: Yes, standard finishing processes like clear or hardcoat anodizing can be applied. However, the dimensional changes caused by the anodizing layer must be carefully accounted for in the initial tolerance specifications to ensure the final part fits the assembly.
A: Tooling and initial sample runs generally take 3 to 6 weeks. This timeline depends on the complexity of the die design, the need for iterative testing, and the specific vendor's current production backlog.
A: Due to the upfront cost of custom dies and press setup time, micro extrusions are most cost-effective for medium to high-volume production runs. While prototyping runs are necessary for validation, the per-part cost only becomes highly competitive at scale.
