Manufacturing Processes for Tube Fins
Manufacturing methods influence fin quality, performance, and cost. Key processes include:
1.Extrusion: Produces fins directly from metal billets, ensuring strong bonding and uniform thickness.
2.Brazing: Attaches fins to tubes using a filler metal, common in helical and stamped fin tubes. Controlled brazing improves durability and heat transfer.
3.Welding: Provides a robust mechanical bond but may cause localized heat effects.
4.Mechanical attachment: Fins are pressed or wrapped around tubes; simpler but may have weaker heat transfer than brazed fins.
5.Stamping and forming: Used for plate and segmental fins, allowing complex shapes for specialized applications.
Advanced processes like in-house atmospheric brazing furnaces maintain quality and reduce turnaround time, crucial in high-performance industries.
Impact of Tube Fin Design on Heat Transfer Efficiency
Surface Area and Heat Transfer

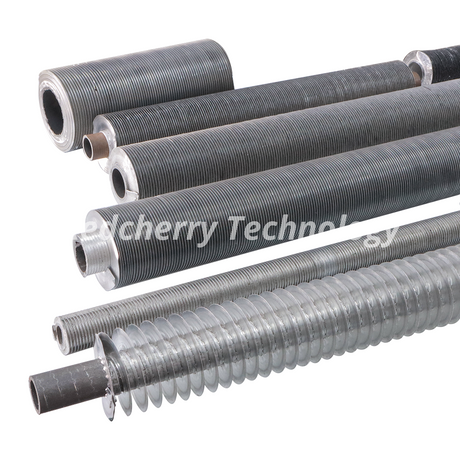

Tube fins improve heat transfer primarily by increasing the surface area exposed to the fluid. A larger surface area allows more heat to be exchanged between the tube and the surrounding medium. For example, helical fins wrap around the tube, creating a continuous extended surface that enhances turbulence and heat exchange. Straight fins, while simpler, add significant surface area directly. Segmental and plate fins provide customized shapes that can optimize surface area for specific flow conditions.
More surface area means more efficient heat transfer, but it also affects fluid flow and pressure drop. Designers must balance fin size, spacing, and shape to maximize heat transfer without causing excessive resistance to fluid flow.
Thermal Conductivity and Material Choice
The material used for tube fins has a direct impact on heat transfer efficiency. Materials with high thermal conductivity, such as copper and aluminum, transfer heat quickly from the tube to the fin surface and then to the fluid. Copper alloys, widely used in power generation and petrochemical industries, offer excellent conductivity and corrosion resistance. Aluminum fins are lighter and cost-effective, commonly found in HVAC systems.
Stainless steel and nickel alloys have lower thermal conductivity but excel in durability and corrosion resistance. They suit harsh environments like marine or chemical processing, where longevity is critical. Carbon steel is strong and economical but often requires coatings to prevent corrosion and maintain performance.
Choosing the right material balances heat transfer efficiency, environmental resistance, and cost, depending on the application.
Design Innovations and Their Effects
Recent innovations in tube fin design focus on enhancing heat transfer while addressing durability and cost. Some advancements include:
1.Micro-fin structures: Tiny fins increase surface area dramatically without significantly increasing size or weight.
2.Enhanced fin geometries: Wavy, serrated, or louvered fins promote turbulence, improving heat transfer rates.
3.Composite materials and coatings: Combining metals or applying specialized coatings improves thermal performance and corrosion resistance.
4.Optimized fin spacing: Advanced simulations help determine ideal fin spacing to balance heat transfer and fluid dynamics.
These innovations can boost heat exchanger efficiency, reduce energy consumption, and extend equipment lifespan. For instance, helically wound fins with improved brazing techniques ensure a strong bond and better heat transfer, widely used in industrial heat exchangers.
Applications of Finned Tubes in Various Industries
Finned tubes play a vital role across many industries by improving heat transfer efficiency. Their design increases the surface area, helping systems cool or heat fluids efficiently. Here’s a closer look at key industries benefiting from finned tubes:
Power Generation
In power plants, finned tubes are essential components in boilers, economizers, and air preheaters. They help recover heat from flue gases, boosting overall plant efficiency. Materials like copper alloys or stainless steel are common here due to their excellent thermal conductivity and corrosion resistance. Finned tubes improve heat exchange, leading to energy savings and reduced emissions.
Petrochemical Industry
The petrochemical sector relies heavily on heat exchangers for processes like distillation, condensation, and cooling. Finned tubes handle harsh chemicals and high temperatures, often made from durable alloys such as nickel or stainless steel. Their enhanced surface area speeds up heat transfer, improving process efficiency and safety.
HVAC Systems
Heating, ventilation, and air conditioning systems use finned tubes to regulate indoor temperatures efficiently. Aluminum fins are popular here because they are lightweight and cost-effective. Finned tubes help cool or heat air by transferring heat between refrigerants and airflows, ensuring comfort and energy savings in buildings.
Marine Applications
Marine environments demand materials resistant to corrosion from saltwater and extreme weather. Stainless steel and nickel alloy finned tubes are common in shipboard heat exchangers and cooling systems. They maintain performance despite harsh conditions, aiding engine cooling and other thermal management tasks critical for vessel safety and efficiency.
Challenges in Tube Fin Design
Corrosion Resistance
Corrosion poses a major challenge in tube fin design. Fins often operate in harsh environments, including exposure to moisture, chemicals, and high temperatures. Corrosion can degrade fin material, reducing heat transfer efficiency and shortening service life. Selecting corrosion-resistant materials, such as stainless steel, nickel alloys, or specially coated copper, helps combat this issue. Protective coatings like epoxy or anodizing can also extend fin durability. However, coatings must maintain good thermal conductivity and adhesion to avoid performance loss. Designers must carefully evaluate the environment to choose materials and coatings that resist corrosion while supporting efficient heat transfer.
Durability in Extreme Conditions
Tube fins must endure extreme operating conditions, including high temperatures, pressure fluctuations, and mechanical stresses. Thermal cycling causes expansion and contraction that can weaken fin-tube bonds or cause cracks. Mechanical vibrations and impacts may also damage fins, especially in industrial or marine settings. Materials like nickel alloys and stainless steel offer strength and resilience under such stresses. Manufacturing methods, such as brazing or welding, must ensure strong, lasting attachments between fins and tubes. Additionally, fin geometry should balance maximizing surface area and maintaining structural integrity. Durability is critical to avoid costly downtime and repairs.
Cost-Effectiveness
Balancing performance and cost is a significant challenge in tube fin design. High-performance materials and advanced manufacturing processes often increase costs. For example, copper and nickel alloys provide excellent heat transfer and corrosion resistance but are more expensive than carbon steel or aluminum. Complex fin shapes or precision brazing add to production expenses. Designers must weigh upfront costs against long-term benefits like energy savings, maintenance reduction, and equipment lifespan. Cost-effective solutions may involve using hybrid materials, selective coatings, or optimized fin designs that deliver acceptable performance without excessive expense. Understanding the specific application needs helps prioritize cost versus performance.
Advancements in Tube Fin Technology
New Materials and Coatings
Recent progress in tube fin technology includes the development of new materials and advanced coatings that improve heat transfer and durability. For example, composite materials combine metals like aluminum and copper to optimize thermal conductivity while reducing weight. Specialized coatings, such as ceramic or nano-layered films, enhance corrosion resistance without compromising heat transfer. These coatings protect fins in harsh environments, extending their lifespan in industries like petrochemical and marine applications.
Additionally, innovations in copper alloys and nickel-based materials offer higher strength and better resistance to oxidation at elevated temperatures. These enhancements allow finned tubes to operate efficiently in more extreme conditions, reducing maintenance needs and downtime.
Improved Manufacturing Techniques
Manufacturing technology for tube fins has evolved to ensure better quality, precision, and cost-effectiveness. Advanced brazing methods, such as controlled atmosphere brazing, create stronger, more uniform bonds between fins and tubes. This leads to improved thermal conductivity and mechanical stability.
Automation and computer-controlled stamping and forming processes allow for complex fin geometries, such as micro-fins or serrated edges, which increase surface area and promote turbulence for better heat transfer. Additionally, in-house brazing furnaces enable manufacturers to maintain strict quality control and faster turnaround times, essential for industries requiring reliable and high-performance heat exchangers.
Laser welding and additive manufacturing techniques are also emerging, offering precise fin attachment and the ability to produce customized fin designs tailored to specific applications.
Future Trends in Tube Fin Design
Looking ahead, tube fin technology is moving toward smarter, more adaptable designs. Researchers are exploring the use of nanotechnology to create fins with surfaces engineered at the microscopic level to maximize heat transfer and minimize fouling.
There is also growing interest in integrating sensors within finned tubes to monitor temperature, corrosion, and mechanical stress in real time. Such smart fins could enable predictive maintenance, reducing unexpected failures and optimizing operational efficiency.
Sustainability is another focus area. New materials and manufacturing processes aim to lower environmental impact by reducing energy consumption during production and improving recyclability.
Finally, simulation and AI-driven design tools will continue to refine fin geometries and material selection, balancing heat transfer performance, durability, and cost more effectively than ever before.
Comparing Different Tube Fin Designs
Performance Metrics
When comparing tube fin designs, several key performance metrics help determine their effectiveness:
1.Heat Transfer Rate: Measures how efficiently a fin design transfers heat from the tube to the surrounding fluid. Helical fins often outperform straight fins due to enhanced turbulence, which improves heat exchange.
2.Pressure Drop: The resistance a fin design causes to fluid flow. Designs with larger or closely spaced fins may increase pressure drop, affecting system efficiency.
3.Thermal Resistance: Lower thermal resistance indicates better heat conduction through the fin material and interface.
4.Mechanical Strength: Important for durability in high-stress environments. L-foot fins provide strong mechanical bonds, enhancing longevity.
5.Corrosion Resistance: Affects how well fins maintain performance over time, especially in harsh environments.
These metrics vary depending on fin geometry, material, and manufacturing quality. For example, micro-finned designs increase surface area and heat transfer but may raise pressure drop.
Cost Analysis
Cost plays a crucial role in selecting tube fin designs. Factors influencing cost include:
1.Material Costs: Copper and nickel alloys cost more but offer superior thermal conductivity and corrosion resistance. Aluminum is more affordable but less durable in harsh conditions.
2.Manufacturing Complexity: Brazed or welded fins require more precise and costly processes than mechanically attached fins.
3.Fin Geometry: Complex shapes like serrated or micro-fins may increase production costs due to specialized tooling.
4.Maintenance and Lifespan: Higher upfront costs may be justified by longer service life and reduced maintenance.
Balancing cost and performance is vital. For instance, HVAC systems often use aluminum straight fins for cost-effectiveness, while power plants invest in copper helical fins for maximum efficiency.
Suitability for Specific Applications
Different tube fin designs suit various industrial needs based on operating conditions:
1.Power Generation: Requires fins with high thermal conductivity and corrosion resistance, such as copper alloys with helical or L-foot designs, to handle high temperatures and aggressive environments.
2.Petrochemical Industry: Demands durable fins like stainless steel stamped fins that resist chemical corrosion and mechanical stress.
3.HVAC Systems: Favor lightweight, cost-effective aluminum straight fins or plate fins for moderate heat transfer needs.
4.Marine Applications: Need corrosion-resistant materials like nickel alloys combined with robust fin designs, such as welded or brazed fins, to withstand saltwater exposure.
Selecting the right fin design depends on factors like fluid type, temperature, pressure, and environmental exposure. Customization often improves performance and lifespan.
Conclusion
In understanding tube fin design, key points include the impact of surface area, material choice, and design innovations on heat transfer efficiency. Choosing the right tube fin design is crucial for optimizing performance in various applications, balancing factors like heat transfer rate, pressure drop, and corrosion resistance. Future directions in tube fin research focus on advanced materials, coatings, and manufacturing techniques.
Chiying Technology offers innovative products that enhance heat transfer performance, providing value through superior design and durability in challenging environments.
FAQ
Q: What is a finned tube?
A: A finned tube is a type of heat exchanger component where fins are attached to a tube to increase surface area and improve heat transfer efficiency.
Q: How does finned tube design affect heat transfer?
A: Finned tube design affects heat transfer by increasing surface area and promoting turbulence, which enhances heat exchange between the tube and fluid.
Q: Why are finned tubes used in HVAC systems?
A: Finned tubes are used in HVAC systems to efficiently transfer heat between refrigerants and airflows, optimizing indoor temperature regulation.
Q: What materials are common for finned tubes?
A: Common materials for finned tubes include copper, aluminum, stainless steel, and nickel alloys, chosen for their thermal conductivity and corrosion resistance.
