Aluminum extrusions are one of the most versatile and widely used materials in modern engineering. Their combination of light weight, strength, and corrosion resistance makes them indispensable in construction, machinery, energy, and automotive industries.
Among various extrusion systems, T-slot aluminum extrusions stand out for their flexibility and modular design. They allow quick assembly of machine frames, enclosures, workstations, and even architectural structures without welding or heavy tools.

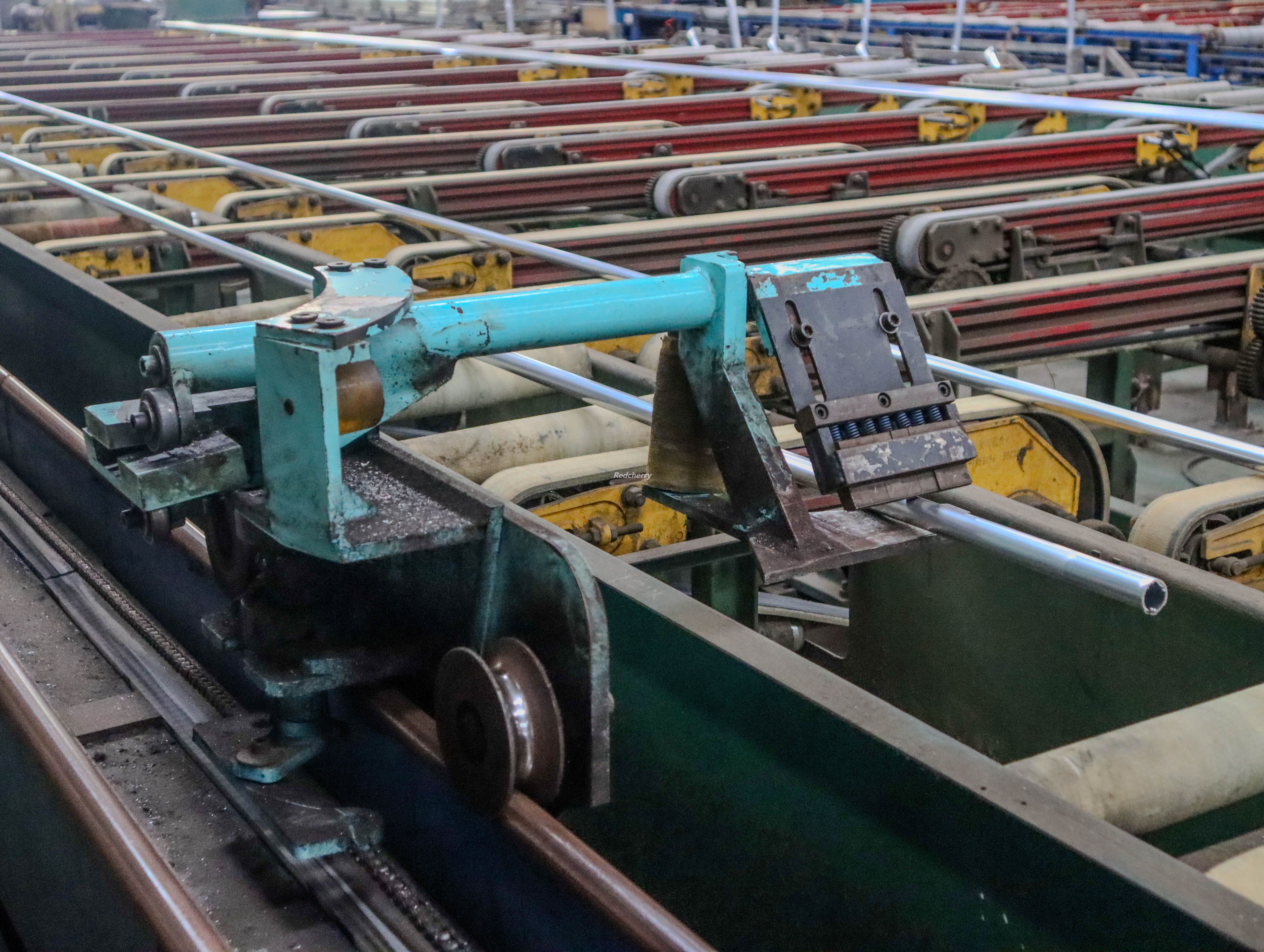

The extrusion process begins with aluminum billets heated to around 450–500°C. The softened aluminum is forced through a die that shapes it into the desired cross-section. After extrusion, the profiles are cooled, stretched, aged, and then surface-treated to achieve the required mechanical properties and finish.

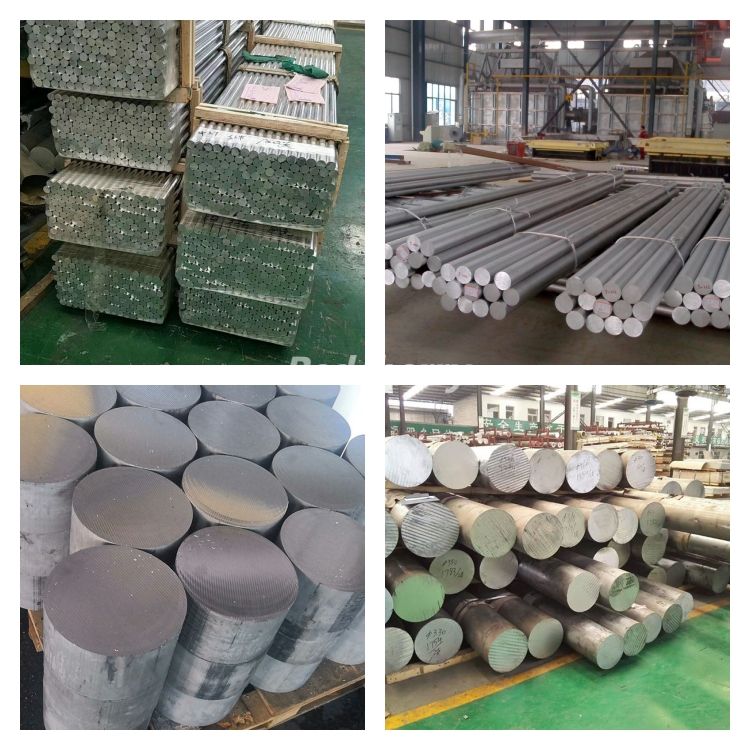

Most extrusion profiles use 6000-series aluminum, such as 6061, 6063, and 6082. These alloys offer an excellent balance between strength, machinability, and corrosion resistance.
| Alloy | Characteristics | Typical Applications |
| 6063 | High surface quality, easy to anodize | Architectural profiles, doors, windows |
| 6061 | Strong and machinable | Industrial frames, machinery, transport parts |
| 6082 | High strength, good corrosion resistance | Structural components, bridges, platforms |

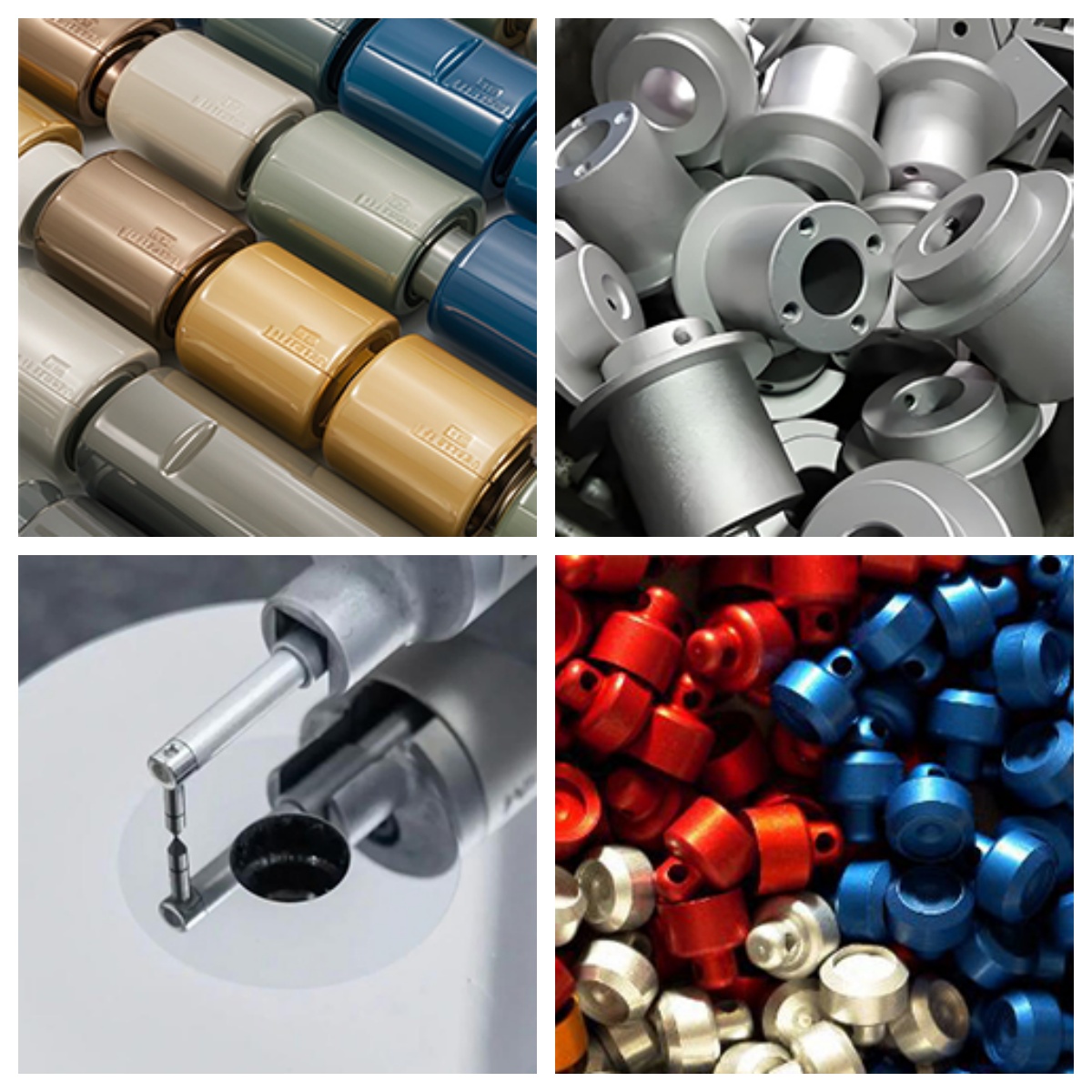

Surface finishing enhances both appearance and corrosion resistance. The most common types include:
1.Anodizing – creates a protective oxide layer, available in various colors.
2.Powder coating – provides durable, colorful, UV-resistant coating.
3.Electrophoresis – used for high-end decorative finishes.
4.Wood grain transfer – often applied to furniture or building.
T-slot aluminum extrusions are profiles with one or more T-shaped grooves along their length. These slots allow bolts and fasteners to slide in, making it easy to assemble modular structures without welding.
1.Easy to assemble and reconfigure
2.Lightweight yet strong
3.Compatible with standard connectors and accessories
4.Ideal for automation equipment, workstations, display racks, and solar frames
T-slot systems can be custom-designed based on specific drawings or project requirements. Engineers can request unique cross-sections, slot sizes, or strength levels. If no existing die fits the design, new custom dies (molds) can be produced to match the required geometry.
With the global demand for lightweight and sustainable materials, the aluminum extrusion industry continues to evolve toward:
1.High-strength, thin-wall profiles for electric vehicles and aerospace
2.Prefabricated building systems using modular extrusions
3.Recycled aluminum usage to reduce carbon emissions
4.Advanced coating technologies for durability and aesthetics
Q1: What’s the main difference between T-slot and regular aluminum profiles?
T-slot profiles allow mechanical connections using fasteners rather than welding, providing modular flexibility.
Q2: Can T-slot profiles be customized?
Yes. Custom extrusion and die-making services can produce unique shapes and slot dimensions according to drawings.
Q3: What is the typical alloy for T-slot profiles?
6063-T5 and 6061-T6 are commonly used due to their excellent strength and surface finishing quality.
Aluminum extrusions, especially T-slot systems, combine engineering flexibility with mechanical strength. Whether for industrial automation, construction frameworks, or solar mounting systems, their adaptability and recyclability make them a cornerstone of modern design.
