What Makes a Good Heat-Sink Design? Essential Principles for Effective Cooling

When it comes to heat-sink design — whether for LED fixtures, power electronics, industrial controls or custom devices — not all heat sinks are equal. A well-designed heat-sink can ensure stable thermal performance, longevity, and efficiency; a poor design may lead to overheating, inefficiency, or even failure. Below are the key aspects that define a “good” heat-sink design.

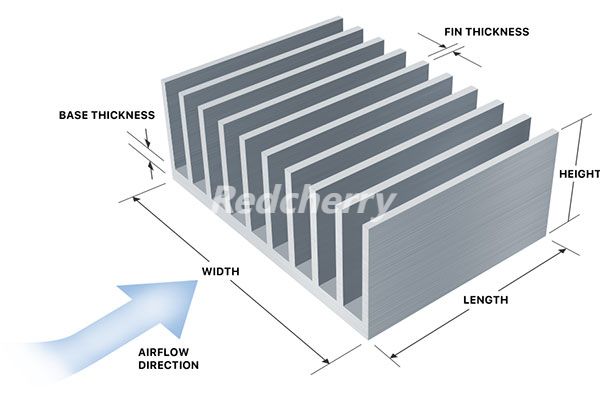

1. Fin Design — geometry, spacing, thickness, and shape

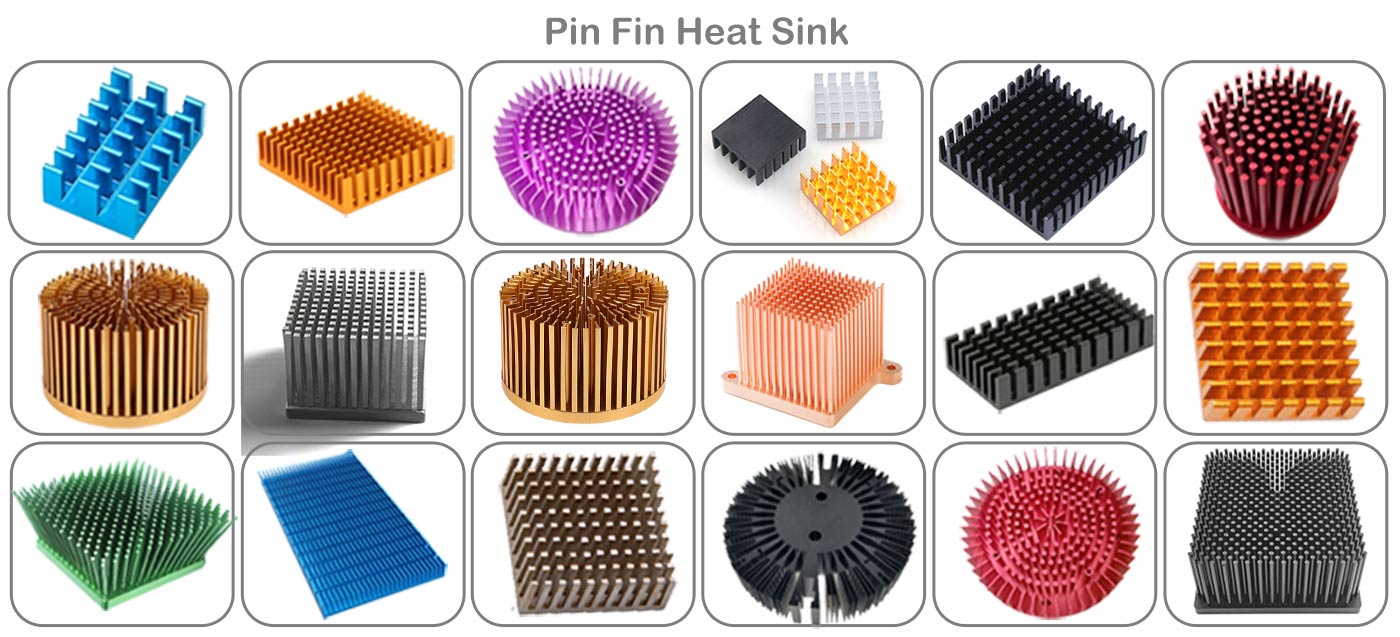

Fin geometry & shape matter. Straight fins are common and easy to manufacture, performing well under consistent airflow. But in many contexts — especially with forced airflow or compact housings — non-standard fin shapes (such as pin-fins, offset or staggered-fins, wavy or louvered fins) can enhance turbulence, improve airflow mixing, and boost heat transfer efficiency. BEAUSINO+2astrocnc.com+2

1. Spacing between fins must be optimized. For passive (natural convection) cooling, fins that are too dense block airflow; for active (fan or forced airflow) cooling, overly sparse fins waste surface area. Good design chooses fin spacing appropriate to airflow conditions. For example, many guidelines recommend wider spacing (~8–12 mm) for natural convection, while tighter spacing (2–5 mm) works when forced airflow is present. PTSMAKE+2Customized Heatsink Suppliers | Ecotherm+2

2. Fin thickness & height must balance surface area, conduction, and mechanical strength. Thin fins increase surface area and save material, but they must still conduct heat effectively and be sturdy enough for handling and manufacturing tolerances. Fins that are too thick may reduce surface-to-volume ratio and waste conduction potential. Tuling+2Machining Custom+2

In summary: a good fin design seeks a balance — maximizing surface area and airflow, while ensuring fins conduct heat efficiently and survive production or installation stresses.

2. Base & Heat Source Interface — ensure good thermal conduction

1. Base thickness and flatness are critical. The heat sink’s base must spread the heat from the source (LED, power module, chip etc.) evenly into the fin array. If the base is too thin, or its surface is uneven, heat distribution becomes poor, and some fins will underperform — leading to hotspots or uneven cooling. Tuling+2RayPCB+2

2. Good contact with heat source is non-negotiable. Use appropriate thermal interface material (thermal paste/pad) or ensure tight mechanical contact — otherwise conduction losses at the interface will degrade overall heat-sink efficiency sharply. Tuling+1

A reliable thermal path — from source → base → fins → air — is the foundation of any effective heat-sink. Without that, even the fanciest fin design won’t help.

3. Match Design to Cooling Mode & Airflow Conditions

The “best” heat sink depends on the actual cooling environment:

1. Natural convection (passive cooling, no fan): Use vertical fins, wider spacing, taller fins — to allow hot air to naturally rise and fresh air enter between fins. In such cases, overly dense fins or small spacing hinder air circulation and reduce effectiveness. Micforg+2Customized Heatsink Suppliers | Ecotherm+2

2. Forced convection (with fan / airflow): You can afford tighter fin spacing, more fins, and use turbulence-enhancing fin shapes (wavy, pin-fin, offset) to maximize surface area and convective transfer. astrocnc.com+2HTS-铝材+2

Therefore — design must consider the real installation environment & airflow method (passive vs active) before deciding fin geometry, spacing, height, and orientation.

4. Balance Thermal Performance, Manufacturability, Cost & Practical Use

A conceptually “ideal” heat sink isn’t always the best real-world solution. Trade-offs must be considered:

1. Very thin/tall fins or complex fin shapes may enhance theoretical performance — but may be fragile, difficult or expensive to manufacture, or easily damaged during handling/installation. Winshare Thermal+2Machining Custom+2

2. In dusty or dirty environments, tightly spaced fins can accumulate debris or block airflow — reducing long-term reliability. Simpler, more robust fin designs may be more appropriate. Winshare Thermal+1

3. Structural strength, base thickness, ease of mounting, and compatibility with housing/enclosure often matter as much as thermal performance — especially in industrial, LED lighting, or outdoor applications. SinoExtrude+1

Good design is always a balance — between thermal efficiency, durability, manufacturing cost, installation reality, and maintenance needs.
