Large-scale aerospace manufacturing operates under strict engineering constraints. Every ounce of weight directly impacts payload capacity, fuel efficiency, and mission viability. Standard materials and fabrication methods hit their limits when dealing with flight-critical structures. Basic alloys fail under the extreme fatigue, dynamic stress, and thermal loads required for commercial, defense, and next-generation aerospace applications like commercial spaceflight and advanced air mobility platforms.
Heat-treatable hard alloy aluminum extrusions provide the definitive solution for these high-stress frameworks. Specifying complex custom profiles and a high-strength Aluminum Extrusion Tube forms the critical path to achieving necessary strength-to-weight ratios. This approach ensures maximum structural integrity without sacrificing dimensional precision. Engineers rely on these advanced metallurgical solutions to build airframes that withstand decades of continuous operation.
Alloy Selection Dictates Performance: Heat-treatable hard alloys like 7075, 7050, and 2024 provide the essential tensile strength and fatigue resistance required for flight-critical aerospace structures.
Precision Reduces Assembly Weight: Specifying a tight-tolerance aluminum extrusion tube or complex profile minimizes the need for secondary machining and heavy mechanical fasteners.
Extrudability vs. Strength Trade-offs: Hard alloys present unique manufacturing challenges, requiring specialized press capacities and precise thermal management to prevent residual stress.
Specialized Vendor Compliance is Non-Negotiable: Partnering with a dedicated aircraft extrusion company—rather than a general commercial extruder—is gated by strict adherence to AS9100, NADCAP, and rigorous metallurgical testing standards.
Aerospace structures endure severe physical environments. Wing spars, fuselage stringers, and seating tracks carry massive dynamic loads during flight. These components must meet strict mechanical thresholds to ensure passenger safety and operational success. Yield strength and ultimate tensile strength serve as the primary baseline metrics. However, strength alone cannot guarantee structural survival at high altitudes.
Flight-critical components require exceptionally high fracture toughness. Materials must resist the rapid propagation of microscopic cracks. High-altitude environments also introduce severe moisture and temperature fluctuations. This creates ideal conditions for stress-corrosion cracking (SCC). Aerospace profiles must resist SCC while under continuous cyclic loading. Engineers must maximize structural integrity while strictly adhering to aggressive weight reduction mandates. Every structural decision revolves around this balance.
To meet these demands, aerospace engineers evaluate materials against specific failure modes:
Tensile Overload: The material must not deform permanently under maximum expected flight loads.
Fatigue Failure: The component must survive thousands of pressurization and depressurization cycles without developing micro-cracks.
Corrosion Degradation: The alloy must maintain its mechanical properties despite exposure to aviation fluids, moisture, and extreme temperature shifts.
Lower-grade alloys fail in high-load aerospace applications. Standard 6000-series variants work well for architectural or automotive uses. They lack the ultimate tensile strength required for primary aircraft load paths. Using these softer alloys forces engineers to increase wall thickness. This adds unacceptable dead weight to the airframe.
Traditional fabrication methods also introduce severe structural penalties. Relying on multi-part welded assemblies creates inherent weak points. Welding introduces heat-affected zones (HAZ) that alter the metal's grain structure. This reduces localized strength and increases susceptibility to fatigue. Heavy mechanical fasteners add unnecessary mass and require overlapping material joints. Seamless, complex extruded profiles eliminate these failure points. They provide continuous load paths and superior dimensional stability over the lifecycle of an aircraft.
Fabrication Method | Structural Integrity | Weight Impact | Fatigue Resistance |
|---|---|---|---|
Multi-Part Welded Assembly | Compromised by Heat-Affected Zones (HAZ) | High (requires overlapping joints) | Low (welds act as stress concentrators) |
Riveted Sheet Metal | Good, but introduces stress points at holes | High (fastener weight adds up quickly) | Moderate (fretting fatigue at rivet holes) |
Seamless Hard Alloy Extrusion | Excellent (continuous grain structure) | Low (optimized cross-sectional geometry) | High (no mechanical joints or HAZ) |
Zinc serves as the primary alloying element in the 7000 series. This metallurgical composition makes the metal highly heat-treatable. The resulting strength-to-weight ratio dominates the aerospace sector. Alloys like 7075 and 7050 match or exceed the yield strength of certain steel grades. They achieve this at a fraction of the weight.
Engineers frequently specify a 7075 or 7050 Aluminum Extrusion Tube for high-stress areas. Common applications include landing gear components, wing root fittings, and primary load-bearing structures. The temper selection dictates final performance. A T6 temper provides peak ultimate tensile strength. A T73 temper overages the metal slightly. This specific thermal treatment balances high strength with superior resistance to stress-corrosion cracking. Shop floor technicians must carefully monitor the quenching process for 7000 series alloys, as the rapid cooling required to trap zinc in the solid solution can easily warp long extrusions.
Copper acts as the primary alloying element in the heat-treatable 2000 series. This addition significantly alters the mechanical behavior of the aluminum. It enhances damage tolerance and slows crack propagation. These traits make 2024 extrusions the industry standard for specific structural zones.
Structures requiring exceptional fatigue resistance rely heavily on 2024 profiles. Wing tension members and lower fuselage structures experience continuous cyclic loading. The 2024 alloy absorbs these stresses better than the 7000 series. The high copper content reduces inherent corrosion resistance. Manufacturers apply protective coatings or pure aluminum cladding to ensure long-term environmental durability. You will often see 2024 extrusions anodized or primed immediately after fabrication to seal the surface against moisture.
The 6000 series technically qualifies as a softer hard alloy compared to the 7000 and 2000 series. It utilizes magnesium and silicon as primary alloying elements. Despite lower peak strength, specialized tempers of 6061 remain necessary for secondary aerospace structures.
Engineers utilize 6061 for interior cabin components, seating frameworks, and low-pressure fluid lines. It serves well for non-flight-critical Aluminum Extrusion Tube requirements. The alloy offers excellent versatility, superior weldability, and strong inherent corrosion resistance. It provides a reliable solution where maximum yield strength does not drive the primary design.
Aerospace engineering relies on maximizing specific strength. Hard alloy aluminum extrusions outperform traditional materials in this metric. Steel offers immense yield strength but carries a heavy density penalty. Titanium provides excellent performance but introduces severe machining costs and supply chain bottlenecks. Aluminum hits the optimal intersection. It offers a low density while hard alloys push yield strengths past 70 ksi.

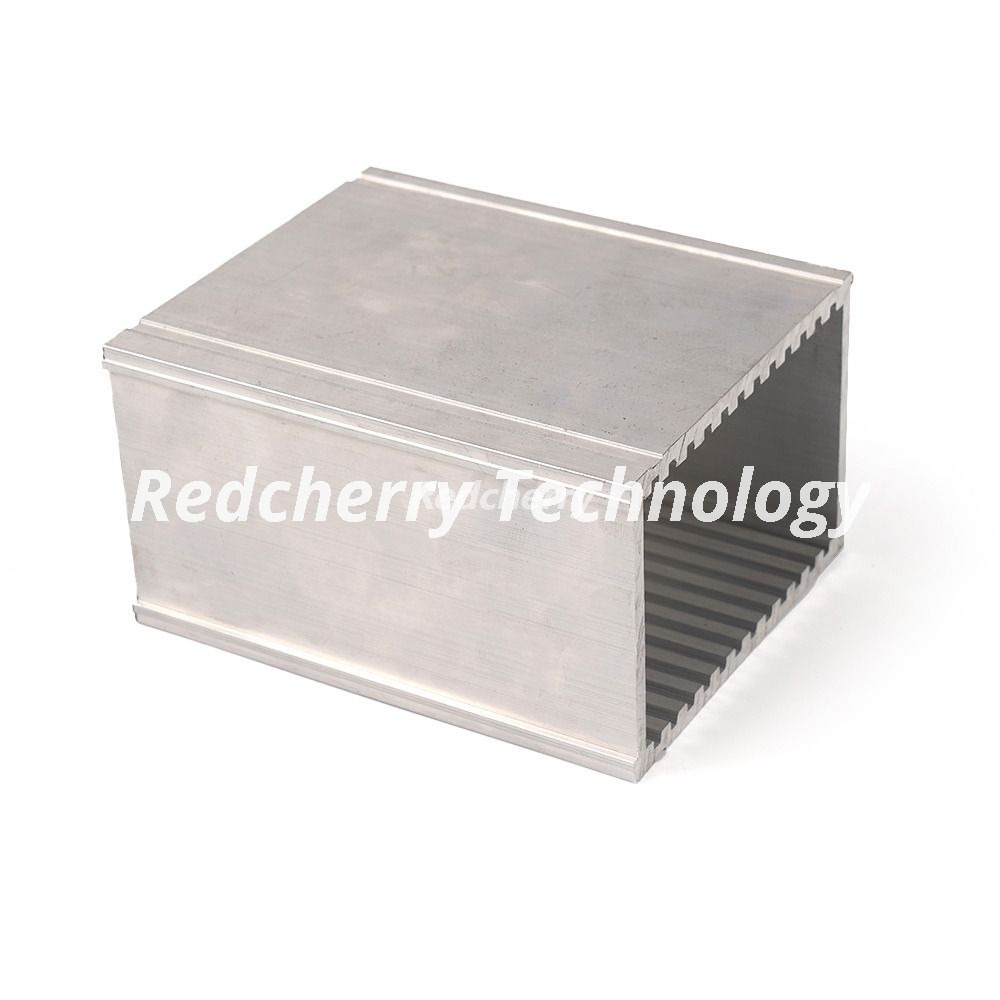

Custom extrusion dies allow engineers to optimize cross-sectional geometry. They design complex, lightweight profiles that place mass exactly where load paths dictate. This eliminates dead weight from the airframe. Solid billets require extensive milling to achieve similar shapes. Extrusion pushes the metal into near-net shapes immediately, maximizing structural efficiency.
Material | Density (lb/in⊃3;) | Typical Yield Strength (ksi) | Aerospace Application Suitability |
|---|---|---|---|
Aluminum 7075-T6 | 0.102 | 73 | Excellent for primary load-bearing structures. |
Titanium Ti-6Al-4V | 0.160 | 128 | Used in high-heat zones (engine components), but heavy and hard to machine. |
Stainless Steel 304 | 0.290 | 30 | Too heavy for general airframe use; restricted to specific fasteners. |
Large aerospace frameworks require exceptionally long extruded profiles. Wing spars and fuselage stringers span dozens of feet. Maintaining dimensional stability across these lengths requires strict process control. Engineers specify tight tolerances for straightness, twist, and concentricity. Deviations cause assembly misalignment and induce pre-load stresses before the aircraft ever flies.
Specifying a seamless Aluminum Extrusion Tube ensures uniform wall thickness. Seamless extrusion uses a pierced billet over a mandrel. This prevents the formation of longitudinal weld seams found in porthole extrusions. Uniform walls guarantee predictable structural integrity under dynamic bending loads. They also prevent weak points in pressurized fluid systems.
Aircraft operate in extreme thermal environments. A plane sits on a 120°F tarmac and climbs to a -60°F stratosphere within minutes. Hard alloy extrusions maintain their mechanical properties across these rapid temperature fluctuations. They do not become dangerously brittle at high altitudes.
Modern aircraft carry massive electronic payloads. Avionics generate significant heat during operation. Aluminum offers inherent thermal conductivity benefits. Extruded structural frameworks double as heat sinks. They pull thermal energy away from sensitive electronics and dissipate it across the airframe. This dual-purpose functionality saves additional weight by reducing the need for dedicated cooling hardware.
An inverse relationship exists between an alloy's final strength and its ease of extrusion. Soft alloys flow easily through a steel die. Hard alloys resist deformation. They possess high flow stress at elevated temperatures. Pushing a 7075 billet requires significantly higher extrusion press tonnage than a 6061 billet.
This resistance impacts production variables. Hard alloys mandate much slower push rates to prevent surface tearing and internal friction defects. Slower speeds reduce hourly output. Higher tonnage requirements limit the number of capable manufacturing facilities. Engineers account for these extrudability limits during the initial design phase to avoid unmanufacturable profiles.
Common extrusion defects associated with pushing hard alloys too fast include:
Die Lines: Deep longitudinal grooves caused by metal adhering to the die bearing.
Surface Tearing: Micro-cracks on the profile surface due to excessive friction and localized overheating.
Internal Blistering: Trapped gases expanding within the metal grain structure.
Achieving peak mechanical properties requires precise thermal management. Hard alloys undergo solution heat treatment and rapid quenching. The quenching phase drops the metal's temperature rapidly to trap alloying elements in a solid solution. This severe thermal shock causes warpage and distortion in complex profiles.
Manufacturers mitigate these residual stresses through post-extrusion stretching. Large hydraulic stretchers pull the cooled profile past its yield point. This straightens the extrusion and relieves internal stress. Following stretching, the metal undergoes controlled artificial aging in massive ovens. This precise time-and-temperature cycle precipitates the alloying elements, locking in the final mechanical properties.
Investing in complex, custom extrusion dies requires upfront capital. Specialized aerospace dies withstand extreme pressures and maintain tight tolerances. Engineers frame this tooling cost against long-term assembly savings. The return on investment becomes apparent during production.
Custom tooling allows for part count consolidation. A single extruded profile replaces an assembly of five separate machined parts and dozens of rivets. This reduction in secondary machining drastically cuts labor costs. It simplifies the supply chain and accelerates final airframe assembly. The upfront die cost amortizes quickly across a full production run.
Not all extrusion facilities handle aerospace requirements. A general commercial extruder focuses on volume. They produce architectural window frames and automotive trim. A dedicated aircraft extrusion company operates under entirely different paradigms. They focus on specialized handling, aerospace-grade billet sourcing, and strict lot control.
Utilizing a non-specialized vendor for flight-critical components introduces unacceptable risks. Commercial facilities lack in-house metallurgical expertise. They mix billet alloys or fail to maintain strict temperature controls during quenching. Aerospace vendors guarantee material traceability. They ensure structural consistency from the raw billet casting to the final dimensional inspection.
Large aerospace profiles require massive force. Pushing hard alloys into large circle sizes demands heavy press tonnage. A standard 2,000-ton press cannot extrude a wide 7075 wing spar. Partnering with under-equipped vendors leads to severe quality failures. The metal will not flow properly, compromising the internal grain structure.
Evaluate a manufacturer's press capacity before finalizing contracts. Large-scale structural profiles require presses exceeding 5,000 tons. Some massive components require 10,000 to 14,000-ton presses. Verify that the vendor achieves the required reduction ratio. A proper reduction ratio ensures the cast billet structure transforms completely into a wrought structure, maximizing directional strength.
Profile Circle Size (Diameter) | Minimum Recommended Press Tonnage (Hard Alloys) | Typical Aerospace Application |
|---|---|---|
Up to 4 inches | 2,000 - 3,000 Tons | Seat tracks, small fluid lines, interior trim |
4 to 8 inches | 4,000 - 6,000 Tons | Fuselage stringers, medium structural supports |
8 to 12+ inches | 8,000 - 14,000+ Tons | Main wing spars, heavy landing gear components |
Aerospace manufacturing operates under strict regulatory oversight. Suppliers hold specific mandatory certifications. AS9100 serves as the baseline quality management system for the aerospace industry. It builds upon ISO 9001 but adds stringent requirements for risk management and configuration control.
Special processes require NADCAP accreditation. This includes heat treating, non-destructive testing (NDT), and chemical processing. An extrusion partner maintains these certifications in-house. Full material traceability is mandatory. If a component fails in the field, investigators trace the metal back to the exact billet cast and heat treatment batch.
Aerospace material sourcing faces continuous global pressure. Billet availability for specialized hard alloys fluctuates based on raw material markets and defense demands. Relying on just-in-time manufacturing for custom aerospace extrusions leads to line-down situations.
Mitigate these delays through early supplier involvement (ESI). Bring the extrusion partner into the design phase immediately. They identify extrudability issues before designs are locked. Secure long-term raw material contracts to guarantee billet allocation. Forecasting demand accurately allows the extruder to reserve press time and secure specialized alloys well in advance of final assembly.
Heat-treatable hard alloy aluminum extrusions represent a foundational engineering strategy. They provide the only viable path to achieving the extreme strength, low weight, and high precision demands of modern aerospace structures. Selecting the right alloy and profile geometry dictates the operational success of the airframe.
Selecting the right extrusion partner requires strict shortlisting logic. Demand verifiable press capacity capable of pushing hard alloys into large circle sizes. Mandate strict adherence to aerospace quality management systems like AS9100. Ensure the vendor possesses proven, NADCAP-accredited in-house heat treatment capabilities. Focus exclusively on dedicated aircraft extrusion companies.
Take the following steps to advance your aerospace structural design:
Audit your current structural assemblies to identify multi-part welded or riveted components that can be consolidated into a single custom extrusion.
Engage a qualified metallurgical engineer to determine the exact hard alloy and temper required for your specific load paths and fatigue requirements.
Request a comprehensive design-for-manufacturability (DFM) review from a specialized aerospace extrusion manufacturer to validate die design and press tonnage requirements.
Establish long-term billet sourcing agreements to protect your production timeline from raw material supply chain fluctuations.
A: The optimal alloy depends on the application. Use 7075 for primary structures requiring maximum yield strength. Select 2024 for components needing superior fatigue resistance and damage tolerance. Choose 6061 for secondary fluid systems that require high corrosion resistance and excellent weldability.
A: Hard alloys possess higher flow stress at elevated temperatures. They resist deformation, requiring massive press tonnage and significantly slower extrusion speeds. They also demand complex thermal management, including rapid quenching and controlled aging, to achieve final mechanical properties without inducing severe warpage.
A: The 7075 alloy utilizes zinc to achieve superior ultimate tensile strength, making it ideal for static, high-load structures like landing gear. The 2024 alloy utilizes copper, providing superior damage tolerance and fatigue resistance, making it better suited for cyclic-loaded structures like wing tension members.
A: Tighter tolerances increase upfront manufacturing costs. They accelerate die wear, require slower production speeds, and demand rigorous quality assurance testing. However, these upfront costs are heavily offset by downstream savings, as precise extrusions reduce secondary machining and accelerate final airframe assembly.
A: Aerospace suppliers must hold AS9100 certification for baseline quality management. They also require NADCAP accreditation for special processes, including heat treating and non-destructive testing. Facilities producing components for defense applications must also maintain strict ITAR compliance.
A: The extrusion process forces the heated cast billet through a steel die under immense pressure. This mechanical working aligns the internal grain structure of the metal along the longitudinal axis of the extrusion. This alignment significantly increases directional strength and fatigue resistance for complex profiles.
A: General commercial extruders lack the stringent process controls required for flight-critical parts. Specialized aircraft extrusion companies provide aerospace-specific quality controls, possess the massive press capabilities needed for hard alloys, and maintain NADCAP-certified in-house heat treatment to guarantee material traceability and structural consistency.
