CNC machining offers unmatched dimensional accuracy down to micrometers by removing material from a solid block, making it ideal for low-volume complex parts, while extrusion is a high-speed, cost-effective replication method that forces heated material through a die to create continuous profiles of consistent cross-sections, though with wider tolerances.
Understanding the precise interplay between these two manufacturing techniques allows purchasing managers and design teams to optimize their procurement strategies. This guide provides an in-depth, data-driven comparison of CNC machining and extrusion precision, material utilization, and geometric limitations to help you make an informed decision for your next project.
CNC machining is a high-precision subtractive manufacturing process where pre-programmed computer software dictates the movement of factory tools and machinery to cut away material from a solid workpiece.
The process relies heavily on computer aided design (CAD) models and computer aided manufacturing (CAM) software to translate digital geometric specifications into explicit cutting commands. These commands control multi axis machining centers, including three, four, and five axis mills, as well as CNC lathes and turn mill centers. Because the cutting tools interact directly with a rigid billet, the process eliminates the variation common to thermal forming or casting methods, delivering exceptional repeatability across low to medium volume production lots.
From an industrial procurement perspective, CNC machining serves as the benchmark for prototyping and high precision end use component fabrication. The ability to work directly with fully dense, isotropic raw materials means that the final parts retain the native mechanical characteristics of the specified alloy or polymer grade. It requires virtually no custom physical tooling to initiate production, replacing expensive die fabrication with digital setup programs, which dramatically accelerates initial development timelines.
However, the subtractive nature of this technique introduces substantial material waste, as a significant percentage of the original block is transformed into chips during the cutting cycles. This waste factor elevates the unit material cost, particularly when utilizing premium raw stock such as specialized aerospace grades or highly resilient engineering plastics. Procurement teams must weigh these elevated material costs against the elimination of upfront tooling expenses and the superior dimensional fidelity achieved by multi axis milling cutters.
Extrusion is a net-shape plastic deformation manufacturing process that forces a heated material through a shaped opening in a steel die to produce continuous, long lengths of uniform cross-sectional profiles.
The manufacturing setup consists of a powerful hydraulic or mechanical press that exerts immense force on a softened billet trapped within a sealed container. As the material passes through the engineered die aperture, it assumes the precise shape of the opening, emerging as a continuous profile that is subsequently cooled, tensioned, straightened, and cut to specific commercial lengths. This method is highly optimized for producing vast quantities of structural framing, enclosure components, and custom linear profiles with minimal material scrap.
For industrial purchasing agents, the primary financial incentive of extrusion lies in its unmatched cost efficiency during high volume manufacturing campaigns. The process achieves a near net shape directly from the raw billet, yielding material utilization rates that frequently exceed ninety percent. Once the custom steel die is fabricated and qualified, the variable cost per meter drops significantly, making it the preferred method for standard components like structural channels, framing systems, and heat sinks.
The mechanical properties of extruded components are strongly influenced by the directional grain flow generated during the high pressure deformation stage. This localized grain alignment enhances longitudinal tensile strength along the length of the profile, which is highly beneficial for load bearing structural applications. To maximize performance and durability, engineers often specify a post-extrusion treatment, ensuring that the profile possesses excellent corrosion resistance and enhanced aesthetic appeal when utilizing a robust [Anodized Aluminum] surface finish.

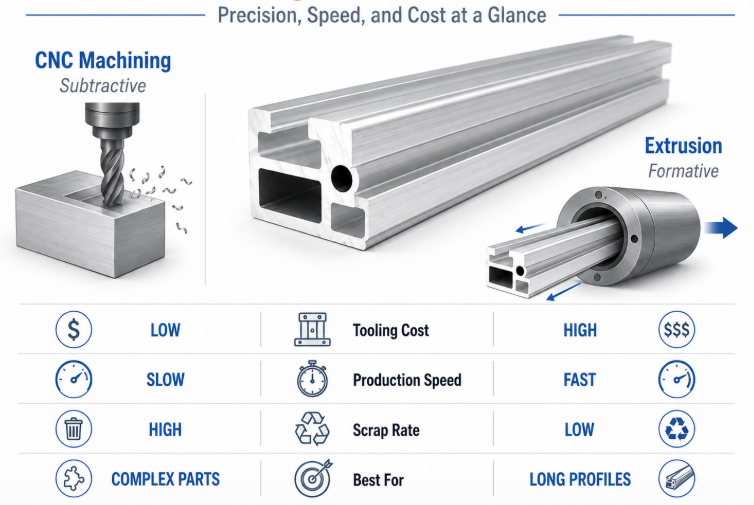

The fundamental difference lies in their mechanical approach: CNC machining is a subtractive process that carves intricate shapes out of a solid block, whereas extrusion is a formative process that shapes material via thermal soft deformation through a die.
Evaluating these methods requires a clear breakdown of their operational parameters, financial frameworks, and mechanical outcomes. The table below outlines the core practical distinctions that procurement managers must analyze before finalizing production contracts.
Parameter | CNC Machining | Extrusion |
Manufacturing Type | Subtractive (Material Removal) | Formative (Plastic Deformation) |
Tooling Cost | Extremely Low (Digital Setup) | High (Custom Steel Die Fabrication) |
Production Speed | Slow to Moderate Per Unit | Extremely Fast Post Die Setup |
Material Scrap Rate | High (Up to 70% or more as chips) | Low (Typically under 10% scrap) |
Structural Grain Flow | Interrupted by cutting tools | Continuous and aligned longitudinally |
The upfront financial investment defines the initial procurement barrier for both methodologies. CNC machining avoids the expenses of physical tooling, allowing businesses to iterate designs rapidly by simply altering the CAD file, which makes it perfect for custom components or limited market testing. Extrusion demands an upfront capital investment for die engineering, hardening, and testing, which must be amortized over thousands of meters of linear production to become financially viable.
From a structural perspective, the mechanical behavior of the finished component differs based on the manufacturing history. A fully machined part inherits the isotropic or pre existing grain structure of the wrought rolling block, but the milling cutters cut directly through these grain lines, potentially creating localized stress concentrations. Extruded profiles benefit from unbroken, elongated grain boundaries running parallel to the direction of flow, which yields excellent longitudinal strength but can result in anisotropic behavior across the transverse axis.
CNC machining offers virtually unlimited three-dimensional design flexibility for complex, multi-sided parts, whereas extrusion is strictly confined to two-dimensional profiles with a constant cross-section across their entire length.
When designing for extrusion, engineers are bound by the physics of metal or polymer flow through a static die plate. The cross section must maintain uniform wall thicknesses wherever possible to prevent uneven cooling rates, which lead to warping, twisting, and internal structural voids. Complex asymmetric shapes with deep narrow tongues or extreme transitions between thick and thin walls put immense stress on the die components, often leading to premature tool failure or severe surface defects on the profile.
CNC machining easily bypasses these two dimensional constraints, allowing for the integration of complex features such as blind pockets, compound angled surfaces, tapped holes, and intricate internal channels on multiple faces of a single part. Advanced five axis machining setups can maneuver cutting tools around highly complex geometries without requiring the part to be repositioned, ensuring flawless registration between geometric features. The main limitations here relate to tool accessibility, such as the inability to cut sharp internal square corners due to the round profile of rotating milling bits.
For applications requiring long, structural components with constant cross sections, extrusion is the only practical solution. A prime example is the Heavy Duty 4040 T-Slot Aluminum Extrusion Profile with Center Bore, which utilizes standard linear geometry to provide structural integrity and mounting flexibility over extended lengths. CNC machining cannot replicate such long, hollow profiles efficiently, as milling a four meter structural rail from a solid block would be prohibitively expensive and generate an unacceptable volume of waste material.
CNC machining delivers exceptionally tight dimensional tolerances down to plus or minus 0.01 millimeters and refined surface finishes, while standard industrial extrusion operates within broader tolerances, typically around plus or minus 0.15 millimeters or greater.
Achieving tight tolerances requires strict control over thermal expansion, tool deflection, and machine vibration. CNC centers achieve high precision through rigid cast iron frames, linear glass scales, and direct drive spindles that position cutting edges with micro-inch accuracy. This level of control is essential for mating parts, bearing journals, and aerospace interfaces where even minor dimensional deviations can lead to total system failure.
Metric | CNC Machining | Standard Extrusion |
Linear Tolerance | Up to ±0.01 mm | Typically ±0.15 mm to ±0.50 mm |
Angular Tolerance | Up to ±0.05 degrees | Typically ±1.0 to ±2.0 degrees |
Surface Roughness (Ra) | 0.8 to 3.2 micrometers (as machined) | 1.6 to 6.3 micrometers (as extruded) |
Geometric Straightness | High precision across travel limits | Subject to twist and bow over length |
Extrusion profiles face unpredictable dimensional shifts as the material exits the die and undergoes rapid cooling. Thermal contraction, material composition variations, and die wear all contribute to wider dimensional variations across the production lot. Straightness, twist, and flatness must be carefully managed using post extrusion stretching and straightening machinery, making it difficult to maintain strict geometric tolerances without secondary processing.
Quality control protocols differ based on these inherent process capabilities. Machined parts are typically verified using coordinate measuring machines (CMMs) and precision air gaging to confirm micro-geometries at critical inspection nodes. Extrusion inspection focuses on profile projectors, optical comparators, and go/no-go gauges to verify the overall cross sectional envelope and ensure consistency across long production runs.
Machining a component from a solid wrought billet provides excellent dimensional stability and uniform cutting forces, whereas secondary machining on an extruded profile requires specialized fixturing to handle variable cross-sections and internal residual stresses.
Wrought billets undergo extensive rolling or forging during raw material production, which helps eliminate internal porosity and creates a highly predictable, uniform material structure. When a CNC tool path carves into a wrought block, the cutting forces remain highly consistent, reducing tool wear and minimizing the risk of unexpected part distortion. This predictability allows CNC programmers to maximize material removal rates and confidently achieve ultra precise surface finishes.
When secondary CNC machining is performed on an extruded profile to add features like precision mounting holes or interlocking slots, the process becomes more complex. The extrusion process leaves behind internal residual stresses due to uneven cooling rates across the profile's shape. As the CNC cutting tool removes material and breaks the outer skin of the extrusion, these internal stresses can release, causing the profile to bow, twist, or spring out of alignment during the machining cycle.
To counter these challenges, production engineers must design custom workholding solutions and specialized fixtures that securely support the extruded profile without crushing its walls. The machining strategy must be carefully planned, often using balanced tool paths and light finishing cuts to minimize distortion. By selecting premium, high-quality base materials, manufacturers can significantly improve tool life and maintain excellent part stability during these secondary milling operations.
Aluminium alloys remain the ideal choice for both manufacturing methods due to their exceptional thermal conductivity, high strength-to-weight ratio, and excellent structural performance.
When working with materials like aluminum, choosing the right alloy grade is critical to achieving the desired production outcomes. For instance, standard 6000 series alloys exhibit excellent fluidity and structural integrity under high pressure, making them perfect for complex extrusion profiles. In contrast, 7000 series alloys offer superior hardness and tensile properties, making them highly desirable for rugged aerospace applications, though they are typically shaped using multi axis CNC milling centers rather than extrusion presses.
To help selection teams evaluate these material dynamics, the list below highlights key engineering behaviors across standard industrial alloys and polymers:
Machining vs Extruding Aluminum Grades: 6061 and 6063 grades offer excellent extrusion performance and clean anodizing characteristics, while harder alloys like 7075 are preferred for high stress CNC applications due to their superior chip formation and minimal tool gumming.
High Performance Engineering Thermoplastics: Polymers like PEEK, Delrin, and Nylon can be processed by both methods, but extruding plastics requires strict temperature control to prevent polymer chain degradation and maintain profile uniformity.
Amorphous and Semi Crystalline Plastics in CNC: Machining plastic components from cast or extruded stock requires sharp cutting geometries and specialized cooling strategies to avoid localized melting, deformation, and burr formation.
To ensure parts can withstand harsh operating environments, applying a protective [Anodized Aluminum] surface coating is highly recommended. This electrochemical process thickens the natural oxide layer on aluminum parts, significantly improving corrosion resistance, surface hardness, and wear protection. This treatment is equally effective on both fully machined components and complex extruded profiles, providing a durable, long-lasting finish across diverse industrial applications.
The ideal choice depends on your production volume, geometric complexity, and budget limits: use CNC machining for low-volume complex parts, extrusion for high-volume linear profiles, and a hybrid approach for complex profiles requiring tight-tolerance details.
To choose the best approach, production managers should evaluate a clear decision framework based on project scale, timeline, and design complexity:
Low Volume Prototyping and Ultra Precision Requirements: Choose dedicated multi axis CNC machining when production volumes are below a few hundred units and require tight tolerances under plus or minus 0.02 millimeters.
High Volume Structural Runs and Uniform Linear Geometries: Choose profile extrusion when your project requires hundreds of meters of material with a constant cross section, allowing you to amortize upfront tooling costs over a large production run.
Complex Geometric Profiles with Localized High Precision Features: Implement a hybrid manufacturing workflow where the raw stock is rapidly formed via cost effective extrusion, and critical mating faces or holes are refined using secondary CNC machining.
By adopting a hybrid production model, companies can achieve the ideal balance of cost efficiency and precision. A high-quality extrusion profile can serve as the structural foundation, drastically reducing material waste compared to carving a part from a solid block. Afterwards, a high-speed CNC machine can add the final precision features, ensuring the component meets all strict engineering specifications without driving up production costs.
For projects that require robust, load bearing linear tracking or modular framing, utilizing a pre engineered profile is often the most efficient starting point. Utilizing a standardized Heavy Duty 4040 T-Slot Aluminum Extrusion Profile with Center Bore allows engineering teams to easily integrate precision cut outs, localized mounting faces, and tapped center holes. This structured approach eliminates unnecessary development steps, optimizes material use, and helps bring high performance industrial products to market much faster.
Selecting between CNC machining and extrusion requires a balanced evaluation of part geometry, dimensional tolerances, material behavior, and total production volume. CNC machining provides exceptional precision and design flexibility for complex three dimensional geometries without physical tooling costs, but it comes with higher unit costs and material waste. Extrusion offers unmatched speed and cost savings for high volume linear profiles with uniform cross sections, though it requires an upfront investment in custom dies and operates within wider dimensional tolerances. By thoroughly analyzing these manufacturing trade offs or combining them through a strategic hybrid approach, procurement teams can maximize material performance, lower production costs, and maintain excellent quality control throughout the manufacturing lifecycle.
