What Are Finned Tubes and How Do They Improve Heat Transfer?

What is a Finned Tube?

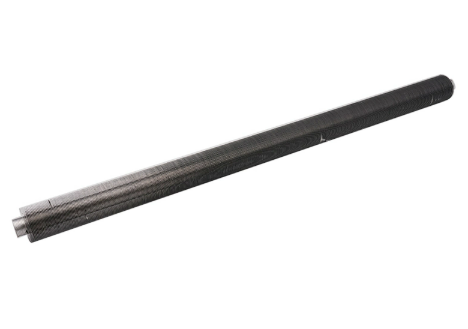

A finned tube is an engineered heat exchange tube that incorporates highly structured external or internal protrusions known as fins to multiply the effective surface area available for thermal energy transfer.

In conventional industrial thermal systems, energy moves between a primary internal fluid and a secondary external fluid. When the convective heat transfer coefficient of the outer fluid is substantially lower than that of the inner fluid—such as a liquid flowing inside the tube and a gas passing outside—a standard smooth tube exhibits massive thermal resistance on its exterior surface. The finned tube solves this thermodynamic bottleneck by adding extended metallic surfaces, allowing more thermal energy to conduct outward or inward simultaneously.

The manufacturing architecture of a modern finned tube involves bonding strategies that ensure optimal metallic contact between the base tube and the fin material. Common materials include aluminum, carbon steel, and copper, chosen based on thermal conductivity, mechanical strength, and corrosion resistance. By integrating these extended surfaces, industrial facilities can significantly minimize the physical footprint of their heat exchangers while maximizing overall performance, making the standard finned tube an indispensable asset in modern thermodynamics.

To ensure structural integrity under extreme operating pressures, every engineered finned tube must adhere to precise geometric configurations. Factors such as fin pitch, height, thickness, and bonding type dictate how well the assembly performs over long lifecycles. Selecting a premium high-frequency welded finned tube ensures that the physical connection between the tube wall and the fin can withstand extreme thermal cycling without delamination or performance degradation.

How Do Finned Tubes Improve Heat Transfer?

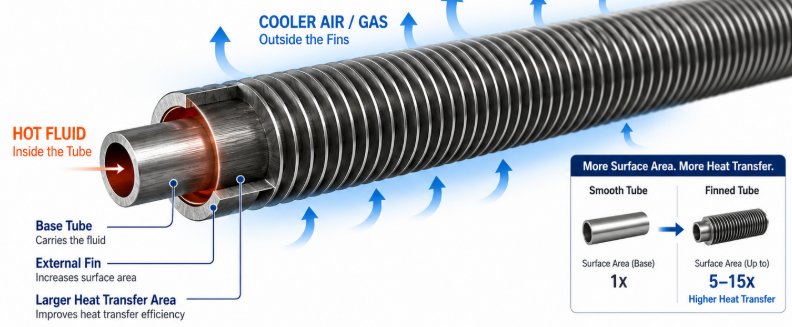

Finned tubes enhance heat transfer by increasing the total outer surface area exposed to the surrounding medium and disrupting the thermal boundary layer of flowing fluids to accelerate convective energy exchange.

The underlying physics of a high-performance finned tube can be explained through Fourier’s Law of Heat Conduction and Newton’s Law of Cooling. When fluid velocities vary significantly, gas-side thermal resistance dominates the equation. By utilizing an optimized finned tube, engineers multiply the surface area factor (A) in the heat transfer equation Q = h A ΔT. This amplification compensates for low convective coefficients (h) inherent to gases, allowing a rapid balancing of thermal energy between the internal liquid and external airflow channels.

Beyond simple surface area expansion, a finned tube actively creates local fluid turbulence. As the external gas stream collides with the sharp geometry of each subsequent finned tube row, the laminar flow pattern is forcefully disrupted. This continuous mixing prevents the formation of a stagnant thermal boundary layer, which normally acts as an unwanted insulating blanket. The induced micro-turbulence ensures that fresh, unheated gas molecules are continuously brought into direct contact with the hot metallic surfaces of the finned tube matrix.

Furthermore, internal fluid dynamics can be optimized concurrently. When using a specialized finned tube configuration within large industrial boilers or condenser systems, the uniform thermal distribution minimizes localized hot spots. This thermal equalization reduces mechanical stress across the entire heat exchanger framework, maximizing operational lifespan while maintaining elite heat rejection rates during peak industrial production periods.

Working Principle of Thermal Conduction in Fins: The physical efficiency of a finned tube depends on the conductive efficiency of the fin attachment joint. Thermal energy travels via solid-state conduction from the internal fluid through the base tube wall, crosses the fin-to-tube interface, and spreads radially outward along the fin structure before dissipating into the surrounding atmosphere through forced or natural convection.

Key Types of Finned Tubes and Their Specifications

The primary classifications of finned tubes include G-type embedded, L-type wrapped, and high-frequency welded varieties, each configured to balance production costs, thermal efficiency, and environmental durability.

Among these mechanical configurations, the embedded finned tube design is highly sought after for demanding thermal profiles. For budget-conscious procurement without compromising on structural rigidity, utilizing an economical G-type finned tube offers an optimal compromise. In this setup, a precise helical groove is mechanically cut into the exterior wall of the base tube, and an aluminum or copper strip is mechanically tension-wound into the groove, followed by backfilling to ensure absolute mechanical locking and thermal contact up to 400°C.

For even harsher operating conditions where aggressive chemicals or marine atmospheres pose a severe threat, heavy-duty variations are required. Industrial operations rely extensively on a specialized stainless steel finned tube to combat localized pitting and oxidation. These robust tubes are often manufactured via continuous high-frequency forge welding, ensuring that the fin-to-tube joint forms a single, atomic-level metallurgical bond that eliminates any micro-gaps where moisture or corrosive agents could accumulate.

Selecting the ideal finned tube requires cross-referencing precise technical specifications such as fin height, pitch, and base material compatibility. Improper selection can lead to excessive air-side pressure drops or catastrophic galvanic corrosion between dissimilar metals. Engineers must analyze fluid velocities and ambient chemical profiles to choose between a cost-effective wrapped finned tube or a fully welded high-frequency alternative designed to endure decades of continuous thermal loading.

Industrial Applications of Finned Tubes

Finned tubes are universally implemented across petrochemical refining, power generation, HVAC systems, and heavy manufacturing sectors to optimize large-scale thermal management workflows.

In power generation facilities, massive boilers and heat recovery steam generators (HRSGs) rely heavily on heavy-duty finned tube configurations to capture thermal energy from exhaust gases that would otherwise escape into the atmosphere. This recovered heat is redirected to preheat boiler feed water, directly elevating the thermodynamic efficiency of the entire facility. The high mechanical durability of a high-frequency welded finned tube matrix allows these energy systems to operate reliably under extreme flue gas velocities and high particulate concentrations.

The petrochemical sector presents another critical application zone for advanced finned tube technology. Oil refineries and chemical synthesis plants utilize large air-cooled heat exchangers (fin-fan coolers) to condense hydrocarbon vapors and cool process fluids. Because these systems are frequently exposed to outdoor environments and volatile chemicals, selecting an embedded G-type finned tube provides the mechanical integrity needed to resist thermal expansion stresses while delivering predictable heat rejection rates regardless of ambient weather swings.

1. Heavy Industrial Boilers: Utilizing high-frequency welded finned tube modules to recover heat from exhaust flues and maximize steam production metrics.

2. Chemical Process Condensers: Integrating corrosion-resistant finned tube networks to process acidic or highly reactive vapors safely.

3. Commercial HVAC Air Handlers: Deploying lightweight aluminum-finned copper tube coils for efficient heat exchange in centralized climate control systems.

Maintenance and Inspection Tips: Regular maintenance of a finned tube assembly is critical to prevent fouling and performance decay. Accumulated dust, debris, or chemical scale between fin gaps must be removed periodically using high-pressure water jetting or compressed air systems. Regular ultrasonic thickness testing should also be conducted on the base tube to monitor for internal erosion and prevent unexpected failure.

Conclusion

In conclusion, the modern finned tube represents a crucial breakthrough in thermal engineering, offering a practical and highly efficient solution to the inherent challenges of gas-side thermal resistance. By dramatically extending the available surface area and optimizing fluid turbulence, finned tubes enable rapid, cost-effective heat transfer across a vast range of industrial applications. Whether deploying a cost-effective G-type variant or a rugged high-frequency welded stainless steel assembly, selecting the precise configuration tailored to your specific pressure, temperature, and environmental parameters is essential for long-term operational success.
