Finned Tube Cleaning and Maintenance Best Practices – Keep Your Heat Exchanger at Peak Performance

Views: 145     Author: Site Editor     Publish Time: 2026-07-22      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Optimizing heat exchanger performance requires regular, specialized maintenance of extended surface components, particularly the high-efficiency G-Type Finned Tube configurations, through calibrated high-pressure water jetting, chemical circulation, or pneumatic blasting to remove localized foulants, prevent thermal resistance build-up, and extend structural lifespan in demanding industrial processing environments.

At a Glance

Section

Summary

1. Why Cleaning is Essential

Explains how accumulation of particulates on a G-Type Finned Tube increases thermal resistance and hydraulic pressure drops, undermining system efficacy.

2. Common Finned Tube Cleaning Methods

Details hydro-jetting, specialized chemical soaking, and pneumatic options tailored to safeguard the sensitive mechanical bonds of a G-Type Finned Tube.

3. Maintenance Best Practices

Outlines structured frameworks for vibration tracking, thermal differential profiling, and careful structural alignment of G-Type Finned Tube units.

4. Cleaning Frequency Guidelines

Provides actionable metrics based on operational environments to determine optimal inspection cycles for a G-Type Finned Tube system.

Why Cleaning is Essential

Regular cleaning of thermal equipment remains an absolute prerequisite to avoid compounding thermal resistance, elevated power draw, and catastrophic macro-structural failures across downstream operational processes utilizing a G-Type Finned Tube.

In modern manufacturing plants, the thermal conductivity of a system relies heavily on the clean surface area of extended tubing networks. When fine airborne particles, chemical byproducts, carbonaceous smoke, or biological growth attach to the external periphery of a G-Type Finned Tube, an insulating layer forms rapidly. This fouling layer possesses a profoundly low thermal conductivity coefficient, which serves as a literal barrier to effective energy transfer between the inner process fluid and the cross-flowing ambient medium. Consequently, the primary thermal transfer coefficient suffers a severe reduction, forcing upstream processing equipment to run continuously at higher capacities to compensate for the fundamental drop in energy recovery efficiency.

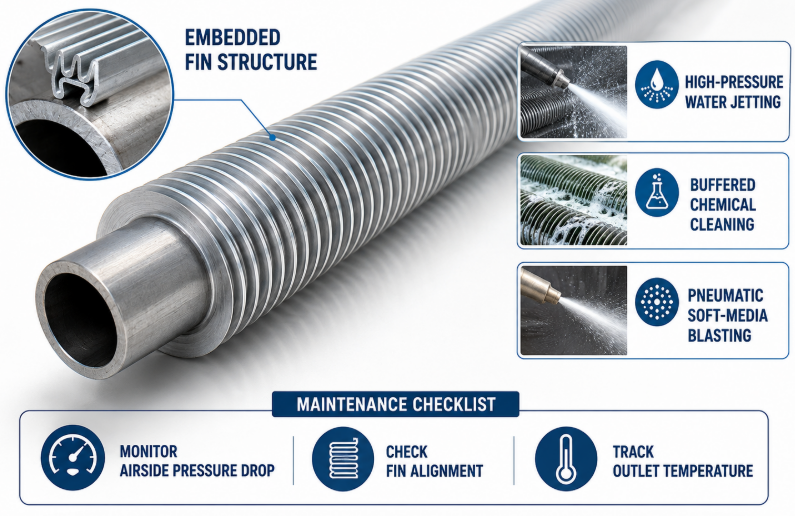

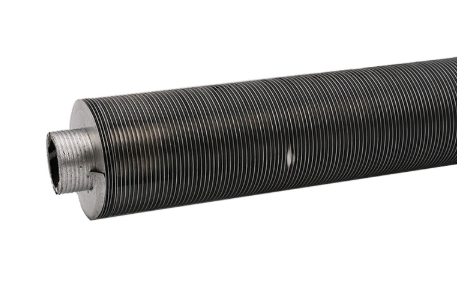

finned tube.png

Beyond the immediate decline in heat transmission, unmanaged accumulation within the geometric gaps of a G-Type Finned Tube alters the aerodynamic parameters of the heat exchanger assembly. The physical space between adjacent aluminum or steel fin profiles narrows due to the scaling crust, which severely restricts the volumetric airflow rate while drastically amplifying the static pressure drop across the entire bundle. Industrial forced-draft and induced-draft fans are subsequently forced to consume significantly more electrical energy to push the required volume of cooling air through these choked pathways. Left uncorrected, this hydraulic imbalance accelerates mechanical wear on fan motors, skews internal pressure dynamics, and drastically escalates monthly utility costs for the processing plant.

Furthermore, long-term neglect introduces acute risks of localized under-deposit corrosion along the critical interface where the aluminum fin strip is mechanically embedded into the primary steel pipe wall. Moisture, atmospheric sulfur dioxide, and ambient salts become trapped within the dense fouling deposits, creating localized galvanic cells that slowly dissolve the metallic substrate. As the structural integrity of this mechanical bond degrades, the tension holding the fin secure within the groove relaxes, leading to an irreversible loss of thermal contact resistance. By enforcing strict, proactive cleaning schedules for every G-Type Finned Tube installation, industrial facilities can entirely bypass these expensive operational pitfalls, ensuring stable performance profiles and achieving an extended capital asset lifespan.

Key Thermal Performance Indicators Impacted by Fouling

Performance Metric

Clean State Target

Fouled State Impact

Primary Mitigation Protocol

Overall Heat Transfer Coefficient (U)

100% Design capacity

35% to 50% Reduction

Targeted low-pressure chemical dissolution

Static Airside Pressure Drop (ΔP)

Minimal (per design curve)

Up to 150% Increase

Delated pneumatic blasting or hydro-washing

Fin-to-Tube Mechanical Bond Integrity

Zero contact resistance

Galvanic degradation risk

Regular pH neutral rinsing cycles

Process Fluid Outlet Temperature

Strictly within control limits

Uncontrolled rising trends

Scheduled off-line recovery cleanings

Common Finned Tube Cleaning Methods

Selecting the correct cleaning method for a G-Type Finned Tube involves evaluating the physical composition of the foulant alongside the structural limits of the embedded fin to prevent mechanical dislodgement.

The primary and most widely accepted mechanical method for restoring a soiled G-Type Finned Tube bundle is high-pressure water jetting, executed via highly specialized flat-fan spray nozzles. This approach relies on kinetic force to shear away hardened crusts, sticky hydrocarbons, and heavy dust layers that have compacted deep within the fin channels over prolonged operating campaigns. However, because the aluminum fins on a G-Type Finned Tube are mechanically locked into a pre-machined groove under high tension, operators must exercise extreme caution regarding both the spray angle and the pump discharge pressure. The water stream must be directed perfectly perpendicular to the longitudinal axis of the tube body; any slight angular deviation can instantly bend the thin aluminum fins flat against one another, permanently sealing off the airflow channels and ruining the thermal matrix.

For processing environments characterized by oily residues, organic polymers, or chemical scale that resists purely mechanical force, chemical circulation or immersion cleaning serves as the optimal restoration pathway. This method employs specifically formulated, non-aggressive surfactant blends and mild organic acids designed to dissolve complex chemical linkages without attacking the base alloys. During this procedure, the entire G-Type Finned Tube assembly can be either treated in-situ using localized containment basins or completely removed and submerged into a specialized agitated chemical tank. It is strictly imperative that the chemical solutions maintain a neutral or carefully buffered pH value, as highly alkaline or strongly acidic agents will rapidly etch aluminum surfaces, causing irreversible macro-structural thinning of the heat transfer fins.

An alternative dry cleaning strategy that has gained substantial traction across modern desert installations and water-scarce regions is pneumatic blasting utilizing soft, friable abrasive media such as crushed walnut shells or baking soda. This dry-ice or soft-media blasting technique effectively strips away stubborn carbonaceous scales and atmospheric dust blockages from the G-Type Finned Tube without introducing any liquid moisture that could catalyze localized corrosion. The soft media safely disintegrates upon striking the harder metallic components, leaving the critical mechanical groove and the embedded fin roots completely unharmed while returning the exterior surfaces to bare-metal cleanliness. This approach eliminates the costly requirement for wastewater treatment and disposal, allowing rapid turnaround times and immediate re-commissioning of the industrial heat exchanger network.

Technical Parameters for Mechanical and Chemical Cleaning Operations

Cleaning Methodology

Maximum Allowable Pressure

Recommended Solution pH

Optimal Media / Fluid Temp

High-Pressure Water Jetting

80 to 120 Bar (Max)

6.5 to 7.5 (Neutral)

40°C to 60°C

Chemical Circulation Clean

3 to 5 Bar (Pump head)

5.5 to 8.0 (Buffered)

50°C to 70°C

Pneumatic Soft-Media Blasting

4 to 6 Bar (Nozzle inlet)

Not Applicable (Dry)

Ambient Room Temp

For operations looking to avoid frequent mechanical cleaning interventions altogether, upgrading to highly durable, structurally resilient components like the Finned Tube Stainless Steel High Frequency Welded Heat Exchange Tube for Industrial Applications offers an exceptional alternative, as its rugged welded construction tolerates aggressive hydro-blasting parameters that would destroy standard mechanical configurations.

Maintenance Best Practices

A successful long-term maintenance protocol for a G-Type Finned Tube installation must center around rigorous predictive analytics, routine physical inspections, and systematic thermal monitoring.

To establish an effective maintenance framework, industrial engineering teams should integrate continuous thermal differential profiling directly into their primary supervisory control and data acquisition systems. By mapping the exact temperature drop of the inner process fluid against the corresponding temperature rise of the ambient air passing over the G-Type Finned Tube bundle, software algorithms can calculate the real-time thermal efficiency index of the unit. A steady, progressive decline in this calculated thermal value serves as a highly accurate early warning indicator that a localized fouling layer is accumulating. This allows plant managers to schedule proactive maintenance interventions during planned operational shutdowns rather than reacting to unexpected, low-efficiency thermal crises that disrupt overall production outputs.

Simultaneously, physical maintenance must include regular structural integrity checks focusing specifically on tube vibration and macro-alignment within the structural support frame. Because the G-Type Finned Tube utilizes a precise mechanical anchoring method where the fin is wrapped under high tension inside an explicit surface groove, excessive mechanical vibration caused by adjacent heavy rotating equipment can induce premature wear at the fin root. Over time, these micro-vibrations can lead to friction-wear along the contact line, resulting in the loosening of the embedded strip and a sharp increase in localized contact resistance. Maintenance crews should regularly verify the torque values on all structural tie-rods, examine the condition of anti-vibration baffle plates, and install dampening pads wherever external harmonic forces threaten the stability of the heat exchanger core.

Furthermore, internal fluid management represents an equally critical aspect of preserving the overall performance profiles of a G-Type Finned Tube matrix. High-purity water treatment protocols must be strictly maintained for the tubeside fluids to prevent the formation of internal calcium carbonate scales or localized silica deposits. Internal fouling acts as a secondary insulation layer inside the primary tube, compounding the thermal transfer loss experienced from external atmospheric dust accumulations. Regular borescopic inspections of the internal tube passes should be scheduled annually, allowing engineers to visually verify the absence of pitting corrosion, internal scaling, or particulate blockage, thereby safeguarding the bidirectional heat flow mechanism from both the inside and outside environments.

Comprehensive Maintenance Checklist for Finned Heat Exchangers

Subsystem Component

Inspection Point / Action Item

Target Operational Parameter

Remedial Measure if Deviant

External Fin Structure

Visual check for bent or crushed fins

100% Straight alignment

Manual comb rectification

Embedded Fin Root

Micro-gap inspection for groove corrosion

Zero visible oxidation/crusting

Local chemical neutralizer spray

Internal Tube Wall

Borescopic scale evaluation

Smooth metal surface

Inhibitor-assisted acid flush

Support Frame Assemblies

Torque verification of frame bolts

Per manufacturer spec

Re-tighten to exact nominal torque

When selecting capital equipment for budget-restricted facilities where comprehensive predictive maintenance infrastructure is limited, utilizing the highly efficient Economical G-Type Finned Tube for Budget Conscious Projects represents a highly pragmatic approach, delivering excellent, dependable baseline thermal efficiencies without requiring excessive initial capital outlays.

Maintenance Operation Principle: The mechanical longevity and thermal efficiency of a G-Type Finned Tube depend fundamentally on maintaining the high-tension mechanical bond between the aluminum fin root and the pre-cut steel tube groove. Any chemical agent or high-pressure physical washing technique utilized during routine plant maintenance must be strictly regulated to ensure no moisture or neutralizing residue remains trapped inside this micro-groove, as hidden moisture will inevitably induce localized galvanic oxidation, leading to the rapid decay of contact pressure and a catastrophic drop in overall heat exchanger performance.

Cleaning Frequency Guidelines

Determining the exact cleaning frequency for an industrial G-Type Finned Tube network requires a balanced evaluation of ambient air purity, operational temperatures, and specific industrial pollutant types.

In highly controlled, clean indoor environments or regions with exceptionally pure atmospheric air, a G-Type Finned Tube heat exchanger can comfortably operate for twelve to eighteen consecutive months before requiring a comprehensive mechanical or chemical cleaning cycle. Under these optimal conditions, the primary maintenance focus shifts away from heavy foulant removal to basic preventative dust blowdowns using dry instrument air. These light blowdowns effectively clear away the minor surface dust accumulations that naturally settle on the horizontal profiles of the tubes, ensuring that the airside static pressure drop remains flat and that fan power consumption does not deviate from the initial engineering design curves.

Conversely, for installations situated in heavy industrial zones, petrochemical refineries, coastal areas with high salt spray, or arid desert regions prone to regular sandstorms, the inspection and cleaning cycles for a G-Type Finned Tube must be stepped up significantly. These harsh environmental exposures often demand rigorous bimonthly inspections and thorough cleaning interventions every three to six months to prevent severe performance degradation. In petrochemical plants, airborne hydrocarbon vapors frequently combine with ambient sand dust to create a highly viscous, sticky layer over the G-Type Finned Tube surfaces, which rapidly traps additional particulates and forms an impenetrable thermal barrier that cannot be cleared by simple low-pressure air blowing alone.

Ultimately, the most reliable methodology for defining a site-specific cleaning schedule for a G-Type Finned Tube infrastructure involves tracking the real-time escalation of the airside pressure drop combined with monitoring the process fluid temperature trends. When the airside pressure differential increases by more than fifteen percent over the clean baseline value, or when the process fluid outlet temperature fails to meet the target setpoint by a margin of three degrees Celsius, a cleaning cycle should be triggered immediately regardless of the calendar time elapsed. Implementing this data-driven approach avoids the risks of over-cleaning—which can cause unnecessary mechanical stress to the fin structures—while guaranteeing that the thermal machinery consistently operates within its peak efficiency zone.

Environmental Classification

Visual Inspection Cycle

Minor Pneumatic Blowdown

Deep Mechanical/Chemical Wash

Clean / Indoor Air-Conditioned

Every 6 Months

Every 12 Months

Every 24 to 36 Months

Standard Industrial / Urban

Every 3 Months

Every 6 Months

Every 12 to 18 Months

Severe / Petrochemical / Desert

Every 1 Month

Every 2 Months

Every 3 to 6 Months

For operations exposed to the most severe industrial environments where downtime is extremely costly, engineers should look to specify a heavy-duty Finned Tube Stainless Steel High Frequency Welded Heat Exchange Tube for Industrial Applications, as its robust laser or high-frequency welded joints allow for the safe deployment of aggressive, automated mechanical scrapers and high-pressure steam cleaning cycles that would deform standard mechanically tensioned profiles.

For more standard industrial heating and cooling frameworks where budget optimization remains a primary driver, integrating an Economical G-Type Finned Tube for Budget Conscious Projects along with a structured, medium-frequency cleaning schedule delivers the absolute best return on investment, perfectly balancing affordable initial procurement costs with reliable, long-term thermal operating performance.

Conclusion

Maintaining an industrial heat exchanger at peak thermodynamic performance is an ongoing operational commitment that directly influences the profitability, energy efficiency, and safety of the entire production plant. As detailed throughout this comprehensive guide, extended surface components like the high-efficiency G-Type Finned Tube require a well-structured combination of regular physical inspections, carefully calibrated mechanical or chemical cleaning operations, and rigorous predictive maintenance tracking. By understanding the specific fouling mechanisms unique to each operational environment and selecting the appropriate cleaning methodology—whether it be high-pressure water jetting, buffered chemical circulation, or pneumatic soft-media blasting—plant engineers can effectively prevent the accumulation of insulating scale, eliminate costly airside pressure drops, and protect the vital mechanical bonds that facilitate efficient energy transfer. Implementing these best practices ensures that your thermal infrastructure delivers stable, predictable performance year after year, minimizing unscheduled maintenance downtimes and significantly expanding the active service life of your capital equipment assets.
