A G-Type Finned Tube, also known as an embedded finned tube, is a high-performance heat transfer component where an aluminum or copper fin is mechanically tension-wound into a pre-cut helical groove on the outer surface of a base tube, followed by backfilling to ensure absolute mechanical bonding and optimal thermal conductivity. This specific G-Type Finned Tube engineering delivers exceptional structural integrity, making it the premier thermal management solution for high-temperature industrial heat exchangers, process air heaters, and robust condenser systems.
Understanding G-Type Finned Tube Fundamentals
Key Specifications and Material Composition
Thermal Efficiency and Performance Advantages
Primary Industrial Applications
Installation and Structural Integration Guidelines
Maintenance and Longevity Optimization Protocols
The G-Type Finned Tube represents a pinnacle of embedded heat exchanger engineering, operating on the principle of continuous mechanical tension winding within a precision-machined helical groove to facilitate reliable heat dissipation.
To fully comprehend the operational architecture of a G-Type Finned Tube, one must examine the metallurgical precision involved in its creation. Unlike standard surface-wound alternatives, the manufacturing cycle begins with a specialized knurling tool forming a continuous helical groove into the outer wall of the base tube. Concurrently, a metal fin ribbon, typically composed of high-grade aluminum, is guided under extreme rotational tension into this groove. The displacement of the base tube material during grooving is then mechanically ploughed back against the base of the fin, encapsulating it tightly. This creates an unyielding metallic contact zone that resists thermal cycling failures and structural degradation.
The resulting G-Type Finned Tube architecture completely eliminates the microscopic air gaps that plague lesser designs. By securing the fin root beneath the outer surface boundary of the base tube, the thermal interface resistance drops significantly, ensuring a uniform path for conductive heat transfer from the internal process fluid out to the extended surface area. This mechanical bond remains remarkably secure under intense aerodynamic loads and vibration. Consequently, engineers frequently specify the G-Type Finned Tube when looking for high-reliability components that outperform tension-wrapped variations over multi-year operational cycles.
From a macroscopic heat exchange perspective, the configuration of the G-Type Finned Tube maximizes the outer surface area available for convective cooling. As cross-flowing air or process gas moves across the parallel fin structures, the thermal energy is drawn efficiently away from the base tube wall. The mechanical stability of the grooved interface guarantees that even under sustained thermal expansion and contraction, the heat path remains unobstructed, minimizing performance degradation in harsh industrial operating conditions.
Industrial specifications for the G-Type Finned Tube dictate strict dimensional tolerances, customized material pairings, and standardized geometric profiles tailored to withstand aggressive industrial environments.
The versatility of a G-Type Finned Tube relies heavily on its tailored geometric configurations and material engineering. Base tubes are carefully selected based on the corrosiveness and pressure profile of the internal fluid, with common selections including carbon steel, low-alloy steel, stainless steel, and copper alloys. Fin materials are predominantly high-purity aluminum alloys due to their excellent thermal conductivity and formability, though copper fins are occasionally used for highly specialized marine or chemical applications. For highly specialized processing demands, engineering teams often evaluate advanced configurations, such as the high frequency welded heat exchange tube alongside standard embedded profiles to match exact chemical and mechanical stress thresholds.

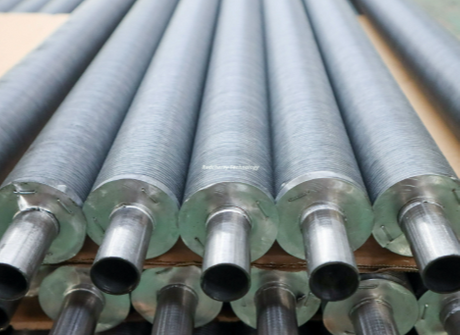

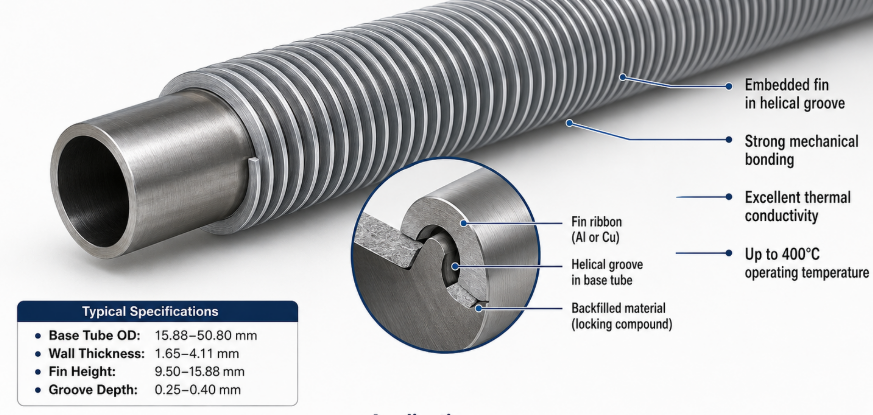

Dimensionally, the engineering parameters of a G-Type Finned Tube are broad yet precise. Base tube outer diameters generally range from 15.88 mm up to 50.8 mm, with wall thicknesses starting at a robust 1.65 mm to ensure the structural integrity of the tube after the external groove is formed. Fin heights can vary from 9.5 mm to 16 mm, while fin pitches generally range from 140 to 400 fins per meter, depending on the fluid properties and particulate load of the surrounding environment. Balancing these dimensions is critical to avoiding excessive static pressure drops on the air side while optimizing the overall heat transfer coefficients.
The precise execution of the groove depth is another crucial technical parameter. The groove is consistently held between 0.25 mm and 0.40 mm deep, ensuring the fin root sits deep enough for mechanical security without critically reducing the pressure-bearing capacity of the base tube. This optimization ensures that a G-Type Finned Tube can comfortably handle high interior pressures while delivering reliable extended surface heat transfer metrics over decades of operation.
Parameter Description | Standard Range (Metric) | Common Material Options |
Base Tube Outer Diameter | 15.88 mm to 50.80 mm | Carbon Steel, Stainless Steel, Copper |
Base Tube Wall Thickness | 1.65 mm to 4.11 mm | SA214, SA179, Grade 304/316 |
Fin Height Matrix | 9.50 mm to 15.88 mm | Aluminum 1050, Aluminum 1100, Copper |
Fin Pitch Frequency | 140 to 394 Fins per Meter | Custom configurations based on particulate load |
Groove Depth Precision | 0.25 mm to 0.40 mm | Controlled via precision CNC knurling heads |
The inherent design of the G-Type Finned Tube provides superior thermal efficiency, excellent structural rigidity, and remarkable resilience against high temperature thresholds up to 400°C.
When selecting thermal management components, the thermal efficiency of a G-Type Finned Tube stands out due to its ability to prevent fin loosening. In traditional tension-wrapped or L-foot configurations, sustained operational temperatures above 130°C can cause the aluminum fin to expand at a faster rate than the underlying steel tube. This differential thermal expansion creates a microscopic air gap, acting as a thermal insulator and causing heat transfer rates to decline rapidly. In contrast, the G-Type Finned Tube utilizes its embedded root and backfilled metal wall to maintain uniform physical contact even when facing extreme thermal cycling, preserving the heat path across its entire operating life.
Furthermore, the physical resilience of the G-Type Finned Tube extends to its resistance against external mechanical forces. During routine maintenance or standard high-pressure water washing procedures, exposed heat exchanger surfaces are frequently subjected to physical impacts that bend or deform standard fins. The secure embedded seating of a G-Type Finned Tube provides outstanding resistance against lateral deflection, ensuring that air passages remain clear and uniform. For facilities seeking reliable thermal performance within strict financial constraints, deploying an economical G-type finned tube ensures premium embedded performance without overextending procurement budgets.
This structural reliability translates directly into minimized operational downtime. By preventing fin separation and maintaining high heat transfer rates under demanding cyclic profiles, the G-Type Finned Tube allows industrial plants to run processes closer to peak capacity. The reduction in thermal degradation over time lowers overall energy consumption, delivering a lower total cost of ownership compared to less advanced surface-wound heat transfer equipment.
The exceptional durability and high temperature capabilities of the G-Type Finned Tube make it an essential component across heavy industries, including petrochemical plants, power generation facilities, and specialized HVAC systems.
In the oil and gas sector, the G-Type Finned Tube is frequently selected for high-pressure air-cooled heat exchangers (fin-fan coolers). These units are typically installed in arid regions or offshore platforms where water cooling is unavailable or impractical. The embedded fin assembly handles high-temperature hydrocarbon streams effectively, cooling them reliably before downstream processing. Its robust design ensures continuous performance despite high ambient temperatures and aggressive environmental conditions, preventing unplanned thermal shutdowns.
Power generation facilities also rely heavily on the G-Type Finned Tube for steam condensing circuits, turbine exhaust cooling, and boiler air preheaters. In these applications, the component is subjected to sustained thermal loads and massive structural stress from high-velocity cooling fans. The embedded fin design prevents the structural loosening caused by cyclic temperature fluctuations, keeping heat rejection rates stable. This reliable thermal performance directly supports optimal turbine efficiency and consistent power output across changing seasonal conditions.
Chemical Processing Plants: Used to condense aggressive solvent vapors and cool process gases within corrosive environments.
Refinery Fractionation Units: Handles high-temperature overhead gas streams requiring high thermal efficiency and minimal pressure drops.
Heavy Industrial HVAC Systems: Applied in large-scale air handling units and waste heat recovery loops to maximize thermodynamic efficiency.
Additionally, specialized manufacturing facilities use the G-Type Finned Tube in large-scale product drying tunnels and waste heat recovery installations. By extracting high-temperature thermal energy from exhaust flues and redirecting it back into process streams, industrial facilities significantly lower fuel consumption. This long-term thermodynamic stability helps operations lower overhead costs while maintaining high production volumes over extended periods.
Successful field performance of a G-Type Finned Tube setup requires careful mechanical alignment, proper tubesheet support, and precise torque control during installation to protect the embedded fins.
Integrating a G-Type Finned Tube bundle into a structural heat exchanger shell or air-cooler frame requires careful attention to detail. During the design phase, engineers must calculate the total thermal expansion of the tube bundle relative to the rigid outer frame. Because the base tube and the outer fin ribbon expand at different rates, adequate axial clearance must be provided at the floating tubesheet header. Restricting this expansion can cause severe tube bowing, which creates uneven airflow distributions and leads to premature mechanical wear at the tube-to-tubesheet joints.
To prevent external galvanic corrosion between dissimilar metals, the interface between the aluminum fin root and the steel base tube must be protected from moisture and airborne contaminants. During assembly, applying specialized protective coatings or using high-integrity sealing collars at the tube ends helps block corrosive agents from entering the groove. Furthermore, supporting structural plates must be lined with protective spacers to prevent direct metal-to-metal friction against the aluminum fins, protecting the extended surface area from vibration damage during operation.
Proper handling practices are equally critical during transportation and field installation. Tube bundles should always be lifted using wide fabric slings rather than metal chains or bare forks, which can crush or tear the fin profiles. Spacers and tube supports must be positioned at precise design intervals to minimize mid-span sag. This careful arrangement keeps the entire tube array structurally aligned, preventing fluid bypass and maintaining peak thermal efficiency within the heat exchanger module.
Implementing a structured maintenance routine for a G-Type Finned Tube assembly prevents particle fouling, maintains high heat transfer rates, and extends the service life of the entire thermal system.
Over extended operating cycles, the air-side spaces of a G-Type Finned Tube bundle can collect dust, atmospheric debris, and chemical scaling. This accumulation restricts airflow and adds an insulative fouling layer, which reduces heat transfer efficiency. To counter this, facilities should perform regular visual inspections and track static pressure drops across the tube bundle. When pressure drops exceed design limits, a scheduled cleaning program using high-pressure water jets or compressed air should be used to clear the debris and restore optimal thermal flow.
When cleaning a G-Type Finned Tube, the wash nozzles must be oriented perpendicular to the fin direction. Angled cleaning streams can bend or deform the aluminum fins, blocking air passages and permanently reducing performance. Chemical cleaning solutions, if required to dissolve stubborn oil residues, must be selected carefully to ensure they do not corrode the aluminum fins or attack the exposed base tube metal inside the grooves. Regular care and proper cleaning preserve the tight mechanical bond of the embedded assembly, preventing premature performance loss.
Working Principle and Operation Tip: The exceptional heat transfer stability of the G-Type Finned Tube relies entirely on the tight, deep contact between the fin root and the base tube groove. To maximize operational lifespan, avoid running the unit above its rated 400°C temperature threshold, as extreme overheating can cause permanent deformation of the groove walls. Additionally, maintain consistent airflow velocity across the bundle to prevent localized hot spots, which can cause uneven thermal expansion and accelerate mechanical wear at the fin interface over time. |
