Understanding Heat Exchanger Finned Tubes

Views: 135     Author: Site Editor     Publish Time: 2026-07-13      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Heat exchanger finned tubes are specialized components engineered to maximize thermal efficiency by expanding the external surface area of standard tubes, facilitating rapid and high-volume heat transfer across industrial applications. By incorporating high-performance surface geometries such as the G-Type Finned Tube, these systems dramatically lower thermal resistance, scale down equipment footprints, and optimize multi-phase thermal processing in rugged manufacturing environments.

Table of Contents

  1. What Are Finned Tubes?

  2. How Finned Tubes Work

  3. Applications Across Industries

  4. Benefits of Finned Tubes

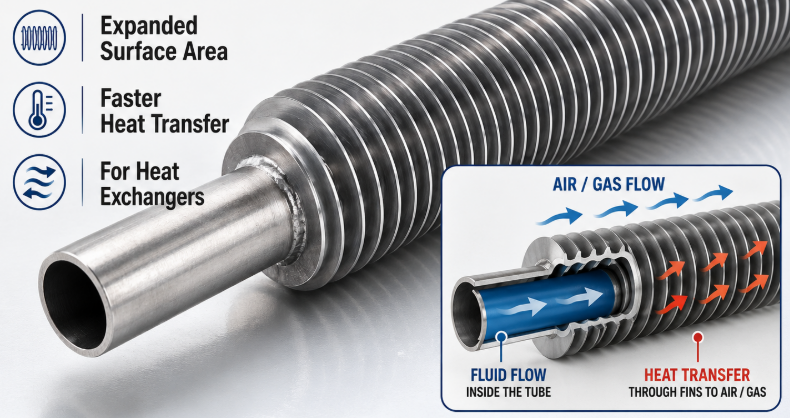

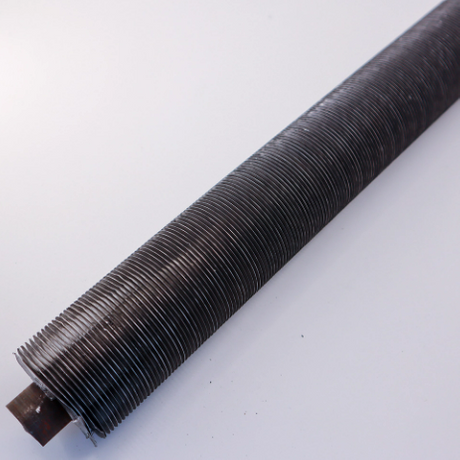

finned tube.png

What Are Finned Tubes?

Finned tubes are highly engineered heat transfer conduits featuring extended external metallic surfaces designed to overcome the inherent thermal resistance limitations of standard bare tubes when interacting with low-conductivity fluids or gases.

In traditional industrial thermodynamic systems, thermal energy is exchanged between two fluids moving through and around a metallic barrier. However, when one of these fluids is a gas, air, or a highly viscous substance, its natural convective heat transfer coefficient is substantially lower than that of internal liquids or steam. To balance this thermodynamic mismatch, engineers implement extended surfaces. By attaching macroscopic metallic fins to the outer shell of a primary pipe, the available boundary contact area is amplified exponentially, accelerating the total thermal transmission process without modifying internal operational flow parameters.

The manufacturing architecture of these components dictates their operational longevity and mechanical integrity. Various production methods are employed globally, including tension-winding, embedded grooves, high-frequency welding, and mechanical bimetallic extrusion. The selection of a specific configuration, such as a high-integrity G-Type Finned Tube, depends entirely on the operating temperatures, vibration stresses, corrosive atmospheres, and mechanical loads present in the process plant. Proper engineering alignment ensures that the physical contact between the fin base and the base tube remains uninterrupted throughout thousands of thermal expansion cycles.

Material composition represents another crucial engineering vector for these systems. Primary base tubes are typically manufactured from carbon steel, low-alloy steel, stainless steel, or copper alloys, whereas the fins are frequently fabricated from highly conductive aluminum or specialized steel ribbons. In high-stress or elevated temperature setups, utilizing a rugged Finned Tube Stainless Steel High Frequency Welded Heat Exchange Tube for Industrial Applications provides the requisite structural durability, eliminating the risk of fin detachment due to severe thermal shock or oxidizing atmospheric exposure.

Technical Specifications and Material Classifications

Fin Type Designator

Manufacturing Method

Maximum Operating Temperature

Base Tube Materials

Fin Material Selection

G-Type Finned Tube (Embedded)

Mechanical grooving and strip insertion into base pipe walls

400°C

Carbon Steel, Stainless Steel, Brass

Aluminum, Copper

L-Type / LL-Type (Wrapped)

Helical tension winding with L-shaped foot profile

130°C to 180°C

Copper Alloys, Carbon Steel

Aluminum

High-Frequency Welded

Continuous electric resistance welding of fin edge to tube

450°C to 550°C

Carbon Steel, Stainless Steel

Carbon Steel, Stainless Steel

Extruded (Bimetallic)

Cold rolling of an outer aluminum sleeve onto core tube

300°C

Titanium, Stainless Steel, Steel

Aluminum Alloys

Manufacturing Note: The G-Type Finned Tube relies on a precise machining sequence where a helical groove is plowed into the exterior surface of the core pipe. As the aluminum fin strip is wound under high tension into this groove, the displaced base metal is mechanically forced back against the sides of the fin foot. This provides a resilient mechanical bond that resists thermal cycling degradation up to 400°C, ensuring sustained contact conductance over decades of continuous operation.

How Finned Tubes Work

Finned tubes operate by exponentially expanding external surface areas to lower aggregate convective thermal resistance, enabling balanced heat transmission between internal high-coefficient liquids and external low-coefficient gases.

The core physics governing these systems is rooted in Fourier's Law of Thermal Conduction and Newton's Law of Cooling. In a standard shell-and-tube arrangement, the total thermal resistance is the summation of the internal convective resistance, the conductive resistance of the metallic pipe wall, the fouling resistances, and the external convective resistance. When air or gas flows over the exterior shell, its low heat transfer capability creates a thermal bottleneck. By incorporating a high-precision G-Type Finned Tube, the external surface area is enlarged by a factor of ten or greater, effectively counteracting the low convective coefficient and allowing the entire heat exchanger to reach its optimized thermal equilibrium.

Beyond surface expansion, the geometric orientation of helical fins induces highly beneficial micro-turbulences within the cross-flowing fluid stream. As gas passes across the finned array, the boundary layers that naturally form along flat surfaces are continuously disrupted, preventing the creation of a stagnant thermal insulation blanket. This localized turbulence forces rapid fluid mixing, which dramatically increases the localized convective heat transfer coefficient. Consequently, fluid velocity, fin pitch, and height must be mathematically balanced to optimize heat dissipation while remaining within allowed system pressure drop limits.

The long-term performance of this process depends heavily on the mechanical bond interface between the fin and the base tube. If any microscopic air gaps form due to mismatched thermal expansion or improper manufacturing tension, the joint's thermal resistance skyrockets, rendering the extended surface ineffective. Utilizing an advanced Finned Tube Stainless Steel High Frequency Welded Heat Exchange Tube for Industrial Applications creates a continuous metallurgically fused joint at the molecular level, ensuring that heat moves seamlessly from the core tube into the extended fin structure without facing contact resistance barriers under high-pressure conditions.

Thermodynamic Efficiency Vectors

Parameter Vector

Impact on Heat Exchanger Performance

Optimization Thresholds

Fin Pitch (Fins per Inch)

Determines the total surface multiplication factor and governs the boundary layer thickness.

5 to 14 FPI depending on particulate presence in gas

Fin Efficiency

Measures the actual heat transferred by the fin relative to an ideal isothermal fin surface.

Typically ranges from 85% to 95% in G-Type Finned Tube setups

Contact Conductance

Defines the thermal efficiency across the structural joint between fin and base pipe.

Maximized via embedded groove or molecular high-frequency welding

Gas-Side Pressure Drop

Dictates the fan or blower power requirements needed to force air through the fin matrix.

Must be restricted to prevent excessive operational energy costs

Thermodynamic Maintenance Tip: Regular monitoring of the gas-side pressure drop across a G-Type Finned Tube bundle is essential. A sudden increase in pressure differential typically indicates particulate accumulation or fouling between the narrow fin gaps. If unaddressed, this fouling layer acts as a powerful thermal insulator, rapidly reducing the fin efficiency and forcing the entire process plant to consume excess energy to maintain target process temperatures.

Applications Across Industries

Industrial heat exchanger finned tubes serve as indispensable components within heavy infrastructure sectors globally, where they are utilized to manage complex thermal conversions in power generation, chemical refinement, and HVAC plants.

In the petrochemical and refining sectors, processing plants handle large volumes of hydrocarbon gases that must be safely cooled or condensed under strict process parameters. Air-cooled heat exchangers (fin-fans) equipped with the Economical G-Type Finned Tube for Budget-Conscious Projects are deployed in these facilities to eliminate the need for vast cooling water infrastructures, thereby preventing environmental thermal pollution and reducing scaling issues within localized piping. These embedded configurations maintain their mechanical grip even during extreme desert ambient temperatures or sudden process steam temperature spikes.

In power generation, both fossil-fuel facilities and modern renewable plants rely extensively on optimized extended-surface tubing. Steam boiler systems utilize economizers built with heavy-duty finned arrays to capture waste energy from exhaust flue gases and preheat incoming boiler feedwater. Because these flue gas streams contain corrosive byproducts and abrasive ash particles, engineers rely on robust material selections like the Finned Tube Stainless Steel High Frequency Welded Heat Exchange Tube for Industrial Applications. This ensures that the fin-to-tube interface remains intact despite continuous ash blasting and corrosive acid condensation.

The industrial refrigeration, food preservation, and HVAC sectors represent another dominant application landscape for these components. Large-scale cold storage facilities, chemical chillers, and air handling systems require rapid cooling cycles to protect perishable inventories or stabilize reactive substances. Utilizing specialized bimetallic or embedded G-Type Finned Tube configurations allows these cooling units to maximize ambient air interaction, driving down compressor workloads and reducing electrical energy demand across the entire utility network.

Industrial Application Allocations

  1. Petrochemical Refineries: Condensation of overhead vapors, crude oil fraction cooling, gas processing plants, and high-pressure intercoolers.

  2. Power Plants: Boiler economizers, gas turbine inlet air cooling, steam air preheaters, and generator stator cooling loops.

  3. Chemical Processing: Reactor temperature control systems, fertilizer synthesis gas cooling, and hazardous chemical condensation lines.

  4. Heavy Manufacturing: Industrial air compressors, steel mill oil coolers, paper mill drying systems, and mining ventilation thermal exchangers.

Industrial Domain

Preferred Tube Architecture

Primary Process Benefit

Oil & Gas Processing

G-Type Finned Tube

Prevents fin shifting under heavy vibration, ensuring stable thermal outputs.

Flue Gas Recovery

High-Frequency Welded Stainless Steel

Resists high-velocity fly ash abrasion and severe chemical corrosion.

HVAC & Refrigeration

Extruded Aluminum-Copper Bimetallic

Provides exceptional atmospheric corrosion protection in humid environments.

Benefits of Finned Tubes

The primary operational benefits of utilizing advanced heat exchanger finned tubes center on major improvements in thermal efficiency, substantial reductions in equipment footprint, and exceptional long-term lifecycle savings.

First and foremost, the heat transfer enhancement provided by these components allows process engineers to design significantly smaller heat exchangers. When comparing a standard bare-tube bundle with an optimized Economical G-Type Finned Tube for Budget-Conscious Projects bundle, the total physical length and weight of the structural shell can be reduced by up to 70%. This reduction in equipment footprint is critical for offshore oil platforms, modular chemical skids, and urban power infrastructure plants where real estate is constrained and heavy structural weight incurs massive foundational expenses.

Secondly, these components yield major capital expenditure (CAPEX) and operational expenditure (OPEX) advantages over their operating lifespans. Because fewer total tubes are required to meet a specific heat duty, the consumption of costly primary alloy piping is reduced. Furthermore, the structural rigidity of configurations such as the Finned Tube Stainless Steel High Frequency Welded Heat Exchange Tube for Industrial Applications guarantees resistance against mechanical sagging, minimizing the need for intermediate support plates and protecting the installation from vibration-induced fatigue failures at critical tube-sheet junctions.

Lastly, the versatility of modern manufacturing processes allows for precise custom engineering tailored to highly specific operating conditions. Plant operators can specify exact fin counts, height configurations, wall thicknesses, and alloy matrices to handle highly corrosive or high-fouling fluids. By choosing a high-quality G-Type Finned Tube, facility managers safeguard their operations against unexpected shutdowns, maintain steady thermal performance under variable production loads, and achieve low total cost of ownership across decades of demanding industrial service.

Comprehensive Operational Advantages

  • Footprint Optimization: Drastically cuts down total heat exchanger size, lowering structure and shipping weights.

  • Enhanced Process Control: Enables rapid response to temperature adjustments due to reduced fluid volumes within the exchanger core.

  • Structural Reliability: Metallurgical or embedded bonds prevent physical degradation under severe high-velocity air streams.

  • Resource Conservation: Lowers required fan or blower energy by maintaining clean, aerodynamically optimized air pathways.

Conclusion

Understanding the design and application of heat exchanger finned tubes is vital for optimizing thermal performance in modern industrial processing. Selecting the ideal profile—whether it is the highly reliable embedded G-Type Finned Tube for robust thermal cycles or a heavy-duty high-frequency welded stainless steel configuration for corrosive atmospheres—directly impacts plant uptime, energetic efficiency, and equipment longevity. Investing in premium extended surface components ensures that industrial operations remain highly competitive, cost-effective, and aligned with rigorous environmental energy mandates worldwide.
