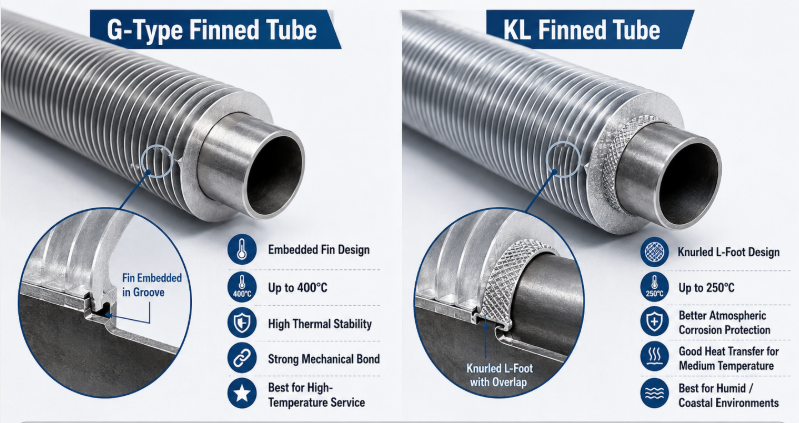

The primary difference between a G-Type Finned Tube and a KL Finned Tube lies in their manufacturing method and operational limits: the G-Type Finned Tube embedded design offers exceptional thermal efficiency and structural stability at extreme temperatures up to 400 degrees Celsius, whereas the KL Finned Tube knurled foot design provides superior atmospheric corrosion protection and optimal heat transfer for medium-temperature applications up to 250 degrees Celsius.

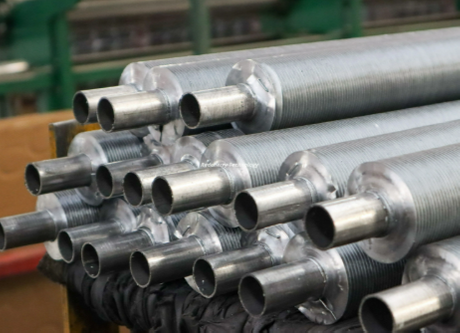

Introduction to Finned Tube Technologies in Industrial Heat Transfer
Understanding the G-Type Finned Tube Manufacturing and Design Mechanics
Deconstructing the KL Finned Tube Knurled Foot Architecture
Thermal Performance and Critical Operating Temperature Limits
Corrosion Resistance Profiles and Environmental Suitability Factors
Mechanical Integrity and Extended Maintenance Guidelines
Industrial Applications and Engineering Selection Frameworks
Industrial heat exchange relies heavily on maximizing surface area to ensure rapid and highly efficient thermal energy transfer between differing fluid media.
In many thermodynamic systems, the heat transfer coefficient on the air or gas side is significantly lower than that on the liquid side. To compensate for this physical imbalance, extended surfaces known as fins are integrated onto the exterior walls of the primary tubing. This modification vastly expands the external surface area, dramatically boosting overall heat transfer rates while keeping the equipment footprint compact and lightweight. Selecting the appropriate configuration is vital for long-term reliability.
Among the various configurations developed over decades of thermal engineering, the embedded type and the knurled foot type stand out as industry standards for demanding operating environments. These designs resolve the persistent engineering challenge of maintaining absolute mechanical contact between the fin material and the base tube wall under high temperatures and cyclic stress. Without a stable interface, thermal resistance skyrockets, rendering the entire system inefficient.
When selecting thermal components, design engineers must carefully weigh factors such as capital expenditure, operational temperatures, and ambient corrosiveness. For instance, when designing high-capacity systems, engineers often specify an Economical G-Type Finned Tube for Budget-Conscious Projects to optimize initial costs without compromising critical thermal performance thresholds. Understanding the manufacturing nuances of these components prevents premature failures in the field.
Parameter Name | Standard Metric Range | Impact on Heat Exchanger Performance |
Base Tube Outer Diameter (OD) | 15.88 mm to 50.8 mm | Determines internal fluid velocity, pressure drop, and volumetric capacity. |
Fin Height | 6.35 mm to 15.88 mm | Governs total external surface area and affects external air-side flow friction. |
Fin Pitch (Density) | 140 to 400 fins per meter | Controls thermal boundary layer interactions and susceptibility to fouling accumulation. |
Fin Material Thickness | 0.25 mm to 0.45 mm | Balances structural stiffness against material weight and conduction resistance. |
The G-Type Finned Tube relies on a rigorous mechanical embedding process where the aluminum fin strip is wound under high tension into a pre-cut groove on the base tube wall.
The manufacturing sequence of the G-Type Finned Tube requires precision machining. A specialized rolling tool formulates a helical groove directly into the outer surface of the base tube. The groove depth is carefully controlled, usually between 0.25 mm and 0.30 mm, ensuring the structural thickness of the base tube remains well within safe pressure design limits. Simultaneously, an aluminum fin strip is guided under massive tension into this moving groove, instantly following the helical path.
Immediately after the fin strip is placed inside the groove, a secondary metal displacement wheel cold-rolls the displaced base tube metal back against the root of the fin. This mechanical peening process locks the fin securely into the wall of the tube. Because the fin is structurally embedded below the original surface line of the base material, it achieves exceptional resistance to mechanical shifting, loosening, or uncoiling caused by thermal cycles.
This embedded interface ensures that even when the tube expands under high thermal loads, the structural bond remains tight. There is no air gap formation at the joint, maintaining a highly predictable thermal contact resistance over decades of continuous use. However, because the base metal is exposed to a cutting process, choosing high-quality base materials is critical to maintaining tube wall integrity, especially when fabricating a specialized Stainless Steel High Frequency Welded Heat Exchange Tube for Industrial Applications for corrosive or high-stress process fluids.
Component Part | Standard Materials Used | Critical Manufacturing Specification |
Base Tubing Wall | Carbon Steel, Stainless Steel, Brass | Minimum initial wall thickness must accommodate the 0.3 mm groove depth safely. |
Fin Strip Medium | Aluminum (Al99.5), Copper | High tensile strength strip required to prevent tearing during high-tension winding. |
Embedding Groove | Helical configuration | Controlled width matching the fin thickness precisely to prevent structural play. |
Locking Lip | Displaced base metal | Cold-formed peening pressure must be perfectly uniform across the entire length. |
G-Type Operational Working Principle: The design functions by creating a continuous metal-to-metal bridge deep within the tube wall line. When hot process fluid flows internally, heat conducts directly through the primary wall into the embedded fin base without encountering air gaps. The high winding tension creates a constant inward radial force, ensuring that differences in thermal expansion between aluminum and steel do not degrade the contact interface at elevated temperatures. |
The KL Finned Tube features a specialized knurled L-shaped foot profile that wraps completely around the base tube, providing full surface coverage and outstanding atmospheric protection.
The fabrication of the KL Finned Tube begins by passing an aluminum strip through a multi-stage rolling mill that shapes the metal strip into an accurate 'L' geometry. The horizontal foot section of this 'L' profile is given a controlled, structured pattern through a precise knurling wheel. Simultaneously, the outer surface of the base tube is lightly knurled or roughened to create a microscopic matrix of peaks and valleys across its exterior.
As the prepared fin strip is wrapped around the base tube under controlled tension, the pre-formed L-foot is pressed firmly against the tube wall. The knurled pattern on the inner side of the fin foot interlocks mechanically with the roughened surface of the base tube. This knurling interaction dramatically increases the effective friction and micro-contact points between the two metals, optimizing both mechanical grip and thermal conduction paths.
A major advantage of this configuration is that the adjacent L-feet overlap tightly along the entire length of the assembly. This creates a continuous aluminum sheath over the base tube. Consequently, the underlying base metal is completely sealed against external air and moisture, preventing atmospheric oxidation or galvanic corrosion at the fin-tube interface, which makes it ideal for humid environments.
Structural Element | Design Characteristics | Functional Purpose |
Knurled L-Foot | Patterned horizontal flange | Multiplies surface contact contact points and prevents axial fin sliding. |
Overlapping Joint | Tight interlocking edge | Forms a complete barrier to isolate the base tube from ambient moisture. |
Base Tube Preparation | Roughened outer diameter | Enhances micro-interlocking with the aluminum foot under winding tension. |
Winding Profile | Concentric tension wrap | Maintains uniform contact pressure across the entire operating spectrum. |
The G-Type Finned Tube exhibits superior thermal performance at extreme operating temperatures up to 400 degrees Celsius, whereas the KL variant is typically restricted to a maximum of 250 degrees Celsius.
When analyzing heat transfer efficiency under escalating thermal loads, the mechanical interface between the tube and the fin determines the performance decay curve. As temperatures rise, aluminum expands at roughly twice the rate of carbon steel or stainless steel. In designs where the fin simply sits on top of the tube surface, this differential thermal expansion causes the fin foot to pull away from the base tube, creating an air gap that acts as a thermal insulator.
The G-Type structure eliminates this failure mode because the fin is physically locked within a groove below the tube's surface. The peened base metal mechanically constrains the aluminum root. Even when operating at high temperatures up to 400°C, the embedded bond remains intact, preventing air gap formation and maintaining an exceptionally low thermal contact resistance throughout its operating life.
Conversely, the KL design relies on surface contact pressure and micro-interlocking knurls. While the knurled foot significantly improves grip compared to standard L-fins, temperatures exceeding 250°C cause the aluminum foot to expand radially outward faster than the base tube. This reduces the interlocking contact pressure, leading to a progressive drop in thermal efficiency and making it unsuited for high-temperature superheaters or process gas coolers.
Performance Metric | G-Type Finned Tube Specification | KL Finned Tube Specification |
Maximum Operating Temperature Limit | 400°C (752°F) | 250°C (482°F) |
Thermal Interface Stability | Excellent up to maximum temperature | Moderate; degrades above 230°C |
Initial Thermal Contact Resistance | Extremely Low (Groove Bound) | Low (Knurl Enhanced) |
Resistance to Thermal Cycling Shock | Outstanding | Moderate to High |
The KL Finned Tube provides superior protection against atmospheric corrosion due to its continuous overlapping aluminum sheath, whereas the G-Type leaves a small gap at the groove entry that can be vulnerable to moisture ingress.
In highly corrosive outdoor environments, marine settings, or chemical plants, selecting the right tube configuration depends heavily on how well it protects the base tube from moisture and chemicals. The KL design excels here because the L-shaped fin feet overlap tightly from one fin to the next, completely encasing the base tube in a protective aluminum barrier. This prevents ambient moisture or corrosive gases from contacting the underlying steel tube, eliminating galvanic corrosion risks at the interface.
For the G-Type design, the embedding process requires cutting a groove into the base tube wall. While the displaced metal is peened tightly against the fin, microscopic clearances remain at the groove edge. If installed in an environment with high humidity or chemical vapors, moisture can migrate into these tiny spaces over time. This can cause localized galvanic corrosion between the aluminum fin and the steel tube, potentially degrading the groove walls and loosening the fin root over extended service periods.
To mitigate these corrosion risks in aggressive process environments, engineers frequently specify a robust Stainless Steel High Frequency Welded Heat Exchange Tube for Industrial Applications. Utilizing stainless steel as the base material provides inherent protection against moisture ingress at the groove roots, combining the high-temperature capabilities of the G-type geometry with outstanding corrosion resistance.
Environmental Hazard | G-Type Performance Level | KL Performance Level |
High Atmospheric Humidity | Moderate; requires protective coatings | Excellent; inherently self-protecting |
Marine Salt Spray Environments | Not recommended without specialized alloy bases | Highly Recommended |
High-Temperature Dry Flue Gas | Excellent; optimal for waste heat recovery | Limited by thermal expansion constraints |
Acidic Chemical Vapor Exposure | Susceptible to localized crevice attack | Superior protection for the base tube structure |
The G-Type Finned Tube possesses exceptional mechanical rigidity, allowing it to withstand high-pressure water jetting during routine cleaning without fin displacement.
Over months of continuous operation, air-cooled heat exchangers accumulate dust, debris, organic matter, and industrial fouling on their external fin surfaces. This fouling layer reduces air flow and creates high thermal resistance, requiring periodic cleaning. Maintenance crews typically use high-pressure water blasting or compressed air lances to clear these deposits, which subjects the fins to severe mechanical forces.
The G-Type embedded design handles high-pressure cleaning exceptionally well. Because the fin root is physically anchored below the surface inside a locked groove, the fins resist bending, tearing, or shifting even when targeted by direct, high-pressure water streams. This durability simplifies maintenance, allowing operators to clean the bundle aggressively to restore peak thermal performance without risking structural damage.
The KL variant requires a more cautious maintenance approach. Since the fins are held in place by surface tension and micro-knurls on the tube exterior, excessive lateral force from high-pressure water jets can distort the L-foot or loosen its mechanical grip. If the L-foot shifts, the overlapping seal breaks, allowing moisture to enter and reducing the thermal contact pressure between the fin and the tube wall. Maintenance teams must carefully regulate jetting pressures and angles when cleaning KL tube bundles.
Mechanical Evaluation Property | G-Type Characteristic | KL Characteristic |
Max Safe Cleaning Water Pressure | Up to 150 bar (Direct Alignment) | Restricted to 80-100 bar (Angled/Diffused) |
Resistance to Aerodynamic Vibration | Excellent; no risk of uncoiling | Good; potential tracking loss under severe resonance |
Fin Root Mechanical Bond Strength | Very High (Mechanically Locked) | Moderate (Tension Interlocked) |
Susceptibility to Accidental Handling Damage | Low | Moderate (Fin foot can be displaced laterally) |
Maintenance Best Practices and Cleaning Tips: When cleaning finned tube heat exchangers, always align the wash nozzles parallel to the fin direction to minimize mechanical bending stresses. For KL bundles, use a wide-angle fan nozzle rather than a concentrated solid stream to distribute the impact force safely across the overlapping feet. Regularly inspect the fin-to-tube boundary for signs of white aluminum oxide formation, which indicates moisture penetration and early galvanic activity. |
Selecting between G-Type and KL Finned Tubes depends on a balanced evaluation of process operating temperatures, environmental corrosiveness, and project budget constraints.
Engineering procurement teams must evaluate the full operating profile of a heat exchanger before specifying a fin configuration. For high-temperature process lines, such as refinery steam condensers, petrochemical fraction coolers, or power plant waste heat recovery systems operating above 250°C, the G-Type embedded design is the clear technical choice due to its stable thermal contact and resistance to thermal degradation.
For medium-to-low temperature applications operating below 250°C—such as HVAC condensers, compressor intercoolers, or air-cooled heat exchangers in coastal or highly humid industrial zones—the KL finned tube is highly advantageous. Its overlapping foot design seals the base tube against atmospheric moisture, preventing corrosion and ensuring long-term operational reliability in humid conditions.
Project economics also play a crucial role in component selection. When managing tight capital budgets for installations with moderate thermal demands, utilizing an Economical G-Type Finned Tube for Budget-Conscious Projects allows companies to meet high-temperature requirements efficiently without over-specifying materials or fabrication methods. Balancing technical capabilities with total life-cycle costs ensures an optimal engineering solution.
Industrial Application Field | Recommended Tube Selection | Primary Engineering Justification |
Power Plant Steam Condensers | G-Type Finned Tube | Withstands high steam temperatures and handles thermal expansion cycles reliably. |
Coastal Oil Refinery Air Coolers | KL Finned Tube | Overlapping aluminum feet protect steel tubes from marine salt air corrosion. |
District Heating Heat Exchangers | KL Finned Tube | Provides cost-effective thermal transfer for low-temperature water loops. |
High-Temperature Waste Heat Recovery | G-Type Finned Tube | Maintains mechanical and thermal integrity under continuous high flue gas temperatures. |
In conclusion, both the G-Type embedded finned tube and the KL knurled foot finned tube offer distinct, proven advantages for industrial heat transfer applications. The G-Type excels in high-temperature, mechanically demanding environments where thermal contact must remain flawless up to 400°C. Meanwhile, the KL design provides exceptional atmospheric corrosion protection and reliable performance for mid-temperature installations up to 250°C. By carefully matching the specific operating parameters, cleaning requirements, and environmental conditions of your project to the correct fin geometry, engineering teams can ensure maximum thermal efficiency, minimal maintenance overhead, and extended equipment lifetimes.
