Aluminum is a versatile, lightweight, and durable material widely used in engineering and manufacturing. However, during the CNC machining process, aluminum parts—particularly those derived from aluminum extrusions and aluminum profiles—are notorious for suffering from internal stress relief, which leads to unwanted warping, twisting, and deformation. As manufacturers strive to create high-precision aluminum frame assemblies, understanding how to mitigate these issues is critical for maintaining quality and reducing waste.
To avoid part deformation in aluminum CNC machining, you must utilize stress-relieved materials, implement strategic machining paths, employ proper workholding techniques, and manage thermal loads throughout the cycle.
By adopting these advanced manufacturing techniques, engineers can ensure that their aluminum extrusions maintain structural integrity throughout the machining process. Addressing these challenges not only improves the geometric accuracy of the final aluminum profile but also significantly reduces costs associated with scrap parts and post-machining rectification. This guide explores the technical methodologies required to maintain precision when working with high-performance aluminum frame components.
What cross-section shapes bend most easily?
How to calculate bend radius for extrusion profiles?
What wall thickness is optimal for bending?
How to avoid wrinkling or flattening during bends?
Conclusion

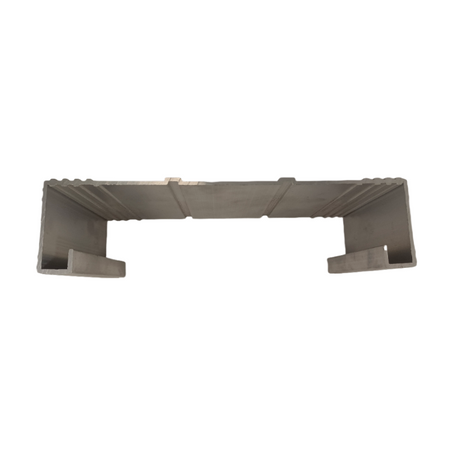

Cross-section shapes with high section modulus values and asymmetrical profiles, such as thin-walled open channels or U-channels, are the most susceptible to bending and deformation during CNC machining.
The geometric configuration of an aluminum extrusion is a primary factor in its structural stability. When machining complex aluminum profiles, the distribution of mass dictates how the material reacts to the removal of metal. Open-shaped profiles, which lack closed loops or internal ribbing, offer less resistance to the compressive and tensile forces exerted by cutting tools.
In the context of constructing an aluminum frame, designers must be aware that certain shapes are inherently more unstable. For instance, a flat bar or a thin-walled U-channel has a lower moment of inertia compared to a hollow box section. When material is removed from one side of these asymmetric shapes, the internal stresses caused by the extrusion process are released unevenly, causing the part to "bow" or "banana" almost instantly.
To prevent this, engineers often prefer closed-loop aluminum profiles like square or rectangular tubing when high structural stability is required. If an open shape must be used, CNC programmers often recommend a "balanced" removal of material—machining equal amounts from both sides of the part simultaneously—to keep the internal stress state in equilibrium throughout the milling operation.
Calculating the bend radius for an aluminum profile requires determining the minimum radius that prevents the outer fibers of the material from reaching their ultimate tensile strength, usually calculated as a multiple of the wall thickness (R = k * t).
When engineers design an aluminum frame that requires bent components, the math behind the bend radius is non-negotiable. If the bend radius is too tight for the alloy, the material will crack or deform beyond acceptable tolerances. For most standard aluminum extrusions, the rule of thumb is to maintain a radius that is at least 3 to 5 times the wall thickness, depending on the specific temper.
To calculate this, engineers utilize the following variables:
R: The minimum internal bend radius
t: The wall thickness of the aluminum profile
k: A constant based on the alloy ductility
| Alloy Temper | Recommended Bend Factor (k) |
| 6063-T4 | 2.5 - 3.0 |
| 6063-T6 | 3.5 - 4.5 |
| 6061-T6 | 4.0 - 5.0 |
When working with aluminum extrusions, precision is paramount. If the radius is too small, the metal experiences localized strain hardening, which can lead to stress corrosion cracking later in the product's life. Always consult the manufacturer's data sheets for your specific aluminum profile to ensure the bending equipment and the material properties are compatible.
The optimal wall thickness for bending aluminum profiles typically ranges between 1.5mm and 3.0mm, providing enough structural support to prevent localized collapse while remaining thin enough to be pliable without excessive force.
When selecting aluminum extrusions for a project, the wall thickness is the silent arbiter of success. If the wall is too thin (below 1.0mm), the profile is susceptible to "caving in" or buckling under the pressure of the bending dies. Conversely, walls that are too thick (above 5.0mm) require extreme amounts of force, which increases the likelihood of spring-back—where the metal tries to return to its original straight state after the bending force is removed.
For most industrial aluminum frame applications, a thickness of roughly 2.0mm serves as the "sweet spot." This thickness provides sufficient rigidity for standard connections and fasteners while allowing for controlled deformation during bending operations. When utilizing CNC machining after bending, the wall thickness must be sufficient to withstand the clamping forces of the vise or jig.
Thin Walls: Faster cooling, easier to bend, but prone to distortion.
Thick Walls: Stronger, more resistant to thermal warping, but difficult to form.
Engineers should aim for a uniform thickness across the entire cross-section of the aluminum profile to ensure that the stress is distributed evenly during the bending process, preventing weak points that lead to inconsistent structural integrity.
To prevent wrinkling or flattening during the bending of aluminum extrusions, you must use internal support mandrels, external wiper dies, and strictly controlled bend pressure to maintain the cross-sectional geometry.
Wrinkling usually occurs on the inner radius of the bend due to compressive forces causing the excess material to bunch up. Flattening, on the other hand, occurs when the outer radius loses its support and the hollow aluminum profile collapses. These defects are the most common reasons for failed parts in aluminum frame production.
To mitigate these, professional machine shops employ several high-precision techniques:
Mandrels: Inserting a flexible, high-strength steel mandrel into the hollow section of the aluminum extrusion provides internal support, preventing the walls from collapsing inward.
Wiper Dies: These are positioned closely against the part to "wipe" the metal and prevent the formation of waves or wrinkles as the material flows around the bend.
Pressure Setting: Using a CNC bending machine with programmable pressure allows for a gradual increase in force, preventing the sudden shock that often causes material tearing or severe deformation.
By implementing these technologies, manufacturers can maintain the geometric integrity of their aluminum profiles even under tight bending conditions. Proper lubrication is also essential; reducing friction between the die and the material surface helps the aluminum flow smoothly rather than dragging and wrinkling.
Successfully machining and bending aluminum extrusions requires a deep understanding of material behavior, geometric constraints, and the limitations of your CNC equipment. Whether you are constructing a complex aluminum frame or precision-machining a structural aluminum profile, the key to avoiding deformation lies in preparation. By selecting the correct wall thicknesses, respecting the minimum bend radii, and using internal support mechanisms like mandrels, you can achieve the high-precision results required for modern industrial applications. Investing time in these strategies will minimize waste, reduce costs, and ensure that your final product meets the highest standards of structural and aesthetic integrity.
