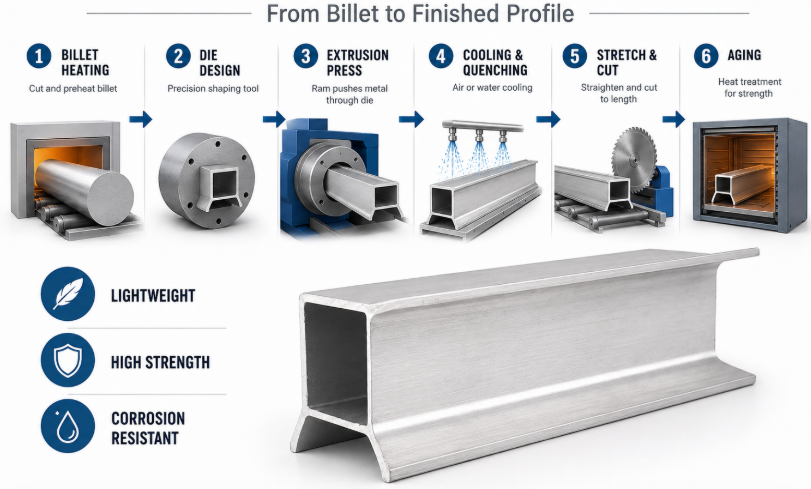

Inside an Aluminum Extrusion Factory: Full Production Process

Introduction to Aluminum Extrusion

The aluminum extrusion process is an advanced industrial manufacturing method where raw aluminum alloy billets are preheated and forced under immense pressure through a shaped steel die to create continuous profiles with a uniform cross-section. This manufacturing technique allows for the creation of intricate shapes that combine structural integrity with minimal weight, making it an indispensable process for modern industrial supply chains.

The foundation of this process relies on the unique metallurgical properties of aluminum, particularly its exceptional formability when elevated to specific plastic deformation temperatures. Industrial manufacturing facilities leverage this characteristic to produce highly complex geometries that would be impossible or prohibitively expensive to manufacture using traditional machining, casting, or welding methods. The resulting Aluminum Extrusion Profile provides an optimized strength-to-weight ratio, excellent corrosion resistance, and superb thermal conductivity, which are essential for critical industrial applications.

To understand the scope of this manufacturing sector, it is necessary to examine the primary classifications of profiles generated during daily factory operations. Production outputs generally fall into three distinct categories based on their geometric configuration and intended structural utilization:

1. Solid Profiles: These shapes do not contain any enclosed voids or hollow spaces. Typical examples include solid flat bars, heavy-duty hexagonal rods, structural angles, and rectangular channels used extensively in heavy machinery framing and structural support systems.

2. Hollow Profiles: These configurations feature one or more fully enclosed internal voids within the cross-sectional geometry. Common examples include square tubing, cylindrical pipes, and multi-void rectangular beams engineered for fluid transport, conduit systems, or high-torsion structural frameworks.

3. Semi-Hollow Profiles: These designs feature a partially enclosed void where the opening to the exterior is restricted. This specific geometry is frequently deployed in customized tracks, specialized heat sinks, and complex architectural interlocking window and door systems.

The choice of specific aluminum alloys further refines the mechanical capabilities of the finished profile. Factories predominantly utilize the 6000 series aluminum alloys, which blend magnesium and silicon to provide excellent extrudability, superior corrosion resistance, and strong response to post-extrusion heat treatments. This makes the standard industrial Aluminum Extrusion Profile highly adaptable for both rugged structural applications and precise electronic housing components.

Preparation of the Aluminum Billet

The preparation of the aluminum billet involves selecting high-quality alloy logs, cutting them into production-length pieces, and preheating them inside a gas or induction furnace to a precise plastic state where the metal can flow under pressure without melting. This initial thermal preparation is critical because improper billet temperature directly causes surface defects, structural inconsistencies, and premature wear on the extrusion tooling.

Before entering the main hydraulic press, raw aluminum alloy is stored in long cylindrical logs. These logs undergo rigorous inspection to ensure the chemical composition meets exact industrial standards, particularly regarding the uniform distribution of alloying elements like magnesium and silicon. Automated log saws or shear machines slice these long pieces into smaller, manageable sections known as billets, with lengths calculated based on the target profile weight and the total capacity of the extrusion press container.

Once cut, the billets travel via automated conveyors into specialized preheating furnaces. The thermal management at this stage requires strict precision, as detailed in the following processing parameters:

Achieving a uniform temperature throughout the entire cross-section of the billet is paramount. If the core of the billet remains cooler than the exterior skin, the metal will flow unevenly through the die, leading to internal stresses and dimensional inaccuracies in the finished product. Conversely, overheating the metal causes localized melting at the grain boundaries, a catastrophic defect known as hot shortness that ruins the structural properties of the profile.

Furthermore, proper billet preparation includes applying a thin layer of release agent or lubricant, such as boron nitride, to the shearing blade and the face of the billet. This prevents the hot, sticky aluminum from adhering to the mechanical components of the press. Proper lubrication ensures a clean separation after the extrusion cycle concludes, maintaining a continuous production flow and preventing contamination within the metallurgical structure of the next billet in queue.

Die Design and Function

The extrusion die is a precision-engineered tool crafted from high-strength H13 hot-work tool steel that contains a specifically machined aperture representing the exact cross-sectional geometry of the desired aluminum profile. The die must withstand extreme thermal shock and immense mechanical pressures during production, making its engineering design the most critical factor in controlling the final dimensional accuracy of the extruded metal.

The design of an industrial die requires advanced computer-aided design software coupled with finite element analysis to predict exactly how the hot aluminum will behave under pressure. Because aluminum flows faster through wider sections of a die than through narrow, restricted channels, die designers utilize varying bearing lengths to regulate metal flow speed. By increasing the frictional resistance in wider areas, the velocity of the exiting metal is equalized across the entire shape, preventing twisting and warping.

To accommodate different geometric complexities, tool manufacturing facilities produce distinct classes of dies, which can be categorized by their mechanical configurations:

1. Flat Dies: Utilized exclusively for solid profiles, these tools feature a simple cut-through design where the metal enters one side and exits as a finished shape. They require less complex machining and generate minimal frictional heat during the process.

2. Porthole Dies: Engineered specifically for hollow shapes, these multi-part assemblies split the single incoming stream of solid aluminum into multiple separate streams. These streams flow around internal core supports before pressure-welding back together inside a welding chamber just before exiting the final die orifice.

3. Pocket Dies: These tools incorporate a recessed pocket on the front face of the die to control metal flow and facilitate continuous extrusion cycles. The pocket retains a small reservoir of plasticized alloy, ensuring a seamless metallurgical bond between successive billets.

The manufacturing of these dies involves electrical discharge machining and precision CNC milling to achieve tolerances measured in microns. After machining, the steel tools undergo rigorous gas nitriding heat treatments to create an incredibly hard, wear-resistant layer on the bearing surfaces. This specialized surface treatment protects the die from the abrasive action of moving hot aluminum, extending the operational lifespan of the tool and ensuring the consistent quality of every Aluminum Extrusion Profile produced during long manufacturing runs.

The Extrusion Press Operation

The extrusion press operation is the core mechanical stage where a high-capacity hydraulic ram applies millions of pounds of pressure to push the preheated plasticized aluminum billet through the container and out of the engineered die assembly. This dramatic mechanical compression forces the alloy to conform entirely to the internal geometry of the tooling, transforming a solid block of metal into a continuous, uniform structural shape.

The process begins when an automated loading mechanism places the preheated billet into the insulated container of the press. The container is a heavy steel cylinder lined with heat-resistant materials, maintained at a temperature slightly lower than the billet to prevent excessive cooling. Once the billet is positioned, the main hydraulic cylinder advances, driving a massive steel ram forward. At the front of this ram is a sacrificial dummy block, which acts as a precision seal to compress the aluminum without letting it slip backward around the ram assembly.

The mechanical force required to complete this task depends directly on the complexity of the shape and the properties of the chosen alloy. The operational dynamics of the press can be classified into distinct phases:

As the ram pushes forward, the aluminum undergoes extreme shear deformation. The metal adjacent to the container walls experiences significant friction, causing the inner core of the billet to flow forward faster than the outer skin. This surface friction creates a distinct metal flow pattern that must be carefully managed to prevent surface oxide contaminants from entering the core structure of the finished profile.

At the final stage of the stroke, a specific portion of the billet remains unextruded against the die face. This remaining section, called the discard or butt, contains the concentrated surface impurities and oxides from the billet skin. An automated hydraulic shear drops down instantly at the end of the cycle to cut this butt section away from the die face. The discarded material is automatically collected and routed directly to a recycling furnace, ensuring high material efficiency within the facility.

Cooling and Quenching in Aluminum Extrusion

Cooling and quenching in aluminum extrusion is the immediate thermal management process where the freshly extruded profile exiting the die is rapidly cooled using forced air, mist, or high-volume water baths to lock in the metallurgical structure and achieve the desired mechanical properties. This process serves as the initial step in solution heat treatment, ensuring that the alloying elements remain perfectly dissolved within the aluminum solid matrix.

As the continuous profile emerges from the press jaw onto the run-out table, its temperature can exceed 500 degrees Celsius. At this elevated thermal state, the internal grain structure is highly malleable and vulnerable to distortion. The quenching system must drop the temperature of the metal below critical levels within an exact timeframe to prevent the premature precipitation of magnesium silicide particles, which would significantly degrade the ultimate strength of the alloy.

The choice of quenching medium depends entirely on the thickness of the profile walls and the specific structural requirements of the final product. Industrial production lines utilize a variety of cooling configurations:

1. Forced Air Cooling Fans: Deployed primarily for thin-walled sections or intricate geometries that are prone to warping under sudden thermal shock. High-velocity fans direct uniform air currents across the top and bottom surfaces of the profile.

2. Water Mist Systems: A balanced configuration that combines compressed air with atomized water droplets to deliver a higher cooling rate than air alone, without causing the severe geometric distortion associated with complete water immersion.

3. Full Water Deluge Quenching: Reserved for heavy-duty, thick-walled industrial shapes that require maximum cooling velocity to achieve superior mechanical properties. The profile passes through a continuous high-volume water curtain or submerged bath.

To ensure uniform cooling along the entire length of the run-out system, the cooling table incorporates advanced temperature monitoring sensors. If one side of a complex profile cools faster than the other, the differential thermal contraction will cause the profile to bend or bow sideways, creating a severe geometric defect. Automated control loops dynamically adjust the fan speeds or water flow rates across the cooling zone to maintain structural equilibrium, preserving the precise dimensional accuracy of the emerging Aluminum Extrusion Profile.

Stretching and Straightening Aluminum Extrusions

Stretching and straightening is a mechanical post-extrusion process where cooled aluminum profiles are secured at both ends by hydraulic jaws and pulled under high tension to eliminate longitudinal twists, relief residual internal stresses, and align the shape to precise structural linearity. This operation is necessary because the uneven cooling rates and friction experienced during the press and quench stages inevitably introduce subtle physical distortions along the long lengths of metal.

Once the continuous profile reaches a stable handling temperature, usually below 50 degrees Celsius, it is mechanically transferred from the run-out cooling table to the parallel stretching table. The stretching machine consists of a stationary tail stock gripper and a movable head stock gripper powered by heavy-duty hydraulic cylinders. Operators or automated robotic arms position the ends of the long profiles into these specialized jaws, ensuring a secure grip across the entire cross-sectional area to prevent slippage.

The application of mechanical tension must be carefully calculated based on the cross-sectional area and the specific yield strength of the un-aged alloy. The mechanical transformation during this stretching phase occurs in precise stages:

Improper execution of the stretching process can ruin an entire production batch. If the hydraulic force is too low, the residual internal stresses will remain unresolved, causing the metal to warp during subsequent cutting or machining operations. Conversely, over-stretching the material stresses the crystalline lattice too far, reducing the ductility of the alloy and potentially causing catastrophic tearing along thin wall sections.

Modern factories utilize automated laser measurement systems that continuously track the straightness and cross-sectional dimensions of the profile during the stretching cycle. The hydraulic controls receive real-time feedback, automatically stopping the pulling motion the instant the exact elongation target is reached. This precise control guarantees that every profile achieves the straightness tolerances required for advanced industrial assemblies.

Cutting to Length: Precision in Aluminum Extrusion

Cutting to length is the mechanical operation where the straightened, long-run aluminum profiles are transferred to a specialized saw table and sliced into specific commercial or custom dimensions using high-speed circular saw blades. This step transforms the continuous lengths of metal into distinct, stackable products while ensuring that the cut faces are perfectly square and free of structural burrs.

After completing the stretching operation, the long profiles are indexed sideways onto a multi-belt batching table that feeds into the cut-off saw station. The industrial saw unit features a large-diameter carbide-tipped circular blade engineered specifically for clean cuts through non-ferrous metals. The blade is cooled continuously by a minimal-quantity lubrication system that sprays a fine mist of synthetic oil, preventing aluminum chips from welding to the saw teeth and compromising the surface finish of the cut.

To achieve maximum efficiency and reduce material waste, production facilities optimize the cutting layout using specialized programming software. The cutting workflow involves several critical handling steps:

1. Front End Trimming: The initial cut removes the distorted metal that was held inside the hydraulic stretcher jaws. This front-end scrap is routed directly to the internal recycling collection bins.

2. Batch Sawing Operations: Multiple profiles are aligned horizontally side-by-side and clamped down simultaneously by pneumatic hold-down shoes. This allows the saw to cut through an entire batch in a single pass, increasing factory throughput.

3. Tail End Cropping: The final cut separates the usable production lengths from the rear stretcher grip mark, ensuring that every piece packed for the next stage exhibits flawless structural consistency.

The precision of this cutting stage is verified using electronic stop gauges that lock into position along the outfeed table. These automated systems maintain length tolerances within fractions of a millimeter, which is essential for components destined for automated assembly lines or precision structural framing. As the cut profiles exit the saw chamber, high-pressure air nozzles blast away residual metal chips before automated vacuum lifters stack the finished pieces into steel transport crates lined with protective spacer materials.

Heat Treatment and Aging: Enhancing Aluminum Profiles

Heat treatment and aging is the final thermal processing stage where the cut aluminum profiles are placed inside precisely controlled aging ovens for a specified duration to accelerate the precipitation of alloying elements, maximizing the tensile strength, yield strength, and hardness of the metal. This metallurgical process alters the internal crystal structure, transitioning the aluminum from a relatively soft state into its final high-performance industrial temper.

Freshly extruded and quenched aluminum is in a naturally soft condition known as the T4 temper. While it can be formed or fabricated easily in this state, it lacks the structural load-bearing capacity required for most engineering applications. To achieve the standard commercial T6 temper, the profiles must undergo artificial aging. This involves reheating the metal to an intermediate temperature, well below the initial extrusion temperature, and holding it there to allow the microscopic magnesium silicide elements to form a uniform strengthening precipitate throughout the aluminum matrix.

The effectiveness of this thermal treatment depends on a precise balance between time and temperature inside the aging furnace. The operational parameters for standard 6000 series alloys follow a strict thermal profile:

Controlling the aging cycle requires absolute precision. If the profiles are removed from the oven too early, a condition known as under-aging occurs, leaving the metal with insufficient yield strength. On the other hand, leaving the profiles in the furnace for too long leads to over-aging, where the precipitate particles grow too large and lose their ability to efficiently block dislocation movements within the crystal lattice, resulting in a brittle, weakened product.

Once the precise soaking time concludes, the heavy furnace doors open, and the material crates are moved into a cooling zone to return to ambient factory temperature. Samples from each thermal batch are immediately routed to the quality control laboratory, where technicians perform hardness testing using Webster or Rockwell gauges and tensile testing to confirm compliance with international engineering standards.

Summary of Factory Production Quality

The modern aluminum extrusion facility relies on a continuous chain of precision operations where every stage directly influences the quality of the final product. From the initial thermal preparation of the raw billet to the microscopic transformations achieved inside the artificial aging ovens, strict process control ensures that the resulting materials meet structural specifications. By combining advanced mechanical engineering with rigorous metallurgical science, factories transform raw alloy into highly specialized profiles capable of withstanding severe industrial operational demands.

Maintaining competitive advantages in the global marketplace requires manufacturing facilities to invest heavily in automated monitoring systems, advanced die design technologies, and energy-efficient thermal processing equipment. These continuous technical refinements optimize material yield, reduce scrap rates, and guarantee the absolute dimensional stability of every production run. Ultimately, this comprehensive manufacturing process underscores why aluminum profiles remain a cornerstone of modern industrial innovation, structural design, and manufacturing efficiency worldwide.
