Square structural tubing provides exceptional multi-axis load distribution, structural integrity, high strength-to-weight ratio, and clean geometric alignment, making it an indispensable component across modern construction, industrial manufacturing, architectural framing, and heavy transportation infrastructure.
Section | Summary |
How is a square structural steel tube manufactured? | Square hollow sections are produced through raw coil slitting, cold roll-forming into cylindrical shapes, continuous high-frequency induction welding, sizing roll calibration, and precise fly-cutting into finished stock lengths. |
Square structural tube applications | Structural square tubes provide essential framing in modular building systems, solar panel racking assemblies, automated conveyances, trailer chassis, and architectural glazing support structures. |
Properties | Comprehensive mechanical, chemical, physical, and geometric metrics define square structural tubing, highlighting key yield strength, tensile resilience, torsional moment of inertia, and wall thickness uniformities. |
Square or round structural tube? | Selecting between square and round structural hollow sections depends on joining techniques, directional bending moments, aerodynamic exposures, flat panel attachment requirements, and overall assembly labor costs. |
Square structural tube manufacturing relies on a precise, multi-stage cold-forming process that transforms flat steel or aluminum coiled sheet into seamlessly welded or seamless geometric hollow sections with tight dimensional tolerances.
The manufacturing journey of square structural hollow sections begins with high-grade flat coil stock, such as hot-rolled structural steel coils or continuous extrusion billets in aluminum alloys. For steel tubing, coil stock is continuously unrolled, flattened, and precisely slitted to calculated widths matching the outer perimeter of the target square section. The flat metal strip passes through a series of progressive shaping rolls in a continuous cold roll-forming mill. These continuous rollers gradually bend the flat strip edges upward and inward, forming a uniform cylindrical tube shell. Precise edge alignment rolls then guide the seam into a continuous high-frequency induction (HFI) welding zone, where electrical resistance generates localized heat without requiring filler metal, fusing the seam into a monolithic bond under heavy squeeze rolls.
Following seam welding, the tubular shell undergoes flash removal to trim external and internal weld beads, preserving uniform wall dimensions and smooth aesthetic profiles. The continuous circular tube then enters a sizing and shaping mill equipped with opposing horizontal and vertical sizing rolls. These specialized die rolls apply uniform multi-directional pressure, reforming the circular profile into a crisp, accurate four-sided square geometry with consistent corner radii. For extruded aluminum profiles, the process differs at the primary forming stage, where pre-heated billet logs are forced through precision tungsten-carbide dies under immense hydraulic pressure to form continuous seamless hollow squares directly, ensuring exceptional material grain alignment and smooth surface finishes ideal for architectural treatment.
Finally, the continuous square profile passes through automated ultrasonic or eddy-current non-destructive inspection stations to verify seam integrity and internal flawlessness. The square tubing is then cut to standard commercial lengths using automated flying cold saws or high-speed rotary cutters. The continuous production line monitors critical dimensions such as outer cross-sectional dimensions, corner radius uniformity, edge straightness, and wall thickness distribution across every production lot.
Manufacturing Stage | Operational Mechanism | Key Quality Parameters Managed | Primary Tooling / Machinery |
Slitting and Decoiling | Unrolling continuous metal coils and slitting to strip width | Strip width tolerance, edge burr control, material surface inspection | Rotary gang slitters, precision decoiler assemblies |
Cold Roll Forming | Progressive die bending of flat strip into a continuous circular tube | Diameter consistency, edge alignment, cold work hardening rate | Multi-stage roller die stands, guiding roll sets |
High-Frequency Welding | Fusion of longitudinal seams using high-frequency electrical induction | Weld seam penetration, heat-affected zone size, flash geometry | HFI welder generators, continuous squeeze rolls, bead trimmers |
Sizing and Squaring | Re-shaping circular profile into four-sided square geometry using die sets | Wall squareness, outer flat width, corner radius, twist limits | Multi-pass squaring rolls, cold sizing dies, straightening turrets |
NDT and Cut-Off | Automated ultrasonic seam scanning and high-speed cold blade sawing | Weld soundness, cut length accuracy, burr-free end condition | High-frequency ultrasonic sensors, flying cold saw units |
Square structural tubes serve as core structural members across modern architectural frameworks, heavy industrial automation systems, modular solar support racks, commercial building construction, and heavy vehicle chassis construction.
In commercial building construction and industrial facility engineering, square structural tubing provides high-efficiency column, beam, and truss solutions. Structural engineers frequently specify heavy-wall square hollow sections as perimeter columns and interior load-bearing pillars because their symmetrical cross-sections deliver equal structural capacity along both primary axes (I_x = I_y). This bi-axial symmetry eliminates weak-axis buckling vulnerabilities common in traditional wide-flange I-beams, allowing architects to design slimmer, visually appealing structural grids without sacrificing overall axial compression capacity. Furthermore, flat side walls simplify the direct mounting of curtain wall brackets, insulated cladding panels, and structural glazing framework without requiring custom angled shims or secondary connecting brackets.
In renewable energy infrastructure, particularly ground-mounted utility solar arrays and single-axis solar trackers, high-strength square structural tubing serves as the central torque tube and support post foundation. Solar racking engineers heavily prefer our specialized Aluminum Square Tube solutions due to their lightweight characteristics, superior atmospheric corrosion resistance, and exceptional resistance to cyclic torsional wind forces. When dynamic wind loads create oscillatory forces across massive solar module strings, the high polar moment of inertia of square hollow profiles prevents twist deformation, protecting delicate photovoltaic cells and tracking drive gearboxes from mechanical fatigue.
In material handling, industrial equipment frames, and automotive chassis construction, square structural tubing offers ideal geometric mating surfaces for robotic welding, bolted bracketry, and modular frame additions. Industrial equipment builders construct machine bases, safety guarding structures, and overhead gantry systems using standardized square tubing. The internal hollow core provides convenient pathways for routing internal hydraulic lines, electrical wiring looms, and pneumatic lines, protecting critical control sub-systems from harsh shop-floor environments while maintaining clean structural aesthetics.
Application Sector | Typical Square Tube Profiles Used | Key Structural Function | Environmental & Mechanical Demands |
Commercial Building Construction | Large hollow sections (100mm to 300mm) | Axial columns, floor trusses, perimeter curtain wall frames | High dead/live loads, seismic shear resistance, fireproofing compatibility |
Solar Energy Infrastructure | Light to mid-wall square tubes (40mm to 100mm) | Central torque tubes, tracker support posts, panel rails | Dynamic wind loading, cyclic torsional stress, severe outdoor UV/corrosion |
Industrial Equipment Framing | Medium square tubes (50mm to 150mm) | Robotic cell bases, overhead gantry beams, conveyor support | High dynamic vibration, positional stiffness, easy flat bracket attachment |
Transportation & Trailers | Light-weight structural square tubes | Vehicle chassis frames, utility trailer rails, side wall ribs | Fatigue resistance, impact toughness, reduced tare weight for fuel efficiency |

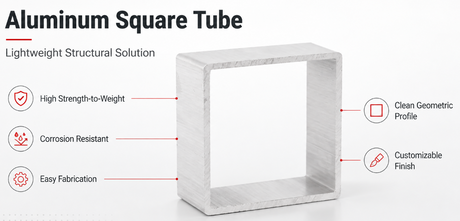

Modular Framing Systems | Precision extruded Aluminum Square Tube profiles | Cleanroom partitions, architectural extrusions, display framework | Precise dimensional tolerances, aesthetic anodized finish, light weight |
Maintenance and Inspection Tips: Regularly audit welded joint connections and structural anchor points for stress cracking or localized dynamic fatigue, especially in outdoor high-vibration applications; ensure all hollow tube end caps or open ends are properly sealed with water-tight plugs or equipped with lower drainage weep holes to prevent internal condensation accumulation, which can cause concealed internal galvanic or pitting corrosion over extended operational lifespans.
Square structural tubing exhibits superior mechanical resilience, geometric symmetry, balanced moment of inertia, exceptional strength-to-weight performance, and versatile surface finish characteristics.
The engineering superiority of square structural tubing stems directly from its geometric and material property profile. Unlike asymmetric profiles like channels, angles, or uneven flanges, the square hollow section distributes structural mass evenly away from the neutral axis around both principal axes. This geometric orientation maximizes both the area moment of inertia and the section modulus relative to total cross-sectional area, yielding high bending resistance per unit weight. When subjected to multi-directional bending moments or unexpected lateral loads, square structural tubing responds with uniform stiffness regardless of load direction, preventing sudden lateral-torsional buckling failures.
From a material perspective, square structural tubing is manufactured in a broad spectrum of structural metals, including low-carbon structural steel (e.g., ASTM A500 Grade B/C), weathering steel, stainless steel (304/316 grades), and high-strength extruded aluminum alloys (e.g., 6061-T6 and 6063-T6). European industrial clients consistently prefer high-grade extruded aluminum alloy profiles for structural applications where weight reduction, natural atmospheric corrosion resistance, and precision surface appearance are paramount. When comparing material performance metrics, structural designers often weigh raw tensile strength against overall structure dead-weight, as detailed in our engineering guide on Steel vs Aluminum Strength Weight Price Comparison.
In addition to static mechanical strengths, the surface properties and dimensional tolerances of square tubing play a decisive role in automated manufacturing environments. Cold-formed square tubing features sharp, clean corner profiles or specified radial corners that interface seamlessly with laser cutting head paths and automated welding jigs. Aluminum square hollow profiles benefit from surface treatments like clear anodizing, hard-coat anodizing, or architectural powder coating, creating protective oxide barriers that eliminate the need for periodic repainting or hot-dip galvanizing, even in marine or chemical processing environments.
Property Category | Specific Parameter | Standard Values / Characteristics (Steel vs. Aluminum) | Practical Structural Significance |
Mechanical Resilience | Yield Strength | Steel: 290–350 MPa; Aluminum 6061-T6: 240–276 MPa | Defines maximum elastic load limit before permanent structural deformation occurs |
Tensile Resistance | Ultimate Tensile Strength | Steel: 400–500 MPa; Aluminum 6061-T6: 290–310 MPa | Indicates ultimate load threshold before structural fracture or necking |
Structural Weight | Density | Steel: ~7.85 g/cm³; Aluminum: ~2.70 g/cm³ | Aluminum offers roughly 65% weight reduction for light-weight structural frames |
Elastic Deformation | Modulus of Elasticity | Steel: ~210 GPa; Aluminum: ~69 GPa | Governs structural deflection under flexural and axial compressive loading |
Torsional Capacity | Polar Moment of Inertia | High uniform closed-section values across both axes | Provides resistance against twisting deformation caused by off-center loads |
Geometric Accuracy | Wall Thickness Uniformity | ± 5% to ± 10% depending on manufacturing spec | Guarantees consistent structural section properties and uniform welding heat |
Why do our senior design engineers configure square profiles with specialized internal corner fillet radii? In high-vibration dynamic applications, micro-cracking often initiates at sharp inner corners under cyclic stress. By introducing precisely calculated interior transition radii during continuous roll-forming or extrusion die design, stress concentrations are minimized, extending dynamic fatigue life by up to 40%. European machinery builders frequently request high-precision wall tolerances to ensure seamless insertion of telescoping inner tubes, enabling adjustability in automated conveyor frames and linear movement systems.
Choosing between square and round structural tubing requires evaluating joining methods, multi-axis bending requirements, torsional forces, flat panel mounting needs, and overall fabrication efficiency.
The structural decision between square and round hollow sections revolves around mechanical force requirements and assembly aesthetics. Round structural tubing represents the optimal geometric form for pure axial compression columns, fluid conveyance, and multi-directional wind flow resistance. Because a circular section presents identical aerodynamic drag from any wind angle, round tubes are widely used in lattice towers, light poles, and exposed marine structures. Furthermore, round tubes offer maximum torsional resistance per unit mass, making them ideal for rotational drive shafts and structural torque transfer members.
However, square structural tubing holds significant advantages when structural projects involve extensive field assembly, flat wall cladding, dynamic framing, or complex multi-member welded junctions. Joining round tubing at non-90-degree angles requires multi-axis saddles, complex laser fish-mouth cope cuts, or custom saddle brackets, significantly increasing tube end preparation labor and welding setup time. Conversely, square tubing features straight, flat outer side faces that allow straight 90-degree saw cuts, direct flush fitting, and simple butt-welding or surface bolting. Structural steel erectors and assembly technicians can effortlessly clamp flat square faces together without specialized V-block fixtures, reducing layout labor by up to 35% on complex structural frames.
When installing exterior wall panels, solar racking brackets, linear motion guide rails, or structural floor decks, the flat planar surfaces of square structural tubing eliminate the need for secondary flat mounting plates. Fasteners, self-drilling screws, and structural blind rivets seat flush against square tube faces without slipping or creating angular distortion. For projects prioritizing lightweight structural frames and high atmospheric durability, choosing high-precision Aluminum Square Tube products delivers clean aesthetic joinery, rapid field installation, and reduced overall project shipping weight.
Comparison Factor | Square Structural Tubing | Round Structural Tubing | Engineering Selection Criteria |
Fabrication & Joining | Flat side faces enable straight cuts, flat plates, and simple miter joints | Requires fish-mouth coping or saddle cutting for angled joints | Square tube dramatically cuts layout time and welding prep cost |
Surface Attachment | Direct flush mounting for cladding panels, solar rails, and brackets | Requires curved saddles, wrap-around clamps, or adapter plates | Square tube provides continuous flat contact surfaces for hardware |
Torsional Resistance | High torsional stiffness; excellent closed-profile torque transfer | Maximum uniform torsional resistance for circular profile | Round tube is slightly superior in pure rotation; square is ideal for frames |
Bending Moment Efficiency | High section modulus along main orthogonal X and Y axes | Uniform section modulus in all radial directions | Square tube excels when bending forces align with vertical/horizontal axes |
Aerodynamic Profile | Higher drag coefficient on flat windward faces | Lowest drag coefficient; uniform wind flow resistance | Round tube is preferred for unshielded high-wind tower structures |
Material Handling | Stable stacking, easy bundle strapping, minimal storage space | Prone to rolling; requires specialized storage racks and blocking | Square tube reduces warehouse storage footprint and transit risk |
Square structural tubing stands as a premier material choice in modern industrial design, structural framework engineering, and heavy mechanical manufacturing. By combining equal bi-axial load resilience, high strength-to-weight ratios, clean geometric alignment, and superior fabrication efficiency, square hollow sections allow structural engineers to construct safer, more efficient, and visually compelling structures. Modern extrusion and cold roll-forming capabilities enable precise section manufacturing in both steel and lightweight aluminum alloys, providing technical specifiers with custom-tailored solutions for diverse operational environments.
When specifying square structural tubing for upcoming projects, engineering teams should evaluate environmental corrosion exposure, dynamic vs. static loading profiles, weight constraints, and secondary surface finishing costs. Integrating specialized extruded aluminum profiles provides long-term resistance to harsh outdoor conditions without requiring ongoing coating maintenance. For high-volume manufacturing lines or custom structural framework builds, partnering with an experienced extrusion specialist ensures optimal alloy selection, tight dimensional tolerances, and seamless structural integration from design phase through final site assembly.
