Surface Treatment Defects in Anodized Aluminum (And How to Avoid Them)

Anodizing defects typically arise from chemical imbalances, improper pre-treatment, temperature fluctuations, or sub-optimal electrical current distribution during processing. Surface treatment defects in anodized aluminum can be prevented entirely through rigorous bath chemistry management, meticulous pre-cleaning protocols, precise temperature regulation, and systematic post-sealing quality controls.

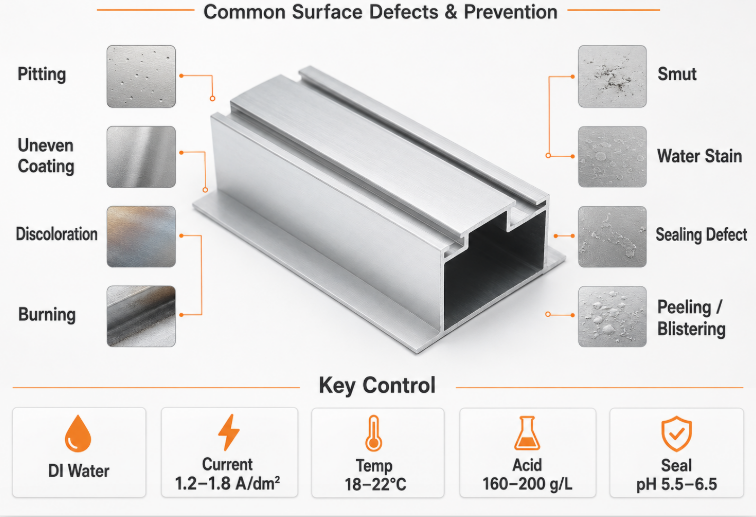

This comprehensive technical guide provides an exhaustive analysis of the primary surface treatment defects encountered during aluminum anodizing. By exploring the root causes, metallurgical impacts, and specific prevention strategies for each defect, engineering professionals and quality control teams can optimize production yields and achieve flawless, high-performance surface finishes.

1. Pitting

Pitting manifests as localized, microscopic cavities or craters on the aluminum surface that breach the uniformity of the protective oxide layer.

The occurrence of pitting is a critical threat to the integrity of structural components. These small depressions often originate during the pre-treatment phase, particularly during acid cleaning or etching, if the chemical solutions contain excessive chloride ions or if the metal is left immersed for an extended duration. When chloride contaminants cluster on the aluminum surface, they destabilize the natural passive film, initiating localized galvanic cells that dissolve the base metal before the protective anodic layer can even form.

During the actual anodizing phase, pitting can propagate if the sulfuric acid electrolyte contains high levels of dissolved copper, iron, or chloride impurities. These contaminants alter the local current density, causing preferential dissolution of the aluminum matrix instead of uniform oxide growth. The resulting micro-voids act as stress concentration points and entry gateways for moisture, which severely reduces the long-term corrosion resistance and fatigue life of the material in field applications.

To eliminate pitting, processing facilities must implement strict water purification protocols, utilizing deionized water for all chemical baths and rinsing stages to keep chloride concentrations well below critical thresholds. Regular bath analysis via titration and atomic absorption spectroscopy is necessary to monitor and purge heavy metal contaminants. Additionally, optimizing the immersion time during chemical etching prevents over-exposure, ensuring a smooth and unblemished substrate profile ready for uniform oxide development.

2. Uneven Coating Thickness

Uneven coating thickness refers to dimensional variations in the anodic oxide layer across different areas of a single component or across a batch of processed parts.

Achieving dimensional uniformity requires precise control over electrical and physical variables within the anodizing cell. Uneven film distribution typically stems from poor current distribution, a phenomenon heavily influenced by improper racking configurations or sub-optimal placement of cathodes relative to the aluminum parts. Areas of the component positioned closest to the cathodes experience higher current densities, leading to rapid oxide growth, whereas recessed zones or internal geometries suffer from low current density, resulting in a thin, inadequate protective layer.

Inadequate bath agitation further compounds this structural defect. Without uniform solution movement, localized temperature spikes and localized acid depletion occur within the electrolyte surrounding complex parts. Because the growth rate of the oxide film is highly sensitive to temperature and acid concentration, these localized micro-climates cause significant thickness discrepancies. Such variations compromise the geometric tolerances required for precision-engineered components, leading to premature wear and localized finish breakdown.

To achieve precise coating uniformity, manufacturers utilize advanced racking methods that include auxiliary anodes and custom-shaped conforms designed to direct electrical current evenly into recessed geometries. Implementing high-efficiency air sparging systems or mechanical circulation pumps guarantees continuous movement of the electrolyte, eliminating thermal stratification and chemical concentration gradients. This strict control over current density and bath temperature ensures a consistent oxide layer thickness, which is a critical specification fulfilled by high-quality components such as the Anodized F-Type Aluminum Groove Profile with Protective Surface Coating, designed specifically for demanding industrial alignments.

3. Discoloration & Uneven Coloring

Discoloration and uneven coloring involve unwanted visual shade variations, streaks, or patchy tonal distributions across the anodized aluminum surface.

Aesthetic uniformity is a primary requirement for architectural and consumer-facing metal products. Visual variations frequently trace back to metallurgical inconsistencies within the aluminum alloy itself. Elements such as silicon, iron, and copper tend to segregate during the extrusion or casting process, creating localized zones of varying chemical composition. When these zones undergo anodizing, they react differently to the chemical etch and the electrolytic oxidation, resulting in visible structural patterns or dark bands that ruin the cosmetic finish.

When organic or inorganic dyes are applied to achieve specific colors, uneven coloring often points to issues within the dye bath mechanics. If the porosity of the anodic film varies due to temperature fluctuations during the anodizing stage, the absorption rate of the dye molecules will change across the surface of the metal. Furthermore, dye bath contamination by oil residues, dragged-in sulfate ions, or heavy metals disrupts the chemical bonding between the dye molecules and the porous aluminum oxide structure, causing streaks and blotches.

Preventing these aesthetic defects requires utilizing high-grade, single-heat aluminum billets with uniform grain structures and minimal alloy segregation. Tight control over the pre-anodizing cleaning steps ensures the removal of surface oils and smut that could block dye absorption. Maintaining a dedicated filtration loop for the dye tanks, alongside continuous pH and temperature monitoring, ensures that the dye molecules penetrate the uniform pores evenly, guaranteeing a repeatable and flawless color finish across large production runs.

4. Burning (Over-Anodizing)

Burning manifests as chalky, dark, powdery, or physically disintegrated areas on the aluminum surface caused by excessive localized current density or thermal runaway during the anodizing process.

Burning represents a severe structural failure of the anodic oxide layer. This defect occurs when the electrical current concentrated on specific areas of the component—such as sharp corners, thin edges, or points closest to the cathode—exceeds the safe operational limits of the alloy. The excessive current generates massive localized Joule heating at the metal-electrolyte interface. If this heat cannot dissipate rapidly into the surrounding solution, it accelerates the chemical dissolution of the forming aluminum oxide layer, turning it into a soft, powdery mass.

The risks of burning escalate significantly when bath agitation is insufficient or when the electrolyte temperature is allowed to drift above the specified operational envelope. As the localized temperature rises, the electrical resistance of the electrolyte drops, drawing even more current to that specific hot spot. This self-reinforcing cycle leads to thermal runaway, destroying the structural integrity of the oxide layer and causing permanent damage to the underlying aluminum substrate.

To prevent burning, operators must incorporate specific geometric considerations into the part design and racking setups, such as radiusing sharp corners to distribute electrical current more smoothly. Implementing a ramped voltage control strategy—where the electrical potential is increased gradually rather than applied instantly—allows the initial barrier layer to form uniformly. Utilizing robust chilling systems alongside high-volume fluid circulation ensures that the heat generated during electro-chemical oxidation is swept away immediately, maintaining a stable temperature at the reaction face.

5. Smut Formation

Smut formation is the accumulation of dark, insoluble metallic residues or powdery films on the aluminum surface during the alkaline etching or acid cleaning phases.

Smut is an unavoidable byproduct of chemical surface preparation, composed of alloying elements that do not dissolve in the primary alkaline etching solutions. When aluminum alloys containing copper, manganese, iron, or silicon are subjected to sodium hydroxide etches, the aluminum matrix dissolves uniformly, leaving behind these insoluble metallic elements on the surface. If this dark residue is not completely eradicated prior to the electro-chemical oxidation stage, it becomes permanently trapped within the growing anodic oxide layer, causing severe discoloration, poor film adhesion, and low corrosion resistance.

The composition of the smut depends entirely on the specific alloy series being processed. For instance, high-silicon alloys produce a tenacious gray-to-black smut that is highly resistant to standard chemical treatments, while copper-bearing alloys generate a dark, velvety residue. If the deoxidizing bath—the acid step designed to strip away this residue—becomes saturated with dissolved metals or suffers from depleted acid concentrations, it will fail to clear the surface, leaving a contaminated substrate that interferes with subsequent processing steps.

Eliminating smut requires a finely tuned deoxidizing and desmutting sequence engineered to match the specific metallurgy of the alloy batch. Nitric acid-based desmutting baths are highly effective for general copper and iron residues, whereas specialized formulations containing hydrofluoric acid derivatives are required to break down and dissolve silicon smut on cast alloys. Continuous monitoring of the desmutting bath strength, coupled with robust multi-stage rinsing, ensures a pristine, chemically active aluminum surface that readily accepts a high-performance finish, such as that found on the specialized Anodized F-Type Aluminum Groove Profile with Protective Surface Coating, ensuring maximum adhesion and long-term durability.

6. Water Staining

Water staining appears as cloudy, white, circular marks or irregular cosmetic blemishes left on the anodized finish due to the evaporation of mineral-laden rinse water.

Water staining is primarily an aesthetic defect, but it can evolve into a corrosion issue if left unaddressed. This defect occurs when components transitioning between processing tanks are allowed to dry with residual water droplets clinging to their surfaces. If the rinse water contains high levels of total dissolved solids, such as calcium, magnesium, or sulfate ions, these minerals precipitate out as the water evaporates, leaving behind a hard crystalline residue that bonds tightly to the unsealed, porous oxide structure.

The vulnerability to water staining peaks immediately after anodizing and dyeing, when the oxide pores remain open and highly receptive to chemical interactions. If rinse waters are contaminated or poorly circulated, stagnant pools of water accumulate in recessed channels or flat areas of the profiles. As these pools dry under ambient shop temperatures, they can chemically react with the fresh oxide layer, forming permanent cloudy blemishes that cannot be wiped away or removed through subsequent standard cleaning processes.

Preventing water staining requires a rigorous rinsing hierarchy centered around high-purity water management. Implementing a counter-current cascade rinsing system ensures that the final rinse stage always utilizes fresh deionized water with ultra-low electrical conductivity. The use of wetting agents or surfactants in the final rinse reduces the surface tension of the water, promoting rapid, uniform drainage from the metal profiles. Incorporating forced air-drying knives immediately following the final rinse removes all physical droplets before evaporation can occur, maintaining a spotless, professional finish.

7. Sealing Defects

Sealing defects occur when the final hydration or chemical plugging of the porous anodic oxide layer fails, leaving the film open to staining, rapid corrosion, and mechanical breakdown.

Sealing is the critical concluding phase of the anodizing workflow, responsible for transforming the delicate, porous aluminum oxide into a solid, impermeable barrier. In hot water sealing, this is achieved by hydrating the aluminum oxide into boehmite, a crystalline structure that swells and physically plugs the pores. If the sealing bath temperature drops below 95 degrees Celsius, or if the pH drifts outside the narrow optimum range of 5.5 to 6.5, the hydration reaction slows dramatically, resulting in an incomplete seal that leaves the material vulnerable to chemical attack.

Contamination of the sealing bath is another primary trigger for sealing failure. The presence of trace amounts of phosphates, silicates, or sulfates—often dragged into the tank from preceding rinse stages—acts as a chemical poison, blocking the hydration reaction and preventing pore closure. This leads to a phenomenon known as "chalking," where an unreacted, powdery white layer forms on the surface. This friable layer easily rubs off under physical contact, ruining the appearance and significantly reducing the weatherability of the profile.

To ensure sealing integrity, processing plants must execute systematic quality checks, including acid dissolution tests and admittance measurements, to verify complete pore closure. Utilizing chemical anti-smutting additives in hot water seals prevents the formation of superficial powdery residues on architectural components. For advanced architectural profiles requiring long-term environmental resistance, selecting components processed under strict quality standards—such as the Anodized F-Type Aluminum Groove Profile with Protective Surface Coating—guarantees that the sealing phase was performed under optimal thermal and chemical conditions, providing a robust shield against atmospheric degradation.

8. Film Peeling/Blistering

Film peeling or blistering represents a catastrophic failure of adhesion where the anodic oxide layer separates physically from the underlying aluminum substrate.

Unlike painted or plated finishes, an anodized layer grows directly from the base aluminum, forming an atomic bond that typically prevents peeling. Therefore, structural separation indicates severe underlying problems, such as profound surface contamination prior to the electrochemical reaction. If heavy drawing oils, cutting fluids, or dense oxide crusts are not entirely removed during the initial degreasing phase, they act as physical barriers that block the electrolyte from contacting the raw aluminum, leading to localized non-bonding zones.

Blistering can also occur due to severe thermal stress experienced after the anodizing process. The linear thermal expansion coefficient of aluminum metal is roughly twice that of its protective aluminum oxide coating. When a finished component is subjected to rapid thermal cycling or exposed to temperatures exceeding 80 degrees Celsius without a gradual ramp, the structural tension at the interface becomes unsustainable, causing the rigid oxide layer to crack, buckle, and lift away from the flexible metal base.

Preventing peeling and blistering requires a multi-layered approach that combines meticulous chemical cleaning with strict post-processing thermal management. Implementing regular etching steps ensures that the top layer of the base metal is completely dissolved, removing hidden subsurface contaminants and microscopic structural flaws. When post-processing steps require heat, such as curing structural adhesives or drying topcoats, operators must manage the heating and cooling cycles with gradual thermal ramps to prevent the differential expansion stresses that destroy the interfacial bond.

9. Key Prevention Principles

Systematic elimination of surface treatment defects requires an integrated quality framework focused on automated chemistry controls, rigorous maintenance, and precise mechanical handling.

Stabilizing the chemistry of the process lines is the foundational step in avoiding anodizing defects. Modern facilities utilize automated dosing systems tied to continuous inline sensors that monitor acid concentration, aluminum ion levels, pH, and temperature across every tank in real time. Maintaining the aluminum ion concentration in the sulfuric acid bath between 5 and 15 grams per liter is crucial; if it drops too low, the solution becomes excessively aggressive, while exceeding the upper limit increases bath resistance and elevates the risk of burning and uneven thickness.

Establishing an unyielding racking and contact maintenance protocol is equally vital for high-volume production. Racking clips must be crafted from high-grade aluminum or titanium to provide constant, high-pressure mechanical contact that can withstand the electrical currents without arcing. Titanium racks offer exceptional longevity because they do not anodize or dissolve in the acid baths, ensuring consistent current density distribution piece after piece. Regular stripping of aluminum racks between cycles eliminates residual oxide layers that would otherwise introduce electrical resistance and cause localized film variations.

Finally, managing the physical environment and rinsing sequences safeguards components from external contamination. Utilizing automated crane transport systems ensures repeatable immersion times and precise drip-off intervals, minimizing chemical drag-out between sequential process tanks. This strict process control ensures that every treated component, including specialized structural shapes like the Anodized F-Type Aluminum Groove Profile with Protective Surface Coating, leaves the production line with optimal mechanical properties, consistent coloration, and uncompromised protection against environmental wear.

In conclusion, maintaining the quality of anodized finishes requires deep attention to chemical, electrical, and thermal variables. By understanding the root causes of common defects—ranging from pitting caused by chlorides to blistering triggered by thermal stress—manufacturers can implement the robust preventive controls detailed in this guide. Adhering to these industrial principles guarantees that the resulting protective oxide layer fulfills both structural performance expectations and cosmetic requirements over an extended service life.
