How Aluminum Extrusion Dies Are Designed and Manufactured

Aluminum extrusion die design and manufacturing is a highly specialized engineering process where high grade tool steel is precision machined via CAD modeling, CNC milling, and Electrical Discharge Machining to create specific orifices that control the flow, velocity, and cooling of heated aluminum alloy under immense hydraulic pressure.

To fully grasp how these tools impact industrial production, we must examine the entire operational ecosystem of the extrusion plant. From the initial thermodynamic calculations of metal flow to the post extrusion finishing techniques, every stage requires rigorous quality control. The following sections provide an extensive, data driven analysis of the machinery, metallurgy, and processing variables that define modern industrial extrusion methodologies.

How the aluminum extrusion process works

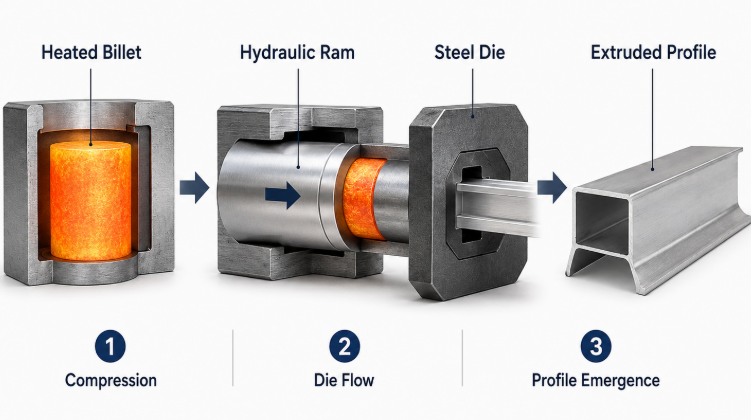

The aluminum extrusion process is a mechanical deformation method where a preheated aluminum alloy billet is forced under thousands of tons of hydraulic pressure through a precision engineered steel die to produce a continuous length of a specific cross sectional profile.

The fundamental mechanics of aluminum extrusion can be compared to squeezing material through a shaping orifice, though executed under extreme industrial parameters. A heavy hydraulic ram pushes a heated, softened aluminum log against a stationary die assembly inside a massive press container. The alloy undergoes plastic deformation, conforming exactly to the geometry machined into the die face. The resulting continuous profile emerges onto a runout table, maintaining uniform dimensions across its entire length.

This process allows industrial designers to place metal mass precisely where it is structurally required, eliminating unnecessary material weight. For instance, solid structural members can be engineered with internal reinforcements, hollow chambers, or specialized mounting tracks right at the point of extrusion. This integration reduces the need for subsequent machining, welding, or mechanical fastening, making it an incredibly efficient manufacturing method for complex commercial components.

To maximize structural performance in industrial applications, engineers often deploy a highly customized Custom Structural Hollow Aluminum Extrusion Profile. These specialized profiles leverage internal hollow configurations to achieve high strength to weight ratios, ensuring that cross sectional geometry handles torsional and axial loads effectively in demanding mechanical assemblies.

Starting with billet alloy and die design

Designing an extrusion die requires advanced computer aided engineering to calculate metal flow friction, thermal contraction, and stress distribution, followed by selecting premium hot work tool steels like H13 to withstand extreme mechanical loads.

The creation of an extrusion die begins with a comprehensive review of the final profile blueprint. Designers use specialized Computer Aided Design software to map out the exact geometry of the die opening. Crucially, the die orifice cannot be a simple mirror image of the final part. Aluminum contracts as it cools from its extrusion temperature down to room temperature, meaning the die cavities must be precisely oversized to accommodate specific thermal contraction coefficients.

Furthermore, aluminum does not flow uniformly through a die. Metal flowing through the wider sections of an opening encounters less resistance and moves faster than metal forced through narrow walls or sharp corners. To counteract this variation, die designers manipulate the bearing length, which is the internal surface of the die that contacts the moving aluminum. By increasing the bearing length in wider sections to generate more friction, and shortening it in restricted zones, engineers balance the metal flow velocity across the entire cross section, preventing profile twisting or tearing.

The choice of tool steel is another critical factor. Most industrial dies are manufactured from premium H13 hot work tool steel. This material undergoes meticulous heat treatment protocols to achieve a rockwell hardness capable of resisting cyclic thermal shock and extreme pressures. The manufacturing workflow utilizes high speed CNC milling for rough shaping, followed by wire and ram Electrical Discharge Machining to cut the precise bearing surfaces and intricate geometry with micron level tolerances.

Critical Considerations in Tooling Engineering

1. Bearing Balance Optimization: Adjusting internal land lengths to synchronize the exit speed of different profile wall segments.

2. Deflection Control Strategy: Designing support tooling like backers and bolsters to prevent the main die from bending under press pressure.

3. Thermal Stress Minimization: Radiusing sharp internal corners within the die cavity to prevent localized heat buildup and structural cracking.

Inside the aluminum extrusion process step by step

The step by step sequence of aluminum extrusion involves billet heating, scale shearing, hydraulic compression, continuous die flow, and controlled runout handling under strict thermal monitoring.

The manufacturing cycle begins with long logs of raw aluminum alloy, which are sliced into smaller units called billets. These billets are loaded into a gas or induction furnace and heated to temperatures ranging between 400 and 500 degrees Celsius. Heating the metal to this specific range softens the aluminum sufficiently to allow plastic deformation while remaining well below its melting point, preserving its crystalline structural potential.

Once heated, the billet is transferred to the press container. Before extrusion begins, a diagnostic shear removes the oxidized outer skin of the billet to ensure no surface contaminants enter the clean metal flow. The hydraulic ram then advances a dummy block against the billet, compressing it within the container until it expands to fill the entire chamber. As pressure mounts to breakthrough levels, the softened aluminum has nowhere to go but forward, flowing through the die assembly to emerge as a fully formed profile.

As the profile leaves the die face, it is guided along a runout table by a mechanical puller system. This puller maintains a slight, uniform tension on the emerging metal to keep it straight and prevent warping. Specialized infrared sensors continuously track the exit temperature of the profile, providing data that allows operators to adjust press speed in real time, ensuring uniform structural properties throughout the run.

Structural Flow Progression Table

Metal extrusion variables that control quality

Achieving premium quality in extruded profiles requires precise management of interlocking variables, including billet temperature, container temperature, extrusion speed, and profile complexity metrics.

The stability of an aluminum extrusion run relies on maintaining a delicate balance of thermal and mechanical factors, often referred to as the extrusion window. The primary variable is the temperature of the incoming billet. If the billet is too cold, the press requires excessive pressure to force the metal through the die, accelerating tool wear or causing structural failure. Conversely, if the billet is too hot, localized friction within the die can push temperatures past the alloy alloy melting point, causing surface defects like tearing or pitting.

Extrusion speed is a second critical variable that is directly linked to profile geometry. Simple geometric shapes with uniform walls can be extruded at much higher speeds than intricate profiles with thin walls or deep channels. As the aluminum passes through the die bearings, frictional work generates substantial internal heat. If the extrusion speed is too fast, this frictional heat builds up quickly, degrading the surface finish and compromising structural dimensional tolerances.

To manage these variables, modern extrusion lines utilize computerized control systems that continuously track factors like ram pressure, container temperature, and exit speed. By applying data from these sensors, operators can optimize production speeds while keeping within strict dimensional tolerances. For example, high performance industrial operations often use a specialized Aluminum Extrusion Profile that is specifically optimized for automated manufacturing lines, ensuring consistent mechanical properties across massive production volumes.

Key Operational Control Variables

1. Billet Thermal Profile: Managing a thermal gradient from front to back to maintain uniform exit temperatures during the press cycle.

2. Extrusion Speed Optimization: Calibrating ram advancement speeds to prevent surface friction defects while maximizing hourly volume.

3. Tooling Preheat Control: Ensuring the die assembly is heated to press temperature before installation to avoid thermal shock.

Types of aluminum extrusion and profile tradeoffs

Industrial aluminum extrusion is categorized into direct and indirect methods, each presenting distinct advantages regarding mechanical friction, surface quality, and tooling complexity.

The most widely utilized methodology is direct extrusion, where the die remains stationary at one end of the container while the hydraulic ram pushes the heated billet toward it. This setup creates significant friction as the billet slides along the entire length of the container walls, requiring higher total press power. Despite this friction, direct extrusion remains popular because the tooling layout is highly versatile, allowing for the production of extremely complex shapes and multi hole configurations.

In contrast, indirect extrusion keeps the billet stationary within the container while the die assembly, mounted on a hollow ram, moves against it. Because there is no relative movement between the billet and the container walls, frictional forces are reduced by up to 30 percent. This reduction in friction allows for faster extrusion speeds, lower process temperatures, and more uniform crystal structures along the length of the profile. However, indirect extrusion is limited by the size of the hollow ram, making it difficult to produce exceptionally large or wide cross sections.

Profile design also requires balancing tradeoffs between solid and hollow cross sections. Solid profiles use simpler, single piece dies that face lower mechanical stress and cost less to build. Hollow profiles require more intricate, multi piece tooling assemblies, such as porthole or bridge dies. These specialized dies split the aluminum stream into separate flows before welding them back together around an internal mandrel under intense heat and pressure, adding complexity but allowing for advanced internal geometries.

Comparison of Solid and Hollow Tooling Configurations

What happens after aluminum leaves the die

After emerging from the die face, the hot aluminum profile undergoes immediate controlled quenching, mechanical stretching to establish straightness, precision cutting, and artificial aging to reach its full structural hardness.

The moment the aluminum profile exits the die orifice, it is at its softest metallurgical state. To lock in its structural properties and prepare it for hardening, the profile must be quickly cooled, a process known as quenching. Depending on the specific alloy composition and mechanical requirements, quenching is performed using high velocity air manifolds, water mists, or full water immersion baths. The cooling rate must be fast enough to retain alloying elements in a solid solution, but carefully controlled to avoid warping or distortion in asymmetrical profiles.

Once cooled to room temperature, the long lengths of profile are moved to a cooling bed and gripped at both ends by a hydraulic stretching machine. Extrusion introduces minor longitudinal twists and internal stresses; the stretcher pulls the profile by a predetermined percentage, typically 1 to 3 percent, to straighten the piece and relieve internal stresses. This stretching aligns the grain structure and ensures excellent dimensional straightness across the entire length.

After stretching, the long profiles are transferred to saw tables where precision carbide tipped blades cut them into specified commercial lengths. These cut profiles are then placed into large aging ovens for thermal treatment. This artificial aging process involves holding the profiles at temperatures around 170 to 200 degrees Celsius for several hours, allowing metallurgical precipitates to form uniformly within the metal, which raises the material to its final structural hardness temper, such as T5 or T6.

Post Press Processing Workflow

1. Controlled Quench Phase: Rapidly lowering temperatures with air or water to freeze the internal metallurgical structure.

2. Mechanical Stretch Phase: Applying precise axial tension to remove structural twists and establish linear alignment.

3. Thermal Aging Phase: Heating profiles within an oven to precipitate strengthening phases and reach target hardness tempers.

Alloys and profile geometry in aluminum extrusion profiles

Selecting the correct aluminum alloy and optimizing geometric features like wall thickness ratios and corner radii are foundational steps to ensuring successful extrusion production.

The vast majority of structural and architectural extrusions use the 6000 series aluminum alloy family, primarily characterized by magnesium and silicon additions. Alloys like 6061 and 6063 provide an excellent balance of extrudability, corrosion resistance, surface finish quality, and mechanical strength. 6063 is frequently selected for architectural frames and complex designs due to its smooth surface finish, while 6061 is preferred for structural components that require higher load bearing capacities.

Geometric design rules play a massive role in determining whether a profile can be successfully extruded. One of the most critical design metrics is the wall thickness ratio. Designing a profile with adjacent walls of vastly different thicknesses can cause major production issues, as thin sections cool and fill differently than thick sections, leading to distortion and dimensional defects. Ideally, wall thicknesses should remain as uniform as possible across the entire cross section.

Incorporating generous internal and external corner radii is another key design principle. Sharp, 90 degree corners create severe stress concentrations within the steel extrusion die and restrict smooth aluminum flow, leading to localized tearing and accelerated tool wear. By adding radiused transitions to corners, engineers improve metal flow velocity, minimize structural stress, and extend die service life. For projects requiring complex cross sections, selecting a high quality Industrial Structural Aluminum Extrusion Profile ensures that these geometric principles are properly integrated, delivering excellent performance across demanding industrial environments.

Profile Geometric Design Parameters

1. Wall Thickness Consistency: Aiming for a uniform thickness across the profile to promote balanced metal flow and even cooling.

2. Radius Integration: Replacing sharp internal corners with smooth curves to lower die stress and improve surface finish.

3. Symmetry Optimization: Designing balanced shapes across the central axes to prevent warping during post quench cooling.

Aluminum extrusion fabrication after the press

Secondary fabrication processes, including precise CNC machining, automated punch pressing, and advanced surface finishing treatments, transform raw extruded profiles into fully functional industrial components.

While the extrusion press delivers precise, continuous profiles, many applications require additional fabrication work to create finished, assembly ready components. Extrusion fabrication covers a wide range of secondary operations, such as precision cutting, multi axis CNC milling, drilling, tapping, and punching. Because aluminum is highly machinable, fabricators can rapidly add complex hole patterns, interlocking slots, and countersinks to extruded lengths with high accuracy.

Surface finishing is another vital part of post extrusion processing. Anodizing is an electrochemical process that thickens the natural oxide layer on the aluminum surface, significantly improving corrosion resistance and surface hardness while offering options for integral color dyeing. Powder coating provides a thick, protective layer available in a wide array of colors and gloss levels, making it ideal for outdoor structural and architectural applications.

For manufacturing complex assemblies, individual extruded components can be joined using advanced techniques like Friction Stir Welding, mechanical fastners, or high strength structural adhesives. By combining custom profile geometries with precision secondary machining and protective surface coatings, industrial operations can streamline their supply chains, receiving ready to install components that reduce assembly time and lower total production costs.

Overview of Secondary Fabrication Operations

In conclusion, the successful production of high performance aluminum components relies on a deep integration of die design, material science, and process control. From the initial CAD drawings and tool steel selection to the balancing of metal flow through the die bearings and post press heat treatments, every step must be precisely managed. By understanding the complexities of the extrusion window and partnering with experienced tool makers, industrial buyers can unlock the full potential of a Structural Aluminum Extrusion Profile, lowering component weight, eliminating downstream assembly steps, and achieving exceptional performance in demanding applications.
