Heat Sink Skiving vs Extrusion: Performance & Cost Analysis

The core difference between skived and extruded thermal components lies in their manufacturing mechanics and structural limits: extrusion forces heated metal through a die to create fixed geometric profiles, whereas skiving uses a precise cutting tool to slice and lift fins from a solid metal block. Consequently, skiving achieves significantly higher fin densities, thinner fin geometries, and zero thermal interface resistance, making it superior for high-density power dissipation, while extrusion remains the most cost-effective and structurally robust solution for high-volume, standard-performance applications.

Navigating the granular technicalities of these two methodologies requires a deep dive into their manufacturing mechanics, thermal performance characteristics, and total cost of ownership structures. This comprehensive analysis will systematically compare skiving and extrusion across mechanical boundaries, airflow thermodynamics, material behaviors, and comprehensive cost models. By analyzing these critical dimensions, procurement professionals and engineering teams can make data-driven decisions that align perfectly with both their technical performance specifications and long-term project budgets.

Content Summary Directory

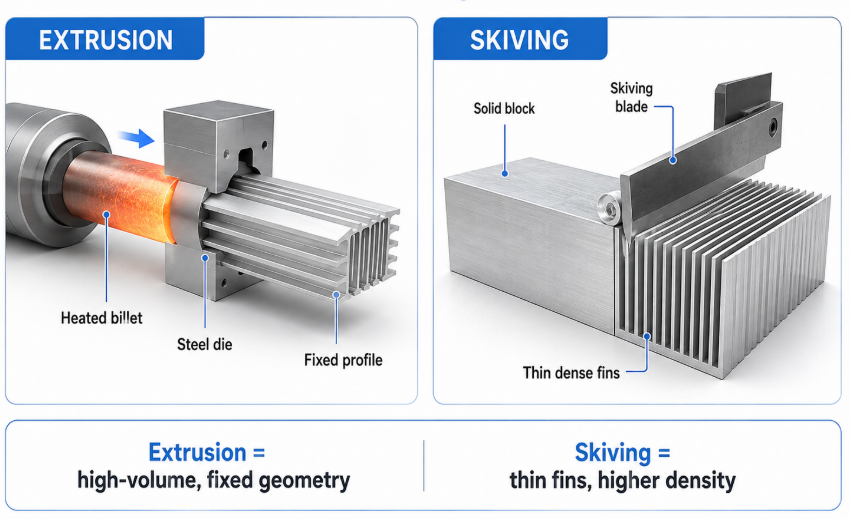

1. The Core Difference in Manufacturing Mechanics

Manufacturing mechanics define the geometric boundaries and structural integrity of a heat sink, where extrusion relies on high-pressure material deformation through a shaped die and skiving utilizes a micro-controlled slicing blade to shave continuous fins from a solid base. To fully comprehend the performance differences between these two thermal solutions, one must first look at how they are physically fabricated. The mechanical forces applied during production do not just dictate the final physical shape; they fundamentally alter the internal grain structure of the metal, the maximum achievable aspect ratios, and the presence or absence of thermal bottlenecks between the fins and the base plate.

1.1 The Extrusion Process

The extrusion process is a highly automated, high-volume manufacturing method where a solid metal billet—almost exclusively aluminum alloys such as 6063 or 6061—is heated to a plasticized state, typically around 400 to 500 degrees Celsius. Once the material reaches the correct temperature, a massive hydraulic ram forces the softened metal through a hardened steel die under immense pressure. The die contains the exact negative cross-section of the desired profile, allowing the metal to emerge as a continuous, elongated linear shape with uniform cross-sectional features.

Once the profile exits the die, it is cooled via air or water quenches, stretched to ensure straightness, and then cut to specified lengths. This process is highly efficient for producing standard geometric shapes, but it is strictly limited by the mechanical strengths of the steel die itself. Because the thin tongues of steel forming the gaps between the fins must withstand hundreds of tons of pressure from the flowing plasticized aluminum, they are prone to snapping if they are made too tall or too thin. This inherent mechanical vulnerability imposes strict manufacturing limits on the fin thickness, spacing, and maximum aspect ratio achievable through standard extrusion.

1.2 The Skiving Process

The skiving process, by contrast, is a precise machining technique that operates entirely at room temperature using a solid block of raw material, which can be either aluminum or pure copper. A high-power, mathematically controlled shaving knife moves horizontally across the top surface of the metal billet. The blade bites into the material at a precise depth and distance, shaving a thin layer of metal without completely detaching it from the main block. The machine then bends this shaved slice vertically, transforming it into an upright, functional cooling fin.

Because each fin is sliced and formed sequentially from the exact same single block of raw material, there is absolutely no joint, weld, or interface between the individual fins and the base plate. The base and the fins form an uncompromised, continuous piece of metal. Furthermore, because the shaving tool is supported dynamically during the cutting stroke and does not experience the isotropic destructive pressures found in extrusion dies, it can create incredibly thin fins spaced extremely close together. This allows skiving to completely bypass the structural and geometric restrictions that limit traditional extrusion methods.

2. Performance Showdown: How Do They Compare?

Thermal performance is determined by total available surface area, volumetric airflow properties, and material purity, with skived designs offering up to double the cooling efficiency of extruded configurations in high-density, forced-air environments.

When evaluating a heat sink for demanding industrial, computing, or power-generation systems, thermal resistance and power dissipation capacity are the ultimate metrics of success. The physical limitations imposed by the manufacturing process directly dictate how effectively a component can transfer calories away from a semiconductor junction and pass them into the surrounding ambient air stream.

2.1 Fin Density and Surface Area

In any convection-based cooling application, the total surface area available for thermal dissipation is the primary driver of overall cooling performance. Extrusion processes are fundamentally constrained by a maximum fin aspect ratio—the ratio of fin height to the gap width between fins—which typically tops out at around 4:1 to 10:1 for standard commercial production. Attempting to push past these parameters risks catastrophic die failure. This limitation means extruded profiles must feature thicker fins and wider air channels, directly restricting the maximum surface area that can be packed into a fixed volumetric envelope.

Conversely, the sequential slicing motion of the skiving process allows for aspect ratios reaching as high as 25:1 or even 50:1. Skiving can reliably produce fins that are as thin as 0.2 millimeters and space them with equal micro-gaps. This massive geometric advantage allows engineering teams to pack nearly double or triple the total convective surface area into the exact same physical footprint. When integrated into space-constrained enclosures where volumetric dimensions are strictly capped, a skived configuration delivers exponentially higher heat dissipation performance compared to its extruded counterpart.

2.2 Thermal Conductivity and Material Limits

Material choice plays an equally vital role in thermal conductivity, and here the mechanical differences between the two processes become even more pronounced. The extrusion process is largely confined to specific aluminum alloys, as pure copper requires excessively high melting points and extrusion pressures that quickly destroy standard manufacturing dies. While aluminum is lightweight and highly cost-effective, its thermal conductivity sits around 200 W/m·K. This presents a clear performance ceiling when managing extreme localized heat fluxes.

Skiving completely eliminates these material boundaries because it is a cold-machining process. It can be performed with equal precision on both high-grade aluminum blocks and solid, pure copper billets, which possess a thermal conductivity rating of approximately 400 W/m·K—nearly double that of aluminum. Furthermore, because a skived component is carved from a single monolithic block, it features perfect internal grain alignment and zero interface resistance between the fin and the base. In contrast, if an extruded design requires a copper base to handle high heat fluxes, it must utilize a bonded or epoxied joint, introducing a permanent thermal barrier that hinders overall efficiency. For high-performance demands, utilizing an advanced high-efficiency aluminum heat sink or a pure copper skived solution ensures uncompromised thermal pathways.

2.3 Power Dissipation Capacity

The ultimate power dissipation capacity of a thermal assembly is realized when it is paired with actual system airflow. Because extruded profiles feature wide fin channels, they offer very low static pressure drop, making them ideal for natural convection setups or applications utilizing low-cost, low-pressure cooling fans. However, when the thermal load rises into the hundreds or thousands of watts, natural convection fails, and forced-air environments become mandatory.

In high-power, forced-air scenarios, the high fin density of a skived design shines. While it does create a higher static pressure drop due to the tightly packed fin structure, when it is matched with a high-pressure industrial fan, the sheer volume of contact surface area allows it to dissipate far more thermal energy per cubic centimeter. Skived configurations eliminate local hotspots far more effectively than extruded profiles, making them the preferred choice for high-density IGBT modules, server CPUs, and large-scale power inverters where thermal runaway must be prevented at all costs.

3. Manufacturing Cost Structure: Tooling vs. Unit Price

The economic viability of a manufacturing process depends heavily on production volume, where extrusion requires significant upfront tooling investments but delivers minimal per-unit costs at high volumes, while skiving features negligible initial setup expenses but maintains a higher, steadier per-unit machining cost.

Choosing between these two thermal technologies is never a purely engineering-driven decision; it requires a detailed financial analysis of the total cost of ownership. The upfront expenditures, programming times, material utilization rates, and final production volumes all play integrated roles in determining which solution provides the highest return on investment for a B2B enterprise.

Total Project Cost
    │
    ├──> Extrusion:  [High Tooling Cost] + [Very Low Unit Cost × High Volume]
    │
    └──> Skiving:    [Near-Zero Tooling] + [Moderate Unit Cost × Any Volume]

3.1 Comparative Summary Table

To provide a clear, high-level overview for procurement managers and engineering leads, the following matrix breaks down the core mechanical, thermal, and financial parameters that separate these two dominant manufacturing methodologies.

The financial trajectory of a product lifecycle usually dictates which technology wins out. Extrusion requires a dedicated steel die to be designed, CNC machined, and hardened before a single production part can be run. This translates to an immediate upfront investment ranging from thousands of dollars and introduces multiple weeks of lead time into the development cycle. However, once that die is operational, it can pump out miles of aluminum profile at incredibly high speeds with minimal labor inputs, pushing the per-unit cost down to rock-bottom levels during mass manufacturing runs. For projects with stable, long-term high volumes, utilizing a customized, durable industrial aluminum heat sink extrusion represents the absolute pinnacle of financial efficiency.

Skiving, on the other hand, requires virtually zero specialized tooling. The process relies on standard, high-performance skiving machinery equipped with universal cutting blades, controlled via digital path programming. This means an engineer can submit a design blueprint, and a prototype can be sliced out of a raw metal billet within hours, completely bypassing tooling lead times and upfront engineering fees. This makes skiving incredibly cost-effective for rapid prototyping, low-volume custom runs, and initial market introductions. However, because each fin must be sliced sequentially, the machine cycle time per part remains relatively constant regardless of whether you are making ten pieces or ten thousand pieces. The labor and machinery operation time mean that for ultra-high-volume mass production, the per-unit cost of a skived component remains higher than an extruded profile.

Material utilization also introduces distinct cost variances. Extrusion is highly efficient with material; the billet is squeezed directly into the final shape, leaving only small amounts of scrap at the absolute ends of the extruded lengths. Skiving requires a pre-squared, highly uniform solid metal billet as its raw feedstock. Squaring and prepping these blocks from larger raw stock can generate additional metal chips and shavings, which increases raw material waste. When working with costly materials like pure copper, this scrap rate must be carefully calculated into the total unit economics to prevent unexpected cost overruns.

Conclusion and Decision Framework

Choosing between skiving and extrusion is ultimately an exercise in matching application performance mandates with lifecycle production volumes. Neither technology is globally superior; rather, each serves as an optimal solution within its specific operational and financial sweet spot. By aligning engineering requirements directly with the manufacturing realities detailed in this guide, organizations can avoid both thermal failure and unnecessary budgetary waste.

To streamline the selection process for engineering and procurement teams, consider the following three-step decision framework:

1. Assess the Thermal Density and Spatial Constraints: If the system features extremely high power densities concentrated in a small volumetric enclosure, or if the application demands the uncompromised thermal conductivity of pure copper, skiving is the technologically necessary path. If the enclosure allows for a larger footprint and relies on standard natural convection or low-pressure fans, extrusion is more than capable of handling the load.

2. Evaluate the Product Lifecycle Volume: For prototyping, proof-of-concept stages, or specialized low-to-medium volume industrial runs (under 500 units), skiving eliminates expensive upfront tooling investments and slashes time-to-market. When production scales into thousands of identical units and the design is locked down, shifting to an optimized durable aluminum heat sink solution via extrusion will unlock massive economies of scale.

3. Analyze Total Project Lead Times: When a project faces immediate, aggressive deadlines, the weeks required to design, test, and validate a custom extrusion die can jeopardize launch schedules. Skiving allows for immediate manufacturing execution directly from a CAD file, giving project managers a valuable time advantage during critical fast-track development phases.

By balancing these mechanical, thermal, and economic variables, B2B buyers can partner with suppliers confidently, ensuring that their chosen heat sink architecture delivers robust, reliable cooling performance while maximizing long-term corporate profitability.
